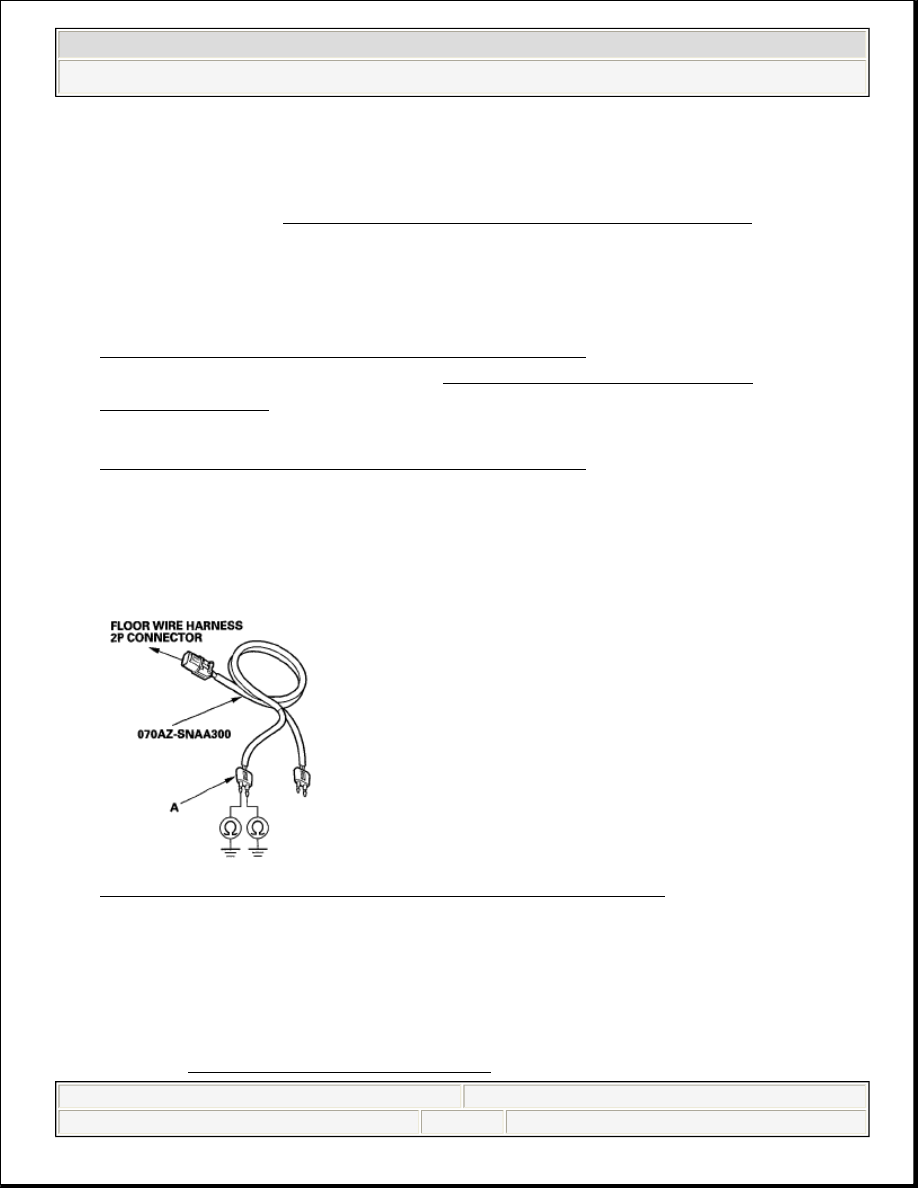

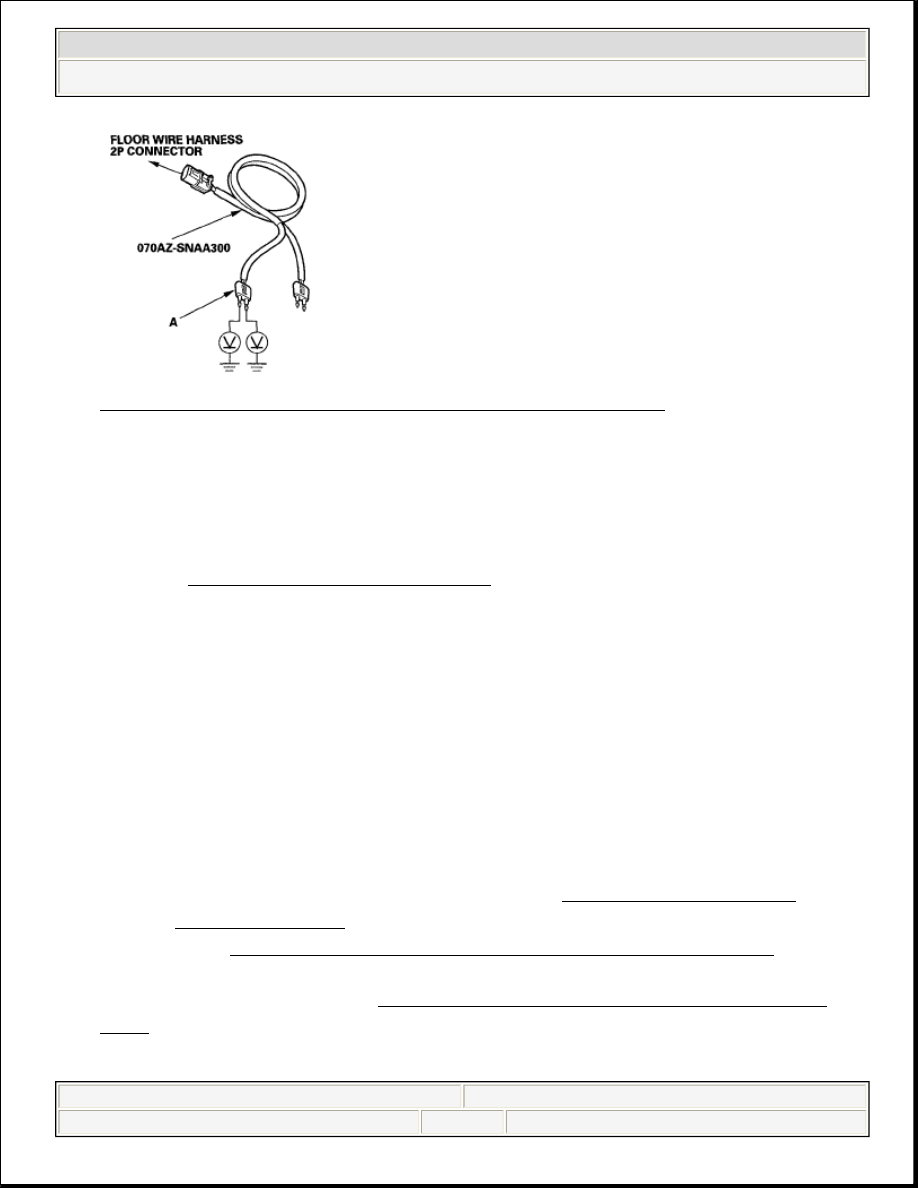

Fig. 142: Identifying Floor Wire Harness 2P Connector And Left Side 5. Connect the SRS inflator simulator (2 ohms, connectors) and simulator lead L to the floor wire harness. 6. Reconnect the negative cable to the battery. Is DTC 33-8x indicated? YES -Go to step 9. NO -Short to power in the left side curtain airbag inflator; replace the left side 9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes. 10. Disconnect both seat belt tensioner 4P connectors (see step 7 DISCONNECTING SYSTEM CONNECTORS) and both seat belt buckle 11. Disconnect the SRS unit connector B (28P) from the SRS unit (see step 9 DISCONNECTING SYSTEM CONNECTORS). 12. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator lead from the floor wire harness 2P connector. 13. Reconnect the negative cable to the battery. (A) and body ground. There should be 0.5 V or less.
