203-24
Connector to Harness Index

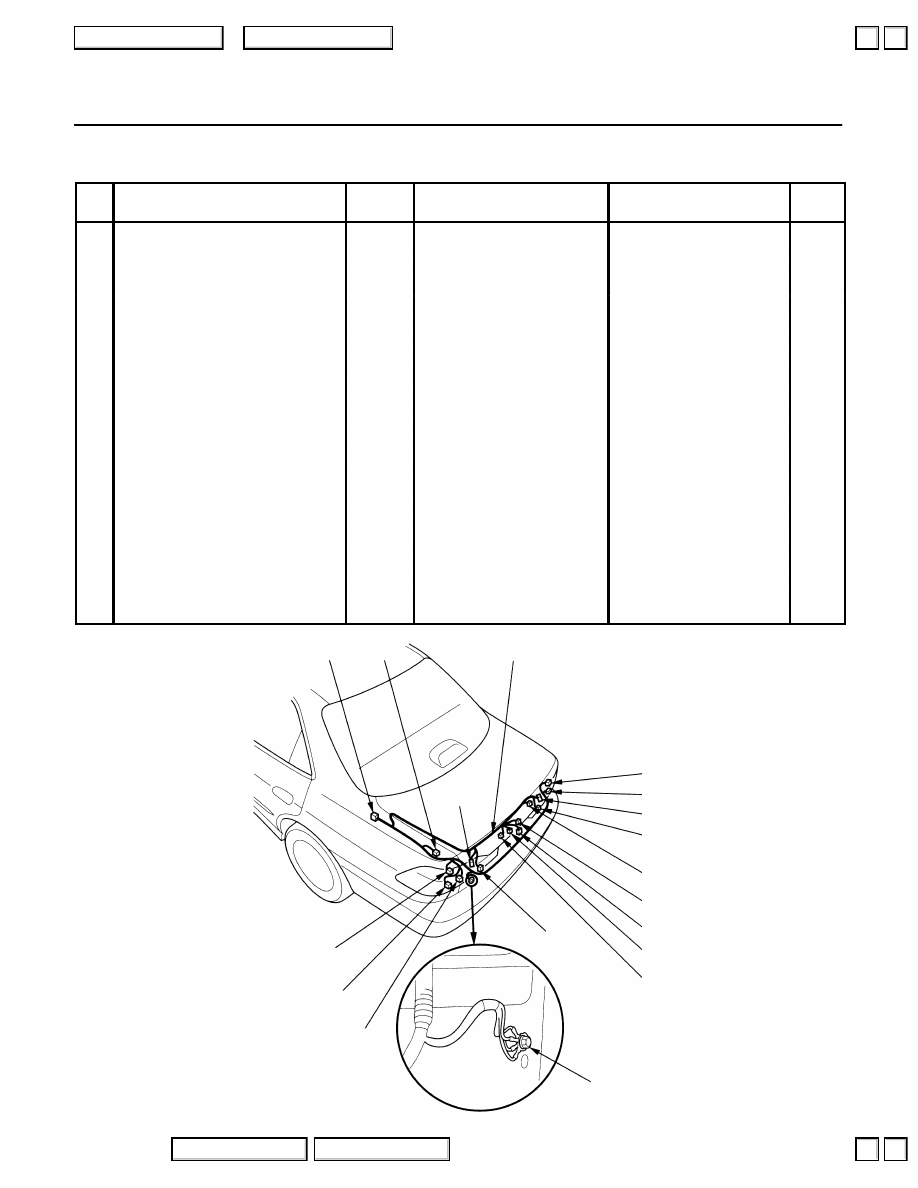

Rear Wire Harness (Sedan)
Ref
Connector or Terminal
Cavities/
Color
Location
Connects to
Notes
1
C554
12-GRY
Left side of trunk
Left side wire harness
2
Trailer lighting connector
6-GRY
Left side of trunk
3
Right brake light/outer taillight
4-GRY
Right side of trunk
’01-’02
3
Right rear turn signal light
2-GRY
Right side of trunk
’98-’00
4
Right rear turn signal light
2-GRY
Right side of trunk
’01-’02
4
Right brake light/outer taillight
4-GRY
Right side of trunk
’98-’00
5
Right back-up light
3-GRY
Right rear of trunk lid
’98-’00
5
Right inner taillight
2-GRY
Right rear of trunk lid
’01-’02
6
Right inner taillight
2-GRY
Right rear of trunk lid
’98-’00
6
Right back-up light
3-GRY
Right rear of trunk lid
’01-’02
7
Trunk lid latch
6-GRY
Center rear of trunk lid
EX
8
Trunk key cylinder switch
2-GRN
Right rear of trunk lid
EX
9
License plate light
2-GRY
Above rear license plate
10
Trunk latch switch
2-BLK
Center rear of trunk lid
DX, LX
11
C601
1-—
Middle of trunk
Security system wire harness
(Optional)
12
Left back-up light
3-GRY
Left rear of trunk lid
’01-’02
12
Left inner taillight
2-GRY
Left rear of trunk lid
’98-’00
13
Left inner taillight
2-GRY
Left rear of trunk lid
’01-’02
13
Left back-up light
3-GRY
Left rear of trunk lid
’98-’00
14
G601
Left side of trunk
Body ground via rear
wire harness
15
Brake light failure sensor
6-GRY
Left rear of trunk
16
Left rear turn signal light
2-GRY
Left side of trunk
’01-’02
16
Left brake light/outer taillight
4-GRY
Left side of trunk
’98-’00
17
Left brake light/outer taillight
4-GRY
Left side of trunk
’01-’02
17
Left rear turn signal light
2-GRY
Left side of trunk
’98-’00

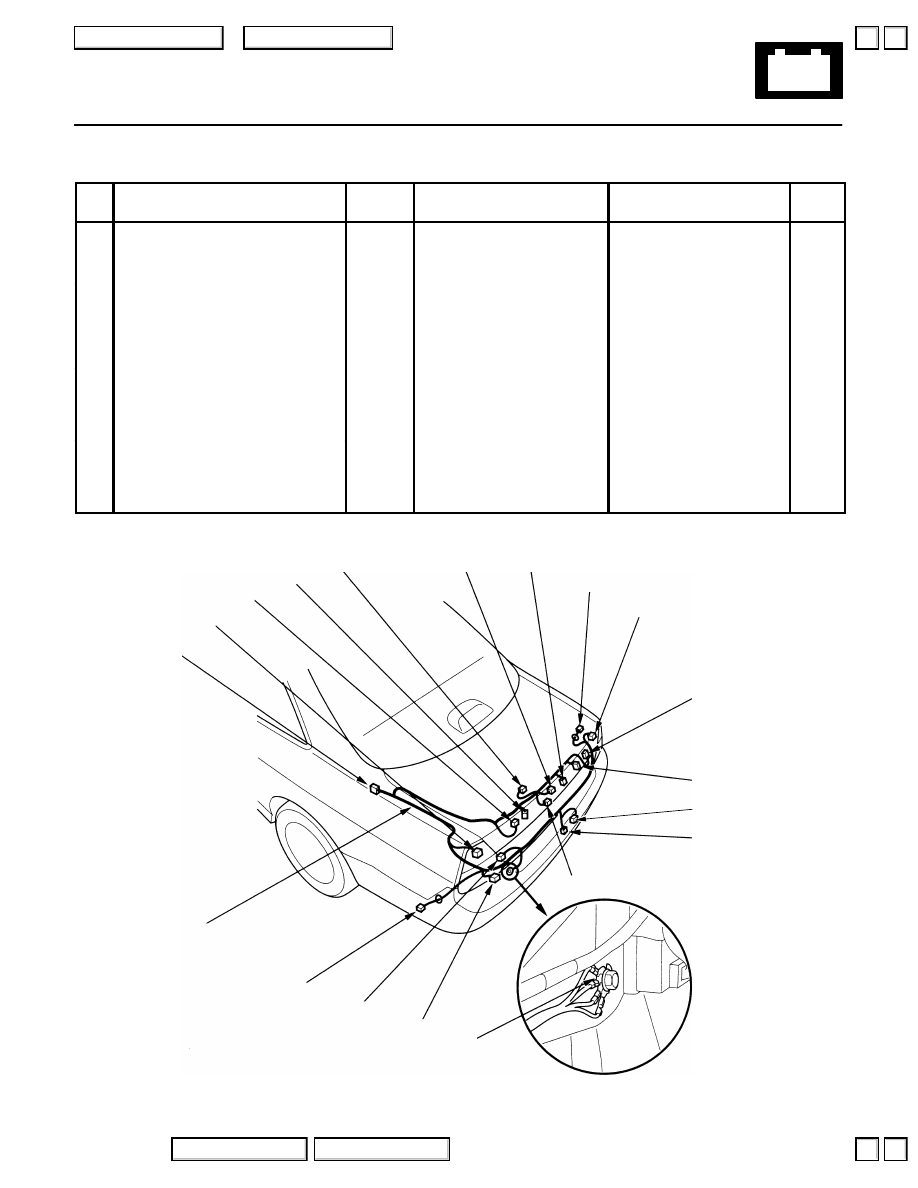

REAR WIRE HARNESS
12
14
15
16
17
1
2
11
10
9
7
8
6
5
4
3
13
