Great Wall Florid. Manual - part 42

GWFLORID Maintenance Manual

166

Connector 11

C24

Connected trunk wire harness 2

Connected trunk wire harness 1

C25

C26

Connected rear defroster "+"

Connected rear defroster "-"

167

Vehicle Body Electronic System

Electrical Wiring Diagram for the Overall Vehicle

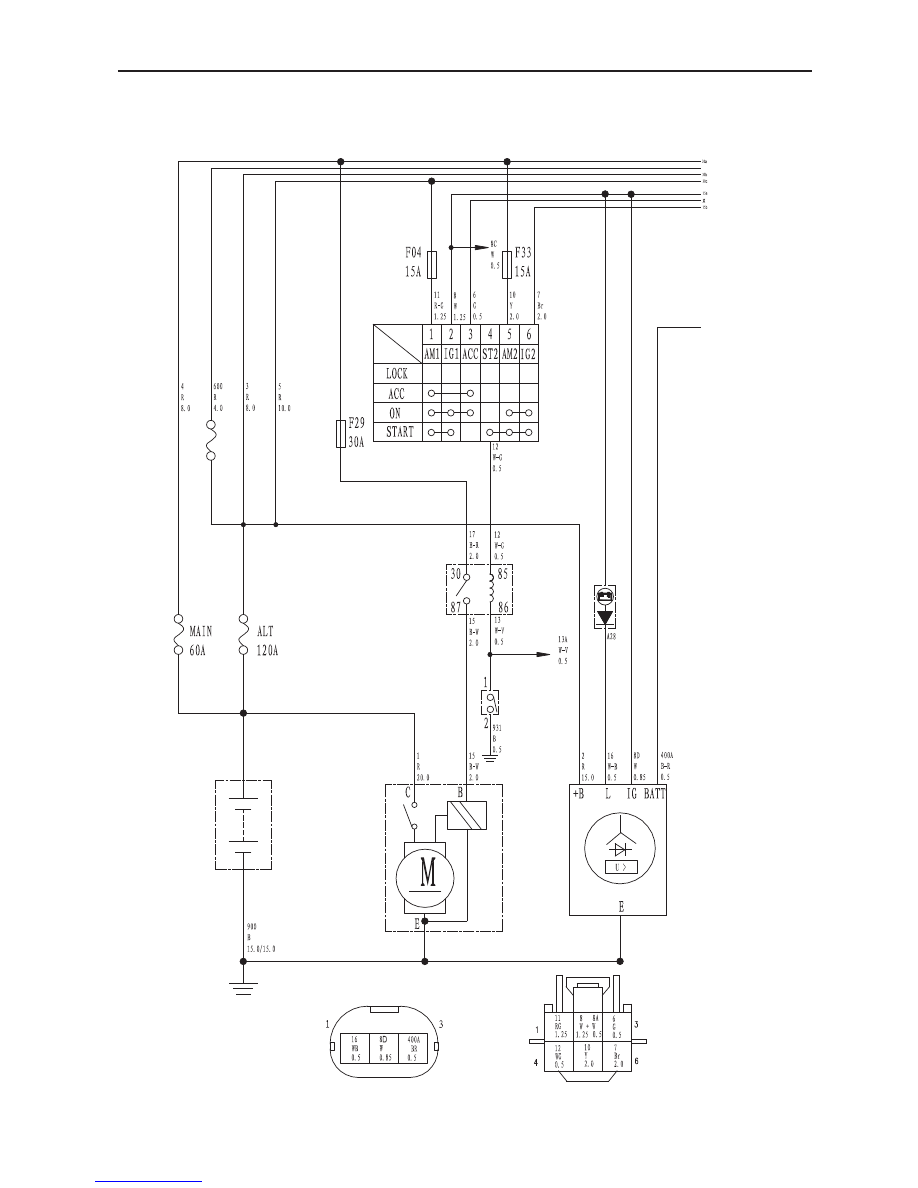

Power & start-up system

Connected ABS #1

Main relay

Engine ECU 74 pin

Shift

position

Pin

position

Theft

deterrent

ECU 6

ABS motor 40A

Ignition switch

Starter relay

Clutch switch

Battery 12V

 60Ah

Generator regulator

Ignition switch

Starter

Generator

GWFLORID Maintenance Manual

168

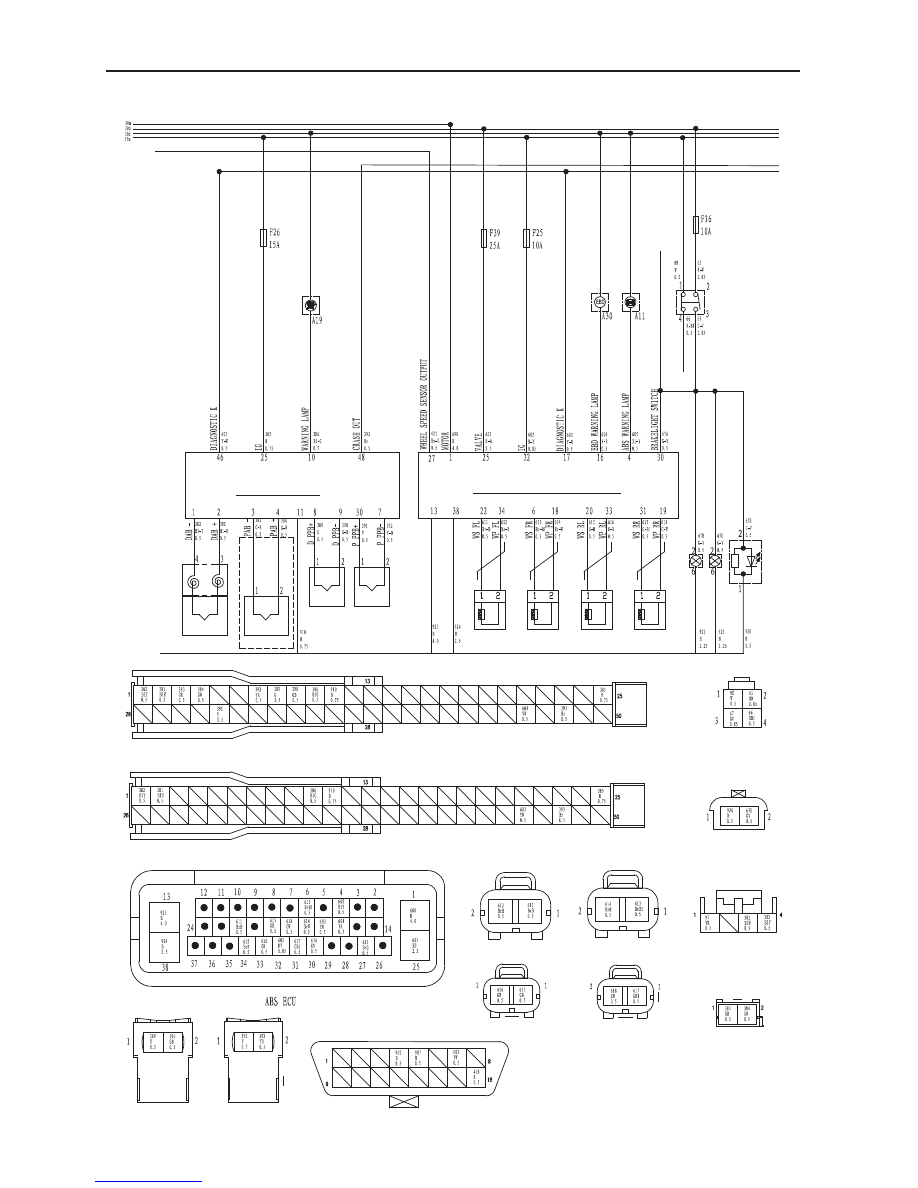

Airbag & ABS



SRS indicator lamp

Engine ECU 72

Central control ECU #17

Airbag ECU housing hole location marks are signs showed on the housing

Airbag ECU (yellow) (Luxury, elite)

Airbag ECU (yellow) (Comfort)

Airbag ECU housing hole location marks are signs showed on the housing

Theft deterrent controller A7

Diagnostic port

Front passenger seat

belt pretensioner

Driver seat belt

pretensioner

Left brake lamp

Right brake lamp

High mounted brake lamp

Driver side airbag

Front passenger side airbag

Front wheel

speed sensor LH

Front wheel

speed sensor LH

Rear wheel

speed sensor LH

Front wheel speed

sensor RH

Rear wheel

speed sensor RH

Front wheel

speed sensor RH

Rear wheel speed

sensor RH

Connected brake

lamp switch

Connected high

mounted brake lamp

Main airbag

Connected front

passenger side airbag

Rear wheel

speed sensor LH

Airbag electric control module

ABS electric control module

Brake lamp switch

to engine ECU 51

to engine ECU 21

Driver seat belt

pretensioner

Front passenger seat

belt pretensioner

Clock spring

169

Vehicle Body Electronic System

Combination meter system

Connected engine ECU #8

Connected engine ECU #59

To light brightness

regulator switch

Parking brake lamp

Parking brake switch

Brake fluid level switch

Oil pressure switch

Driver seat belt switch

Fuel sensor

Speed sensor

Connected combination meter A

Driver seat belt switch

Connected parking brake switch

Fuel pump, fuel sensor

Coolant temperature sensor

Engine speed sensor

Speed sensor

Connected combination meter B

Brake fluid level warning switch

Brake warning lamp

Low oil pressure indicator

Seat belt unfastened indicator

Low fuel alarm

Fuel gauge

High water temperature alarm

Low water temperature alarm

Connected coolant

temperature sensor

Connected central

control ECU #18

IC module

LCD display

Odometer

Tachometer
