GWFLORID Maintenance Manual

58

6.  Remove the input shaft's 5th gear thrust washer.

7.  Remove the steel balls from the 5th gear thrust washer

of the input shaft.

8.  Remove the 4th gear subassembly, 4th gear needle

bearing, 4th gear synchronizer ring, and the 4th gear

bearing washer (4 types of part).

9.  Remove the shaft retainer from the input shaft's No. 2

synchronizer gear hub.

59

Transmission

10. Remove each component of the input shaft's No.2 syn-

chronizer.

11.  Remove the input shaft's 3rd gear synchronizer ring

and the 3rd gear subassembly.

12. Remove the needle bearing from the 3rd gear of input

shaft.

GWFLORID Maintenance Manual

60

Disassembling the Output Shaft Subassembly

Components

Front tapered

roller bearing

Output shaft

Needle bearing

1st gear gear

subassembly

1st gear

synchronizer ring

No. 1 gear sleeve/No. 1

gear hub

No. 1 Slider

Spring expansion ring

Shaft retainer

Retaining ring

Needle bearing

2nd gear synchronizer ring

2nd gear gear subassembly

3rd driven gear

Spacer

4th driven gear

5th driven gear

Shaft retainer

Rear tapered

roller bearing

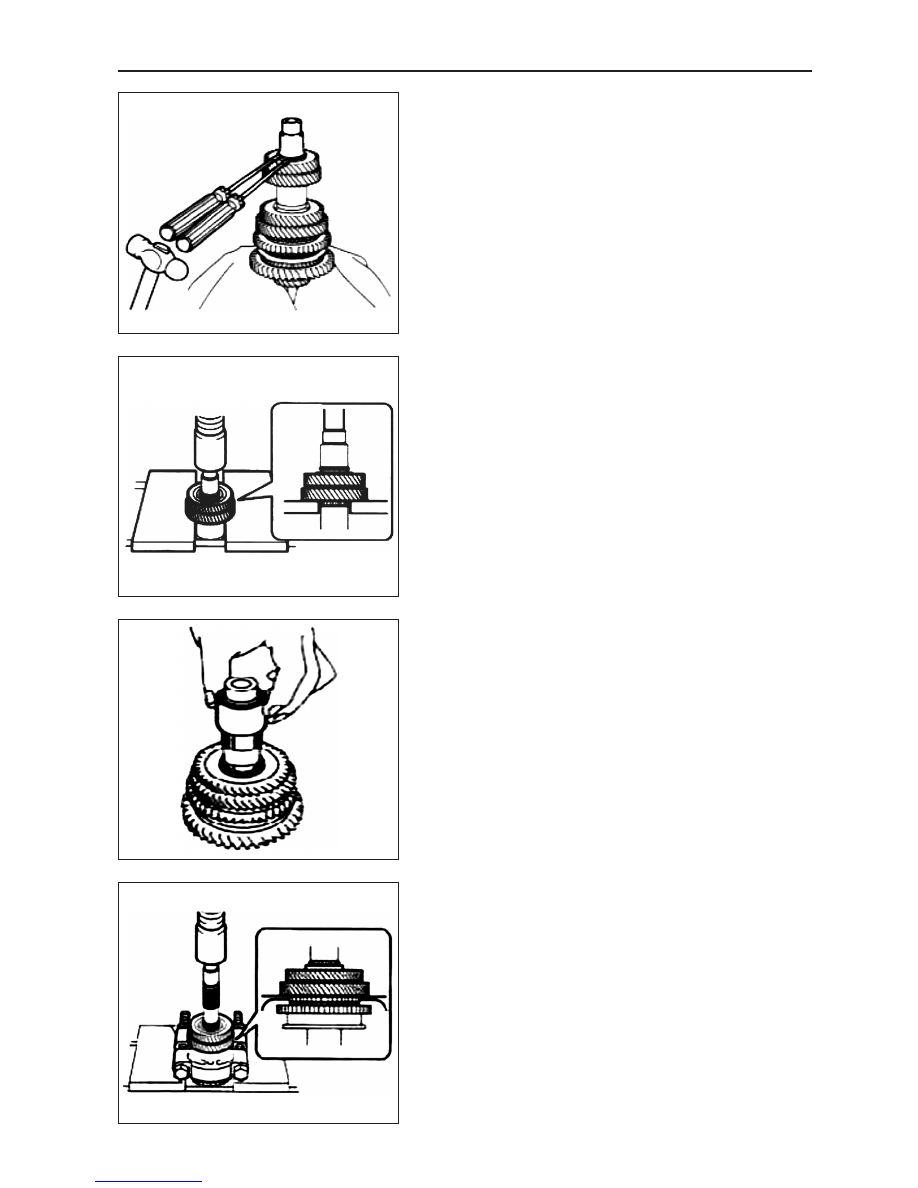

1.  Remove the output shaft's rear tapered roller bearing.

61

Transmission

2.  Remove the output shaft's 5th driven gear shaft retainer.

3.  Remove together the output shaft's 5th and 4th gear

driven gear.

4.  Remove the output shaft spacer.

5.  Remove the output shaft's 3rd driven gear and the 2nd

gear subassembly spacer.
