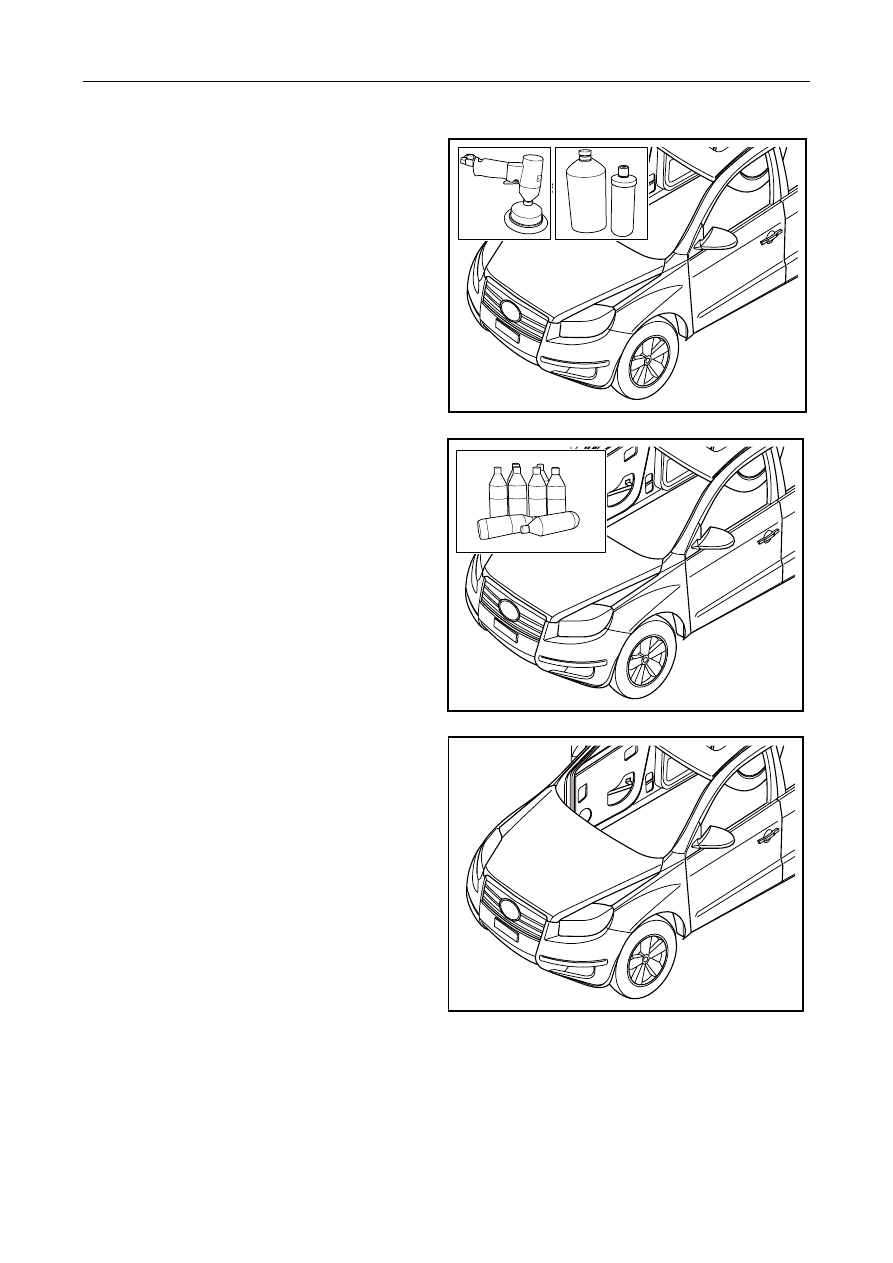

12.13.4.3 Deep Polishing Treatment Process Example

1.  Sand the surface with a piece of 2000# sanding

paper. Press the sanding paper very close to the
surface and sand in circles.



NL12-1003b

2.  Remove the polishing power from the surface.



NL12-1000b

3.  Apply an appropriate amount of polishing wax to

the surface and adjust the polishing machine
speed.



NL12-1005b



2843

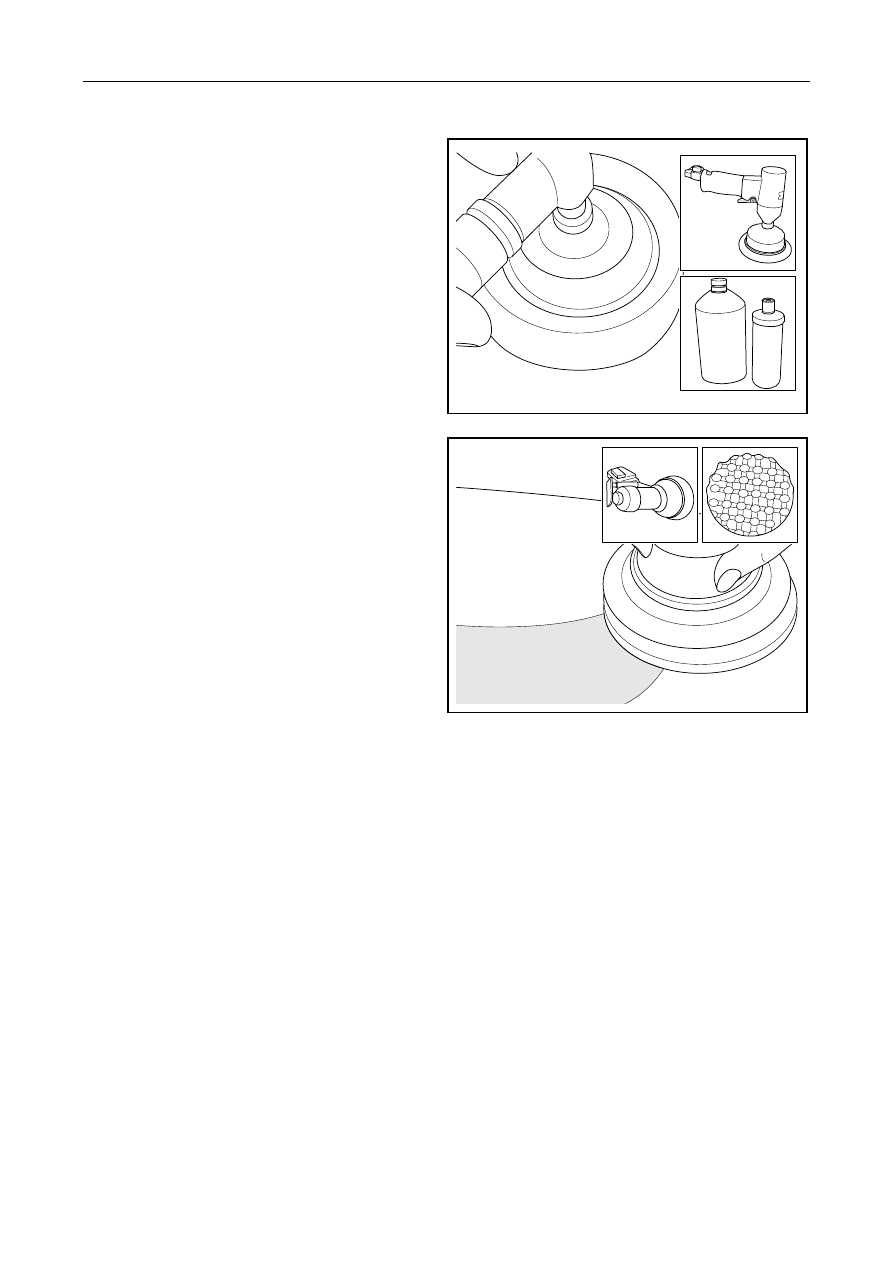

4.  Put the wool ball onto the surface, turn on the

machine with a speed at 2,500-3,000 r/ min.

Notes:

During operation, keep the machine stable and move
gently. Do not polish too long. Keep the polishing
time as short as possible (3-5s), and the polishing area
as small as possible.



NL12-1004b

5.  Wet sufficiently the sponge and remove

excessive moisture by compressing it. Apply a
small amount of polishing wax to the surface to
be polished and start the engine to a RPM of 2,
500-3,000r/min after pressing the    sponge to the
surface to be polished.    Then, slightly press for
3-5s for polishing treatment.

Notes:

During operation, keep the machine stable and move
gently. Do not operate too long to avoid overheating,
as the paint will be damaged by the heat.



NL12-1002b



2844




12.13.4.4 Spray Paint Process of Rigid Surface

Take the fender for example to describe the local
spray finishing (painting make-up) process

Notes:

All paint repairs for rigid surface must comply with
Geely standards.    Confirm the repair area and select
the repair range, such as the local repair, the whole
repair and the whole vehicle repair.

If the damages are caused due to the collision, the
vehicle will be repaired by metal plate process and
then the corresponding repair will be carried out or
painting will be performed after the replacement of
the parts.

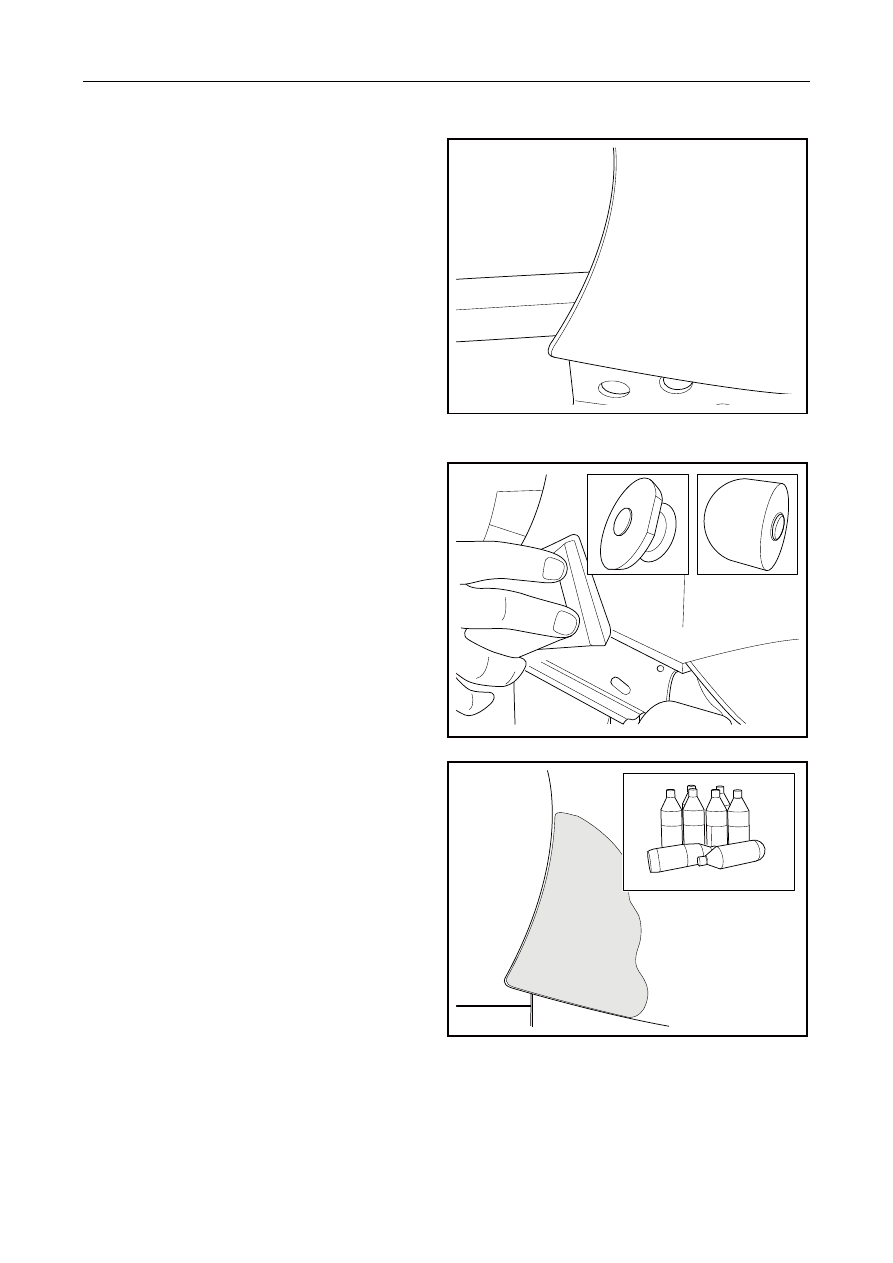

1.  For serious fender scratches, use the partial paint

spray (repair) process.

NL12-1006b

2.  Sand the damaged surface with a piece of P500#

wet sanding paper in circles.



NL12-1007b

3 .    Clean the surface with the degreasing agents after

polishing.



NL12-1008b



2845

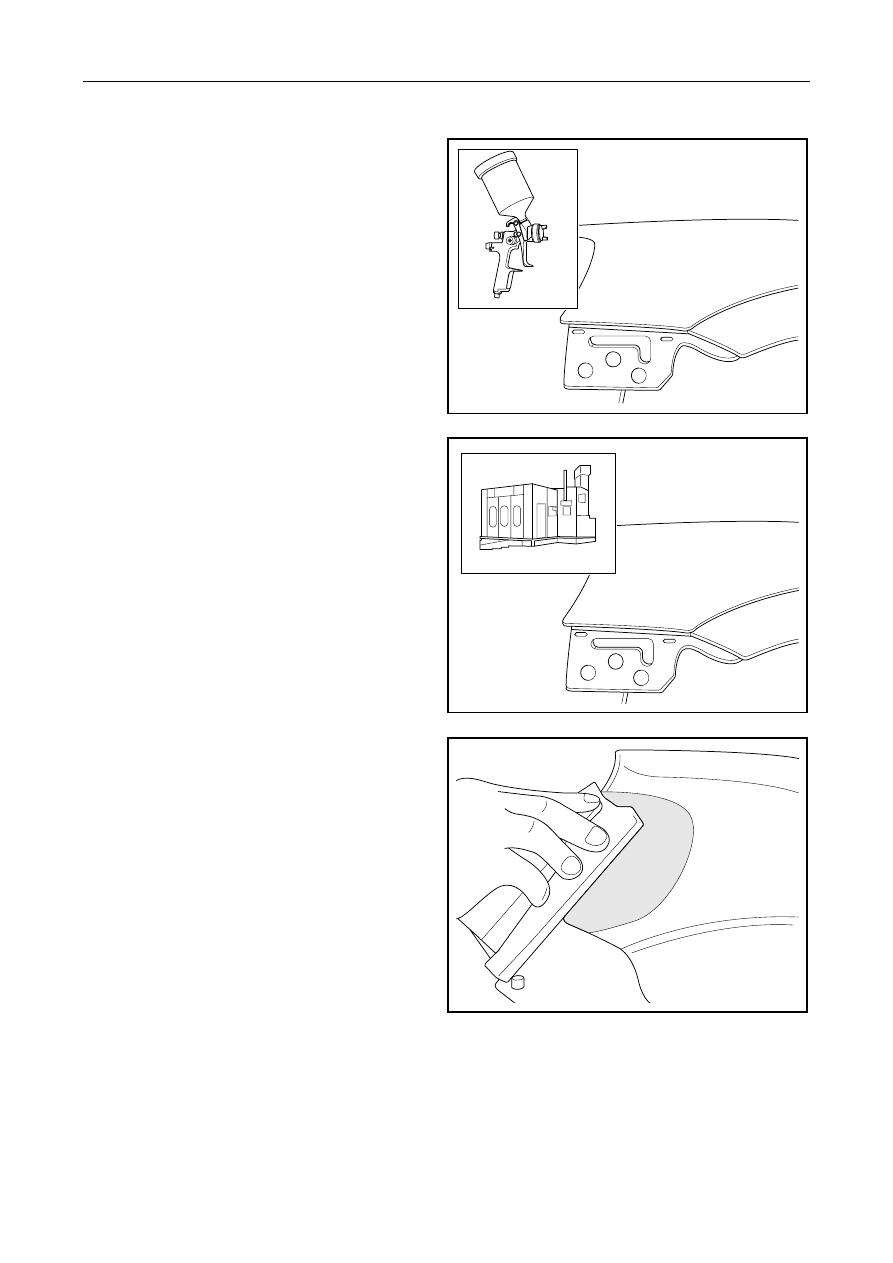

4.  For primer painting, control the painting area.

Gradually paint the edges. Do not overlap the
paint.



NL12-1009b

5.  Leave the surface dry 4-5 min and then heat to

dry 20-30 min.

Paint room temperature 70-80℃ (158-176 ºF)



NL12-1010b

6.  After drying, sand the surface with a piece of

P800-1,000# sanding paper.



NL12-1011b

2846
