(a)  Turn on left rear glass lifter switch to lift left

rear glass.

(b)  Measure voltage of left rear side glass lift

motor harness connector DR23 terminal.

Standard Voltage: 11-14 V

Is voltage the Standard Value?

DR23左后侧玻璃升降电机线束连接器

A

B

NL11-3230b











3

Inspect the downshift voltage of the left rear side glass lifting
motor.

(a)  Turn on left rear glass lifter switch to lower

left rear glass.

(b)  Measure voltage of left rear side glass lift

motor harness connector DR23 terminal

Standard Voltage: 11-14 V

Is voltage the Standard Value?

DR23左后侧玻璃升降电机线束连接器

A

B

NL11-3231b











4

Inspect the communication of the left rear glass lifting motor
and the BCM.

No

Go to step 4

Yes

Yes

Go to step 5

No

DR23 left rear side glass lifting motor harness

connector



DR23Left rear side glass lifting motor harness

connector



1939




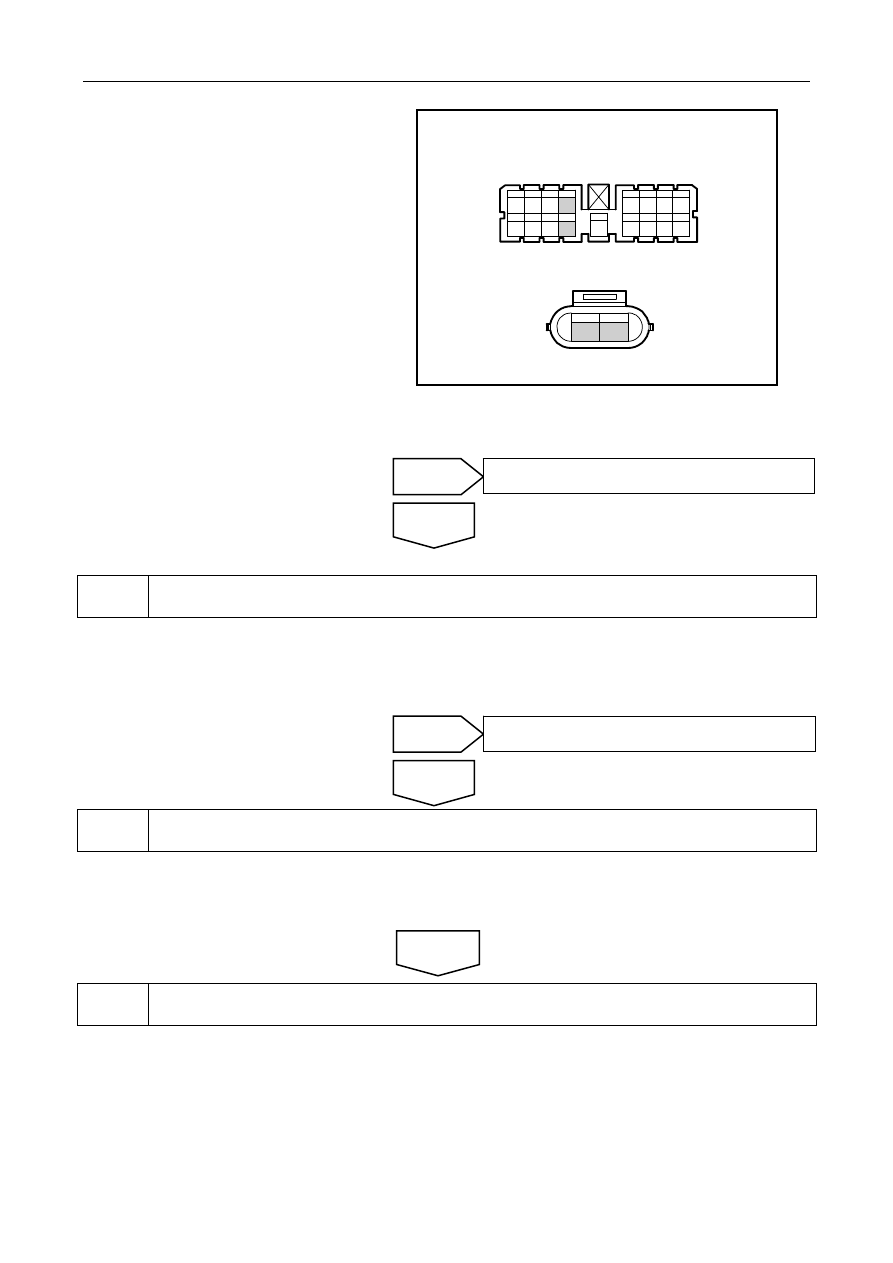

(a)  Turn the ignition switch to OFF position.

(b)  Disconnect left front glass lift motor harness

connector DR23.

(c)  Disconnect BCM harness connector IP47.

(d)  Measure left rear glass lifter motor wire

harness connector DR23 terminal A and
BCM wire harness connector IP47 terminal
4.

(e)  Measure resistance between left rear glass

lifter motor wire harness connector DR23
terminal B and BCM wire harness connector
IP47 terminal 12.

Standard Resistance: Less than 1 Ω

Is the resistance at a specified value?

DR23左后侧玻璃升降电机线束连接器

IP47BCM线束连接器

A

B

5 6 7 8

9 10 11 12

13

14 15 16 17

1

2 3 4

NL11-3232b











5

Replace left rear side glass lift motor,

(a)  Replace left rear side glass lift motor; refer to

11.4.8.11 rear door glass lift motor replacement

.

(b)  Clear DTC, and read DTC again

Whether fault code exists or not ,







6

Replace the BCM

(a)  Replace BCM and refer to

Replacement of BCM in 11.8.8.1

.

Confirm the completion of repair.





7

The system is normal.



Next

Yes

Go to step 6

No

No

The system is normal.

Yes

IP47BCMharness connector



DR23Left rear side glass lifting motor harness

connector



1940




10.2.4.18 DTC B1222

Fault diagnosis code Descriptions

B1222

Open circuit incurs on right rear electric window driving.

Circuit diagram:

12

10 IP47

2 IP47

B

M

DR23

A DR23

左后门升降电机

右后门升降电机

4 IP47

IP47

B

M

DR33

A DR33

RL-WINDOW

DOWN

RL-WINDOW UP

BCM

RR-WINDOW

DOWN

RR-WINDOW-UP

NL11-3229b



Diagnostic Steps:

1

Inspect whether there is any DTC Code other than B1222.

(a)  Inspect whether there is any DTC Code other than B1222.







2

Inspect the upshift voltage of the right rear side glass lifting
motor.

Yes

Go to

 DTC list in 10.2.4.2

 and

repair according to trouble
codes.

No

Left rear door

lifting motor

Right reardoor

lifting motor

1941




(a)  Turn on right rear glass lifter switch to lift

right rear glass.

(b)  Measure voltage of right rear side glass lift

motor harness connector DR33 terminal.

Standard Voltage: 11-14 V

Is voltage the Standard Value?

DR33右后侧玻璃升降电机线束连接器

A

B

NL11-3233b











3

Inspect the down shift voltage of the right rear side glass lifting
motor.

(a)  Turn on right rear glass lifter switch to

lower right rear glass.

(b)  Measure voltage of right rear side glass lift

motor harness connector DR33 terminal.

Standard Voltage: 11-14 V

Is voltage the Standard Value?

DR33右后侧玻璃升降电机线束连接器

A

B

NL11-3234b











4

Inspect the communication of the left rear glass lifting motor and the BCM.



No

Go to step 4

Yes

Yes

Go to step 5

No

DR33Right rearside glass lifting motor harness

connector



DR33Right rearside glass lifting motor harness

connector



1942
