4.

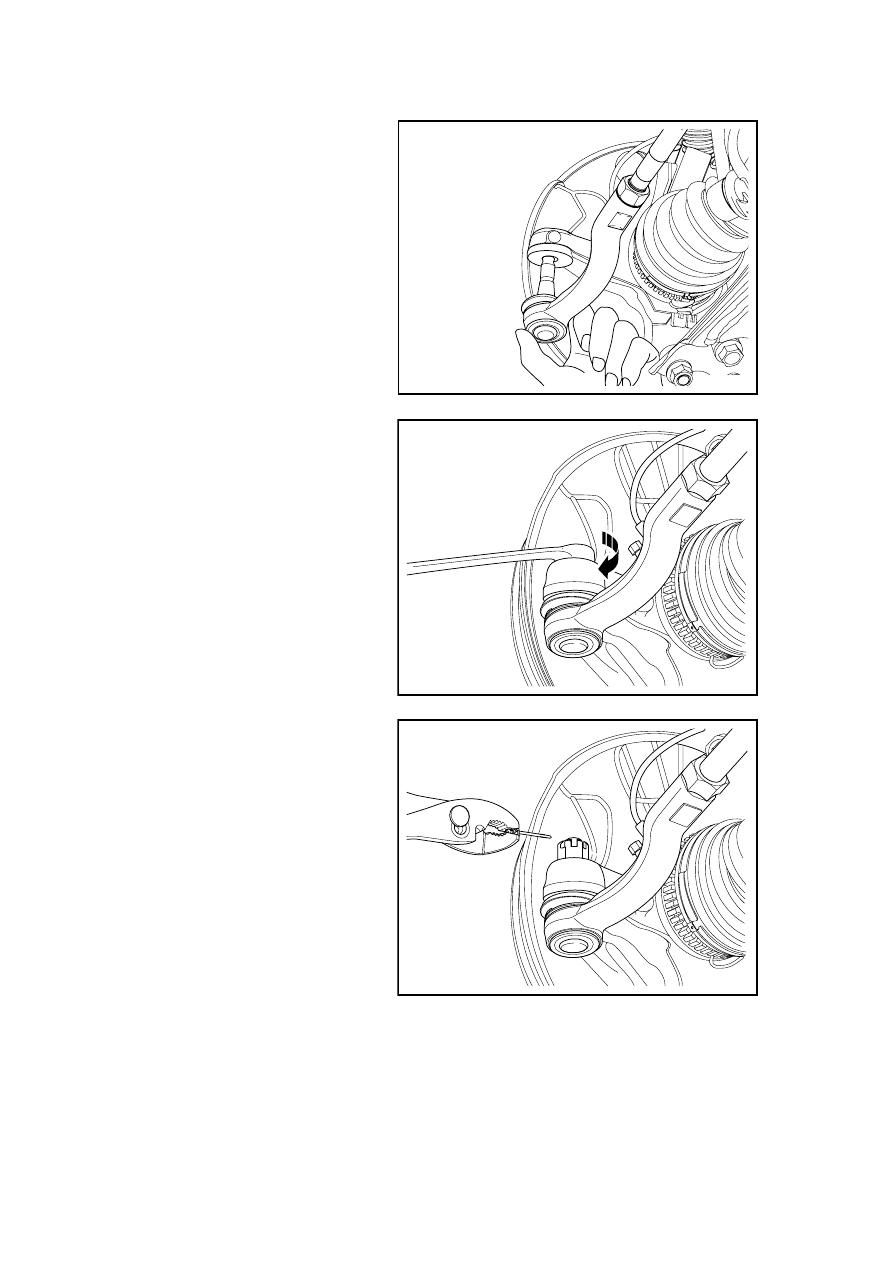

Install steering gear tie rod ball
head.

NL05-0029b

5.

Install and tighten the steering
engine tie rod ball nut.

Torque:33 Nm (Metric) 24.4 lb-ft
(English system)

NL05-0030b

6.

Install the locking pin for the
steering gear tie rod ball nut.

NL05-0031b

1519

7.

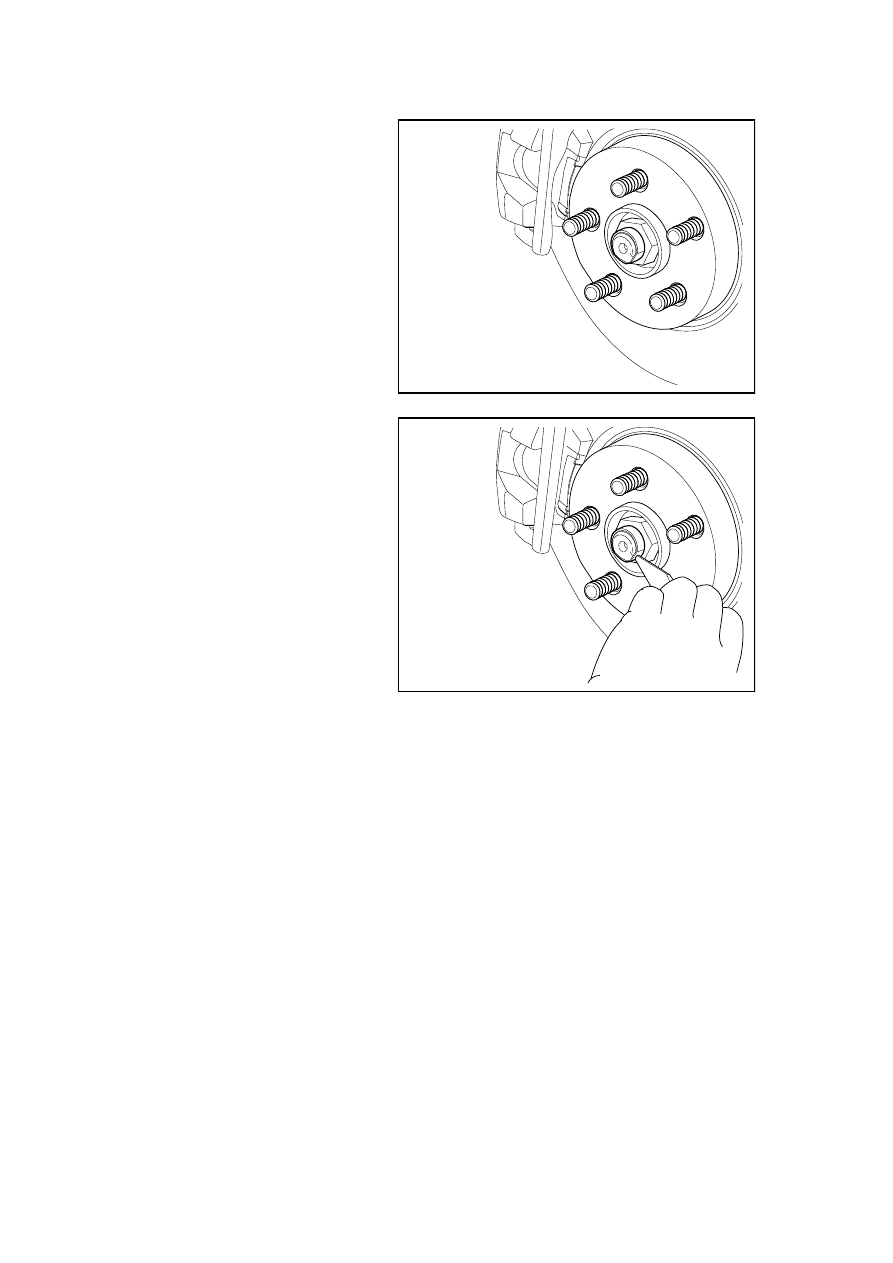

Install and tighten the external
locking nut for the drive shaft.

Torque: 125Nm(Metric) 92.5lb-ft
(English system)

NL05-0032b

8.

Lock the self-lock device for the
external locking nut of the drive
shaft with a punch.

9. Install

the

tires.

10.  Fasten tire bolt.

11.  Connect the battery negative

cable.

NL05-0033b

1520



5.3.5 Special tools and equipment

5.3.5.1 Special tools list

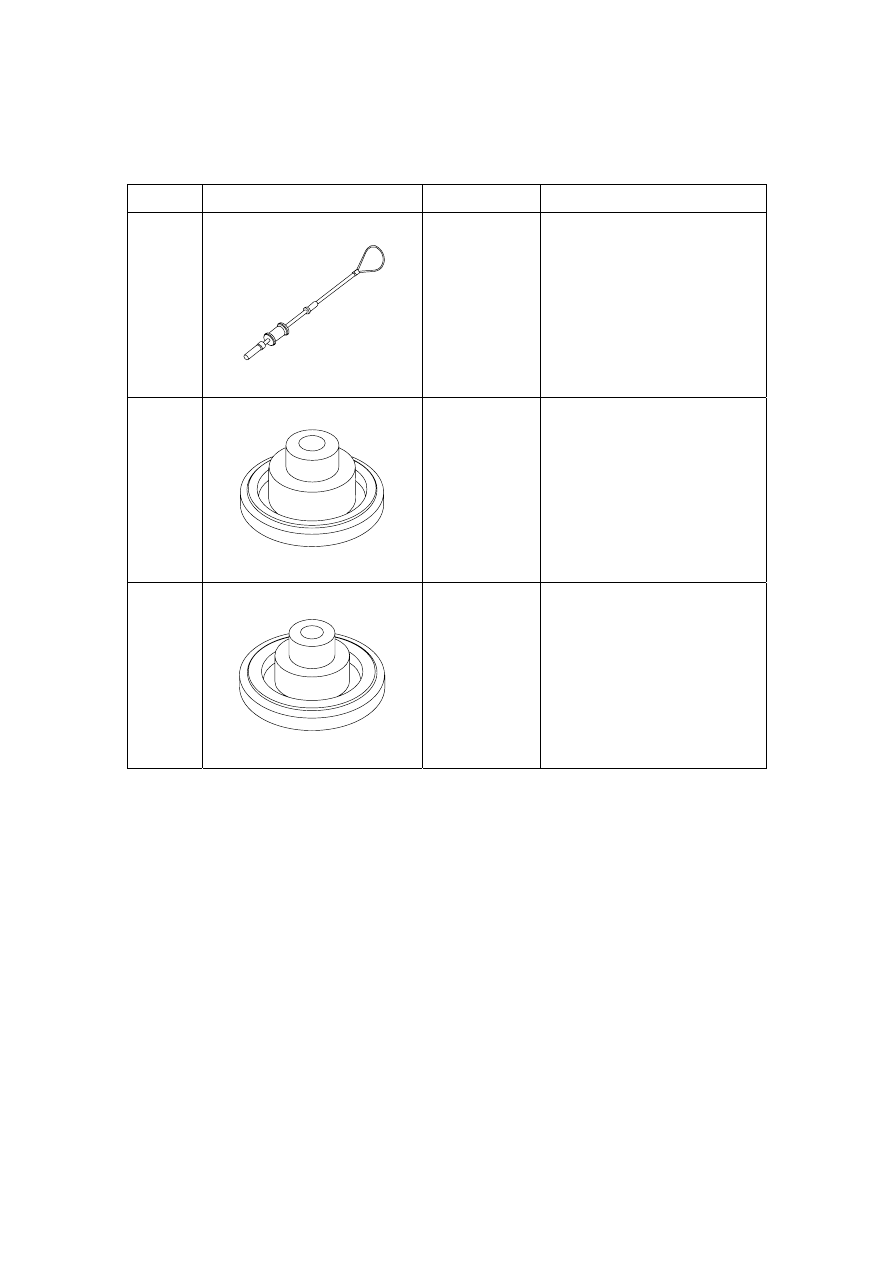

S/N Illustration  Tool

No.  Description

1

NL01-2026b



GL401-002

Tool for dismantling inner ball

joint of drive shaft

2

NL01-2009b



GL201-009

Tool for installing and removing

differential clutch housing oil

seal

3

NL01-2010b



GL201-010

Tool for installing and removing

differential transmission housing

oil seal



1521
