5.1 Warning and precaution

5.1.1 Warning and precaution

Assistant driving warning

Warning!

When the technician checks the fault part to be repaired, the assistant shall drive the vehicle;
otherwise, it may cause personal injury.

Warning for battery disconnection

Warning!

Before repairing any electrical component, the ignition key must be in the OFF or LOCK position
and all electrical loads must be OFF (off), unless otherwise stated in the operating procedures; if
tools or equipment are easy to contact with exposed electrical terminals, the negative battery cable
must also be disconnected; and it may result in personal injury and/or damage to the vehicle or
vehicle parts in the case of violating these safety instructions.

Warning for road test

Warning!

Warning:Test a vehicle on the roads under safe conditions and obey all traffic laws. Do not
attempt any maneuvers that could jeopardize vehicle control. Failure to adhere to these
precautions could lead to serious personal injury and vehicle damage.

Precaution for engine lifting

Notes:

Regardless of hoisting or supporting the engine due to any reason, do not support the jack below
the oil sump, any stamping parts or crankshaft belt pulley. The part may be damaged by lifting the
engine in an incorrect mode.

1504



5.2 Differential

5.2.1 Specifications

5.2.1.1 Fastener specifications

Torque:

Fastener Name

Model

Metric (N·m)

English

system (lb-ft)

Fixing bolts of main reducer driven gear

M10×20

47-57

35-42

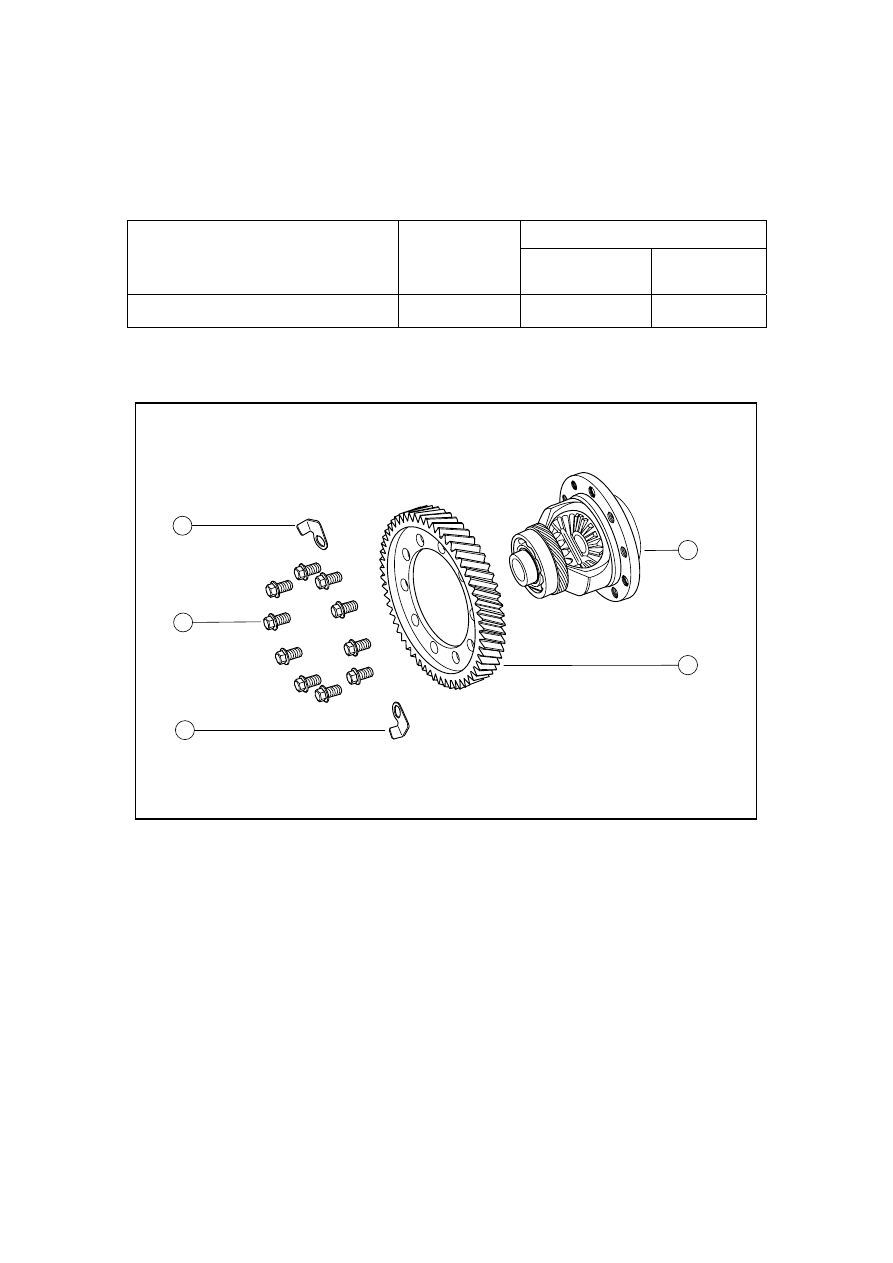

5.2.2 Disassemble drawings

5.2.2.1 Disassemble drawings

1

1

2

3

4

NL05-2001b





1.

Planetary gear shaft lock piece

2.

Fixing bolt of driven gear and planet
carrier.

3.

Planetary gear carrier

4. Driven

gear

1505



5.2.3 Diagnostic information and procedures

5.2.3.1 Fault symptom table

Symptoms Suspected

parts

Referance



Abnormal sound

Planet gear and

Planet gear shaft

3.3.7.6 Abnormal sound during driving
condition and 5.2.4.1 disassembly and
assembly of differential



1506
