(a)  Connect fault diagnosis tester to the diagnostic interface.

(b)  Turn ignition switch to ON position.

(c)  Clear DTC code.

(d)  Start and run the engine at idle speed to warm up the engine for at least 5 min.

(e)  Road test the vehicle for at least 10 min.

(f)  Read control system DTC code again to confirm that the system has no DTC code.



Step 10

Troubleshooting

5. Maintenance

guide

Refer to 2.12.8.5 “Replacement of Fuel Injectors” to replace the fuel injectors.

No

Refer to 2.12.7.3 Intermittent Fault
Inspection for intermittent fault.

Yes

803

2.12.7.31 DTC P0267 P0268

1. DTC

description:

DTC  P0267

Cylinder No.3 Fuel Injector Circuit Low Voltage Fault



DTC  P0268

Cylinder No.3 Fuel Injector Circuit High Voltage Fault

Fuel injectors operating voltage is provided by The Main Relay controlled by ECM. Battery
voltage passes through the main relay terminal No.3 to all fuel injector wiring harness connectors
terminal No.A. ECM controls Cylinder No.3 fuel injector internal ground circuit through ECM
harness connector EN01 terminal No.7. ECM monitors all fuel injector driver circuits status, if
ECM detects driving circuit status corresponding voltage is incorrect, ECM will set a fuel injector
control circuit fault DTC code.

2.  Conditions For Setting DTC and The Fault Location:

DTC Code

DTC
Detection
Strategy

Conditions For Setting The
DTC (Control Strategy)

Fault Locations

P0267

Hardware
Circuit
Inspection

Injector Signal Circuit Open
or Short To Ground

P0268

Hardware
Circuit
Inspection

Injector Signal Circuit Short
To Power Supply

1. Sensor

Circuit

2. Sensor

3. ECM.

3. Circuit

sketch

NL02-2087b

44

EN01

ECM

BAT

15

A

E

F2

1

MPR

86

87

30

85

发动机主继电器

7

EN01

A

EN13

B

EN13

INJB

3缸燃油喷射器



Engine
main relay

3rd cylinderfuel

injector

804

4. Diagnostic

Steps:

Note: Before carrying out this diagnosis step, observe the data list on fault diagnosis tester and
analyze the accuracy of the data, as these will help with quick diagnosis.

Step 1



Initial Inspection

(a)  Inspect the fuel injector harness connector for damage, poor connection, aging or signs of

loosening



Step 2



Measure the fuel injector resistance.

(a)  Disconnect the fuel injector harness connector EN13.

(b)  Measure resistance between the two fuel injector terminals.

Standard Resistance

11.4-12.6Ωwith 20℃(68

(c)  Connect the fuel injector harness connector EN13.





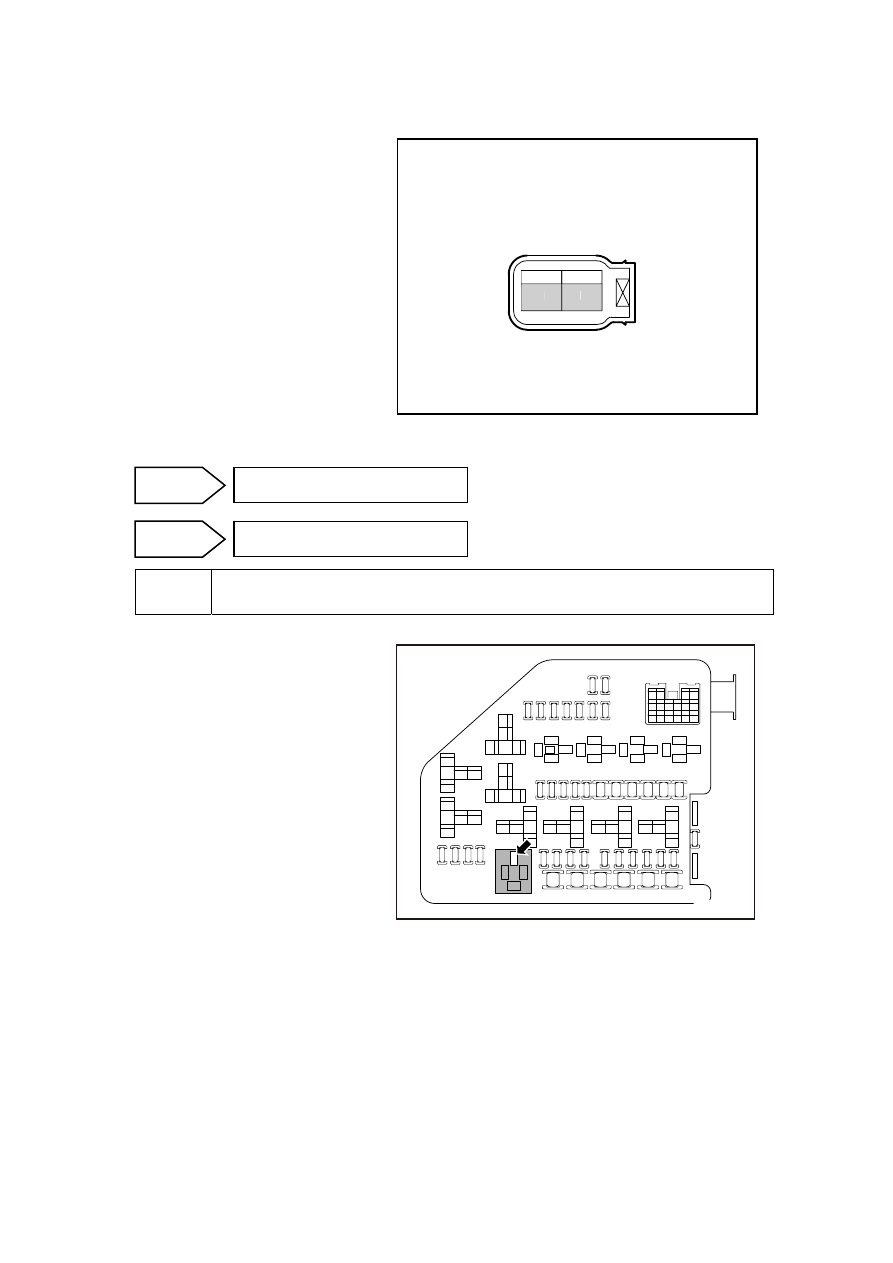

(a)  Rotated ignition switch to OFF

position .

(b) Disconnect cylinder No.3 fuel

injector harness connector EN13.

(c)  Rotated ignition switch to ON

position .

(d)

Measure voltage between
cylinder No.3 fuel injector
harness connector EN13 No.1
terminal and a reliable ground.

Standard Voltage: 11-14V

(e) Connect cylinder No.3 fuel

injector harness connector EN13.

NL02-2088b

A

B

EN13 3缸燃油喷射器线束连接器

A



Step 4



Inspect the fuel injector control circuit.

Measure Fuel Injectors Working power supply

No

Go to step 5

Yes

No

Refer to 2.2.8.2 “Replacement of Fuel
Injectors” to replace the fuel injectors

Yes

Next

EN13 3rd cylinderfuel injector

805



(a)  Rotated ignition switch to OFF

position .

(b) Disconnect cylinder No.3 fuel

injector harness connector EN13.

(c)  Connect a light-emitting diodes

test lamp to the fuel injector
wiring harness connector EN13
terminal No.A and B.

(d) Start

the

engine.

(e)  Observe whether test lamp is

flashing.

NL02-2089b

A

B

EN13 3缸燃油喷射器线束连接器

A

B

Is test lamp flashing as normal?



Step 5



Inspect and repair cylinder No.3 fuel injector power circuit.



(a)  Rotated ignition switch to OFF

position .

(b) Disconnect the fuel injector

harness connector EN13.

(c)  Dismantle the engine main relay.

(d) Measure  resistance  between

cylinder No.3 fuel injector wiring
harness connector EN13 terminal
No.B and engine main relay
terminal No.30.

(e) Measure  resistance  between

cylinder No.3 fuel injector wiring
harness connector EN13 terminal
No.B and a reliable ground.

ER03

85

86

87

30

30

87

86

85

ER05

30

87

86

85

ER06

30

87

87a

86

85

ER11

ER08

ER0

9

85

86

87

30

ER10

2

1

5

3

2

1

5

3

2

1

5

3

ER04

ER02

2

1

5

3

2

1

5

3

ER01

ER07

2

1

5

3

1

2

3

4

11

12

13

14

15

16

5

6

7

8

9

10

EF0

8

EF0

7

EF2

7

EF2

6

EF2

2

EF2

9

EF0

3

EF0

6

EF0

9

EF2

5

EF1

7

EF1

6

EF1

5

EF3

5

EF2

1

EF

1

4

EF

0

1

EF

0

2

EF

0

4

EF

1

0

EF

1

1

EF

1

8

EF

2

4

NL02-0045c

Go to step 6

Go to step 7

No

Yes

EN13 3rd cylinderfuel injector

806
