4.  Abnormal Fuel Pressure

5.  Abnormal Injector Working

System

6.  Mixture Too Thick

7.  Mixture Too Thin

Refer to 2.12.7.26 DTC P0171 P0172
P1167 P1171 P2187 P2188

8.  Knock Sensor (KS) system

ignition delay is too large

9.  Spark Plug: Incorrect thermal

value, damp, crack, incorrect
gap, excessive erosion,
excessive carbon residue,
contaminated by fuel

10.  Spark Plug Wire Damage

11. Ignition Coil Damage

Refer to 2.10.7 Diagnostic
Information and Procedures in the
2.10 Ignition System

12.  Crankshaft Position Sensor

Refer to 2.12.7.35 DTC P0335 P0336

13.  Too Much Oil in Combustion

Chamber or Valve Seals
Leakage

14. Cylinder compression pressure

is incorrect

15. Valve Catching or Leakage,

Broken Valve Spring, Incorrect
Valve Timing

16. Too much carbon residue in

combustion chamber

17. Intelligent  Variable  Valve

Timing System

Refer to 2.6.7 Diagnostic Information
and Procedures in the 2.6 Mechanical
System

than expected.
Half- press the
acceleration
pedal, almost no
acceleration or
no acceleration at
all.

18. Exhaust Blocked: Three-Way

Catalytic Converter Blocked,
Muffler Internal Damage

Refer to 2.7.5 Diagnostic Information
and Procedures in the 2.7 Exhaust
System

1. Battery

2. Starter

3. Start

Relay

4. Ignition

Switch

5. BCM

Refer to 2.11.7.4 Engine Unable to
Start in 2.11 Start and Charging
System

Engine does not
run.

Fault Definition:
When the
ignition switch is
in the ST
position, the
engine crankshaft
is not rotating.

6. Engine Anti-theft Locking

System

Refer to 2.5.7 Diagnostic Information
and Procedures in 2.5 Engine
Anti-theft System.

687

1.  ECM power supply circuit

Refer to 2.12.7.43 DTC P0562 P0563

2.  Crankshaft Position Sensor

Refer to 2.12.7.35 DTC P0335 P0336

3.  Camshaft Position Sensor

Refer to2.12.7.36 DTC P0340 P0341

4. Ignition

System

2.10.7 Diagnostic Information and
Procedures in the 2.10 Ignition
System

5 .  Fuel Pump Control Circuit

6.  Fuel Injector Working Circuit

Refer to 2.3.7 Diagnostic Information
and Procedures in the 2.3 Fuel
System

The engine is
unable to start,
without

Vehicle signs

Fault Definition:
When ignition
switch in the ST
position, the
engine crankshaft
rotates without
sign of the
vehicle starting.

7.ECM

See 2.12.8.1 Replacement of Engine
Control Module.



688

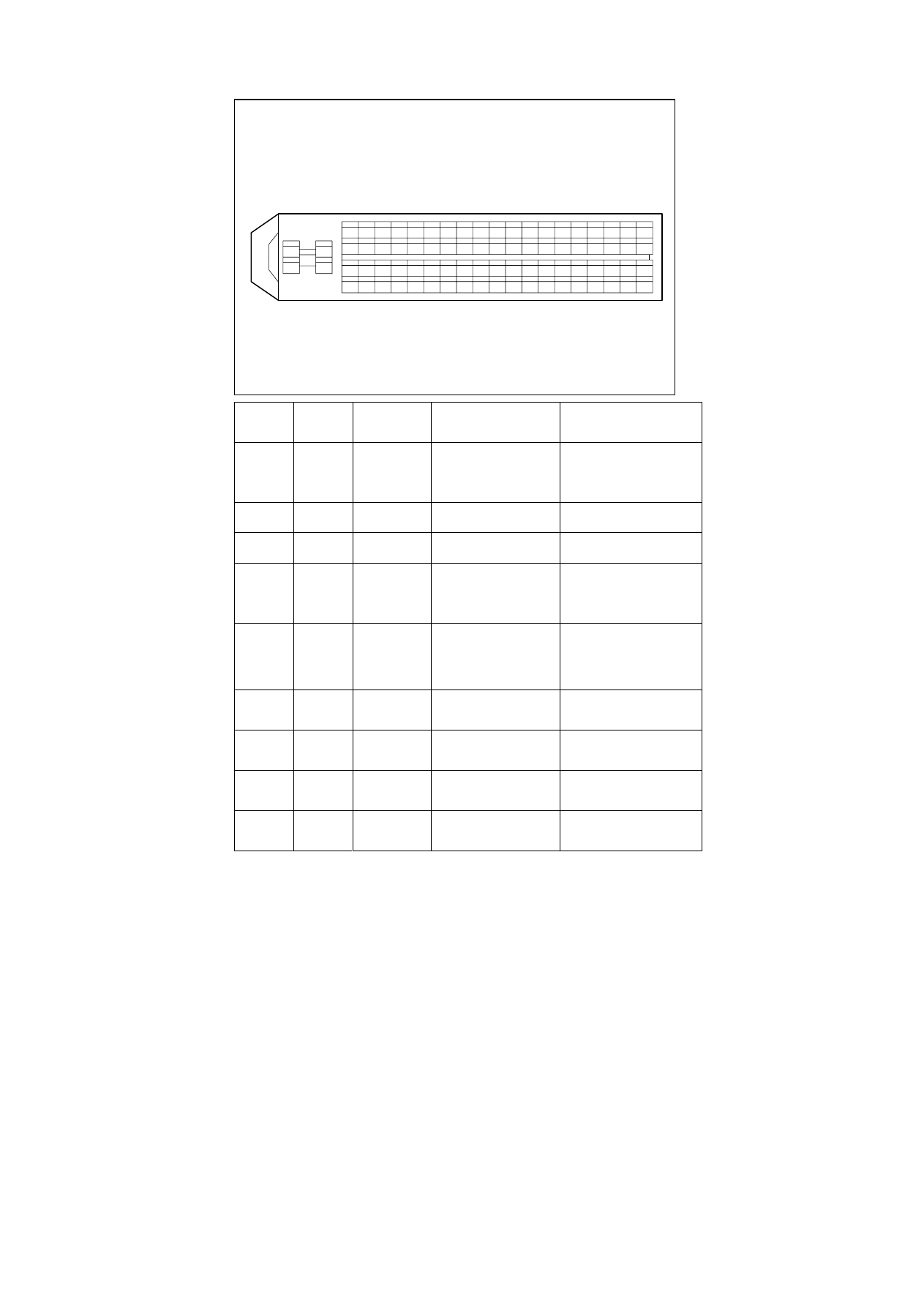

2.12.7.5 List of ECM Terminal Definition

NL02-2084b

1

2

4

5

3

81

63

44

25

6

62

43

24 23 22 21 20 19 18 17 16 15 14 13 12 11 10

9

8

7

26

42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27

45

46

61 60 59 58

57 56 55

54 53 52 51 50 49 48 47

64

65

66

80 79 78 77 76 75 74 73 72 71 70 69 68 67

EN01 发动机控制模块线束连接器



Terminal
No.

Wire
Gauge

Abbreviation

Terminal descriptions

Terminal current
specification

0.85O

ESTB /Coil B

ELECTRICAL SPARK
Timing B(ignition coil B
drive )

Less than( below)12 A for
Coil; less

less than 2.5 mA for EST

1.5B

PWRGNG

Power Ground

Less than( below)5 A

1.5B

PWRGNG

Power Ground

Less than( below)5 A

4 0.85W

ESTB/Coil

ELECTRICAL SPARK
Timing A(ignition coil A
drive )

Less than( below)12 A for
Coil; less

less than 2.5 mA for EST

5 0.75B/R

ProtETCBAT/
Recirc

Protect ETC Battery
(electronic throttle
power supply)/ Recircle
return protection.

Less than( below)5 A

6 0.75G/L

INJA

NJECTOR CYL#A (1 #
Cylinder Fuel Injector)

Less than( Valve tappet
rod ) 1 . 5 A

7 0.75Y/V

INJB

INJECTOR CYL#3(3
cylinders injector )

Less than( below)1.5 A

8 0.75Y/B

INJD

INJECTOR CYL#2(2
cylinders injector )

Less than( below)1.5 A

9 0.5G/R

FPR

FUEL PUMP RELAY
(Fuel Pump Relay)

Less than( below)0.3 A

EN01 engine control module harness

connector

689

10 0.5Y/R

ACRLY

AC CLUTCH RELAY
(Air-conditioning Clutch
Relay)

Less than( below)0.3 A

11 0.5L

58XVRLO

58X SIGNAL
LOW(58X low signal)

Less than( below)10 mA

12 0.5Gr

SVS  -

13 -  -

14 -  -

15 -  -

16 -  -

17 0.5Lb/R

FAN2

RADIATOR HIGH
SPEED FAN

Speed fan)

Less than( below)0.3 A

18 0.5Lg/B

FC



19 0.5R/Y

MIL

20 0.75O

ETCB/IACA
HI

Electronic Throttle
Control B Electronic
throttle body control low
Idle Air Control A High
idling speed control
High

Output

Less than( below)8 A for
ETC; less than( below)0,3
A for IAC

21 0.75V/O

ETCA/IACA
LO

Electronic Throttle
Control A Electronic
throttle body control
high/Idle Air Control A
Low idling speed control
A high

Output

Less than( below)8 A for
ETC; less than( below)0,3
A for IAC

22 -  -

23 0.75B/V

O2BHTR

O2B HEATER
CONTROL(oxygen
sensor B +

Thermal control)

Less than( below)1.21 A

24 0.75B/G

O2AHTR

O2A HEATER
CONTROL(oxygen
sensor A +

Thermal control)

Less than( below)1.21 A

690
