A.  Dismantle the drive belt. Refer to 2.6.8.3 Replacement of Drive Belt.

B.  Run the engine, but no more than 30 s.

Does the hum sound disappear?



3

Inspect whether the bearings of all accessory drive belt pulleys are normal?

Pulley bearings do not appear stuck, loose and so on.



4.  Loosening diagnosis of drive belt

Diagnostic tip: the drive belt dropped from the drive belt pulley repeatedly may be caused by
dislocation of the belt pulley. If the attachment drive belt driving components cause the load
fluctuates, it may cause drive belt fall off from the pulley. Test whether accessories driving
components are working correctly. If the drive belt's length is not proper, drive belt tensioner will
not be able to maintain a suitable drive belt tension.

Fault Definition: Drive belt falls off from the pulley, or are incorrectly installed on the
pulley.

1

Inspect the drive belt for damage. If necessary, replace the drive belt.



2

Inspect whether the pulley is misaligned. Repair the faulty part.



3

Inspect whether the pulley is bent or depressed. Repair the faulty part.





4

Inspect whether the drive belt tensioner device bracket is bent or cracked.
Repair the faulty part.





4

To Diagnostic Hints

Next

Next

Next

Next

No

Replace the damaged pulley or bearing.

Yes

No

Refer to 2.6.7.4 Engine Noise Diagnosis

Yes

443

5

Inspect whether the drive belt tensioner device is working properly. Repair
the faulty part.





6

Inspect whether the drive belt tensioner device is working properly. Repair
the faulty part.





7

Inspect whether the attached fasteners loose. Repair the faulty components.





8

Confirm that the fault has been fixed.

5.  The transmission belt is subject to excessive wear.

Diagnostic tip: the excessive wear of the drive belt is usually caused by improper installation or
the user of the wrong belt. Drive pulley slight misalignment will not cause excessive wear and tear,
but it could lead to drive belt noise or loss. Drive pulley misalignment can cause excessive wear
and can also lead to drive belt fall off.

Fault Definition: The drive belt is not properly installed which led to the drive belt outer
edges worn.

1

Inspect whether there are frictions between drive belt and brackets, harness, hoses and
other components?



2

Inspect all attachments drive belt pulley for whether there are abnormal scratches on
the surface, edges and corners and other abnormal conditions?



3

Inspect whether the installed drive belt model is correct?



Yes

Replace the drive belt with a correct type.

No

Yes

Repair the faulty part. If necessary, replace
the belt pulley

No

Yes

Repair the faulty part.

No

Next

Next

Next

444

4

To Diagnostic Hints

445

2.6.8 Removal and installation

2.6.8.1 Replacement of Plastic Shield of Engine

Dismantlement Procedure

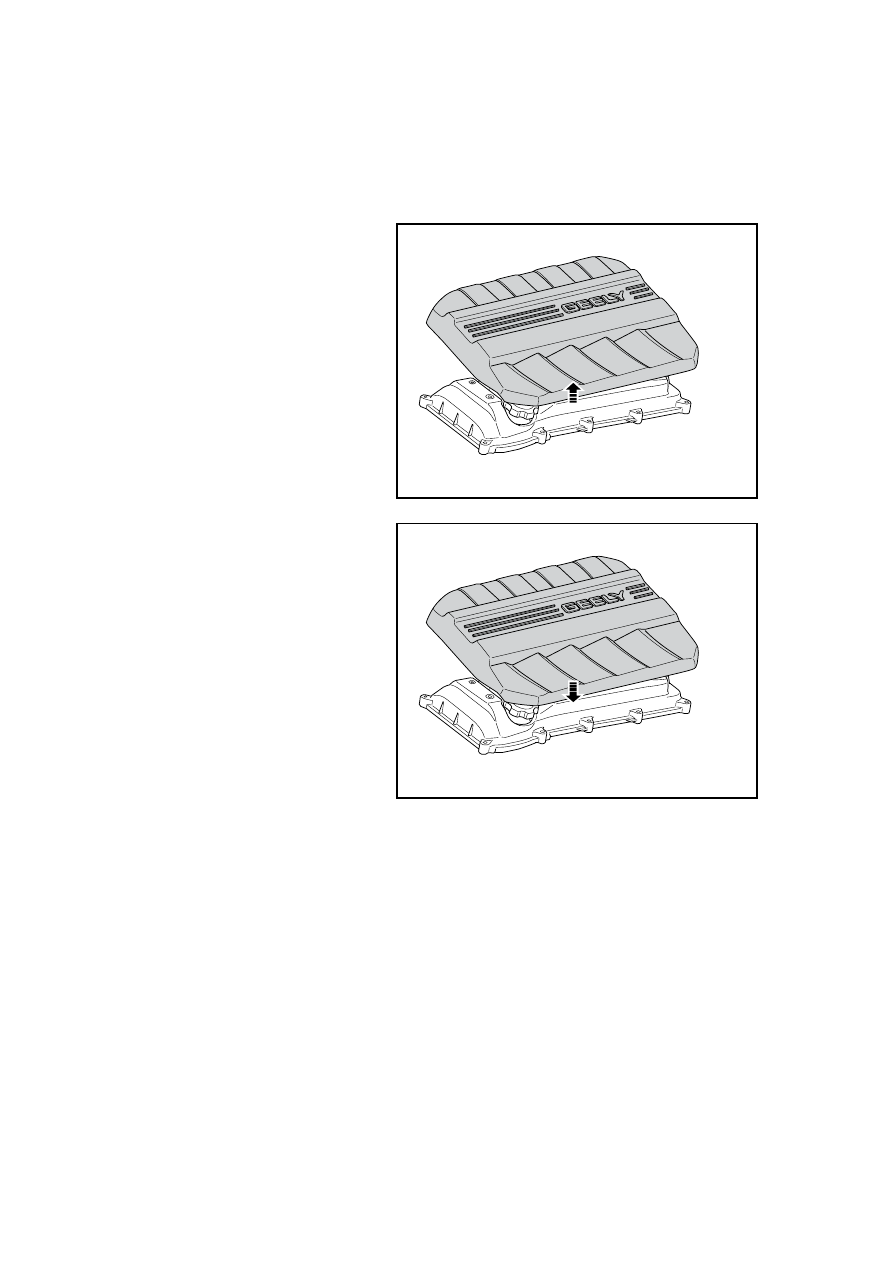

1.  Dismantle the plastic shield of

engine.

Note: Do not damage the rubber
gasket in the plastic shield when
disassembling.



NL02-1007e

Installation Procedure:

1.  Install the plastic shield of

engine.

NL02-1008e

446
