replaced. Inspect the brake fluid tank lid vent to ensure that there is no dirt and the path is
unblocked.

Maintenance for transaxle

Auto-transmission: Check transmission fluid every 20000km or 12 mouths, replace transmission
fluid every 60000km or 36 mouths,,

Manual transmission: first time: 5000km replacement, every 2 years or 40000km later on;

Inspection and rotation of tire and wheel

Inspect whether there is abnormal tire wear or damage. To make tire wear evenly and to extend
tire life, rotate the tire positions. If there is abnormal or premature wear, wheel alignment should
be Inspected, and then inspect the wheels for damage.

1.4.2.6 Tire rotation descripition

Notes:

If there is obviously uneven tire wear, the faults for this should be eliminated.

When rotating the tires, it is recommended at the same time to inspect the tire and wheel assembly
balance.

1.  It is recommended that tire rotation be carried out when brake inspections are performed, as

per the "maintenance schedule” outlined in the User’s Manual or when: Difference in tread
depth between front and rear tires exceed 1.5 mm (0.08 in).

2.  Lifting and support vehicles, refer to 1.3.1.1 lifting vehicle .

Notes:

Record the original position of each tire and wheel assembly in relation to the vehicle.

3.  Remove the tire and wheel assembly, refer to 4.4.5.1 replacement of wheel.

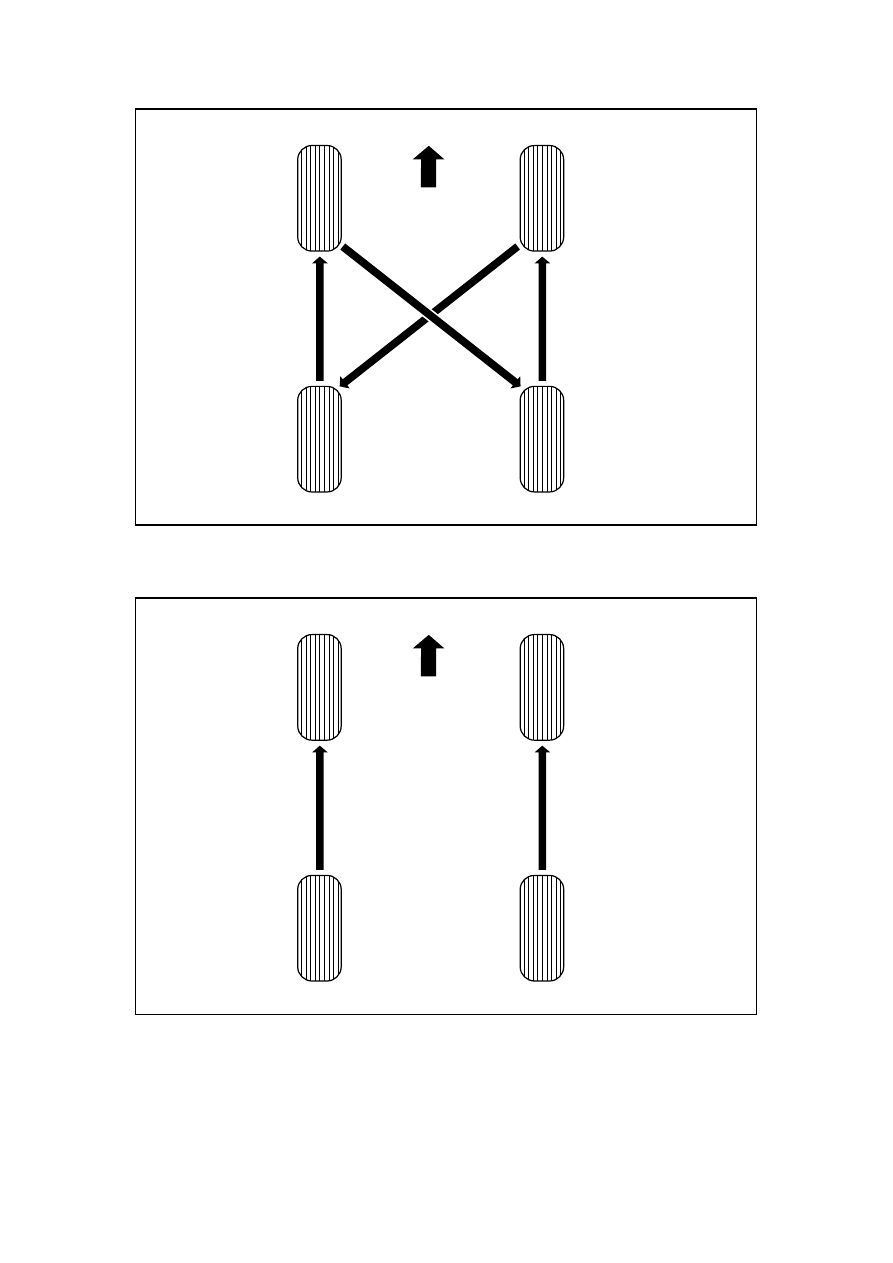

4.  Rotate the tire and wheel assembly as shown in the following diagrams.

Notes:

For " No direction of rotation" tires, carry out rotation as shown below.

23

NL01-0004b



Notes:

For "

No direction of rotation

" tires, carry out rotation as shown below.

NL01-0005b



5.  Install the tire and wheel assembly,

 refer to 4.4.5.1 replacement of wheel.



6.  Remove the safety stands.

7. Lower

the

vehicle.

8.  Check and adjust the tire inflation pressure.

24

1.5 Maintenance information system

1.5.1 Description and operation

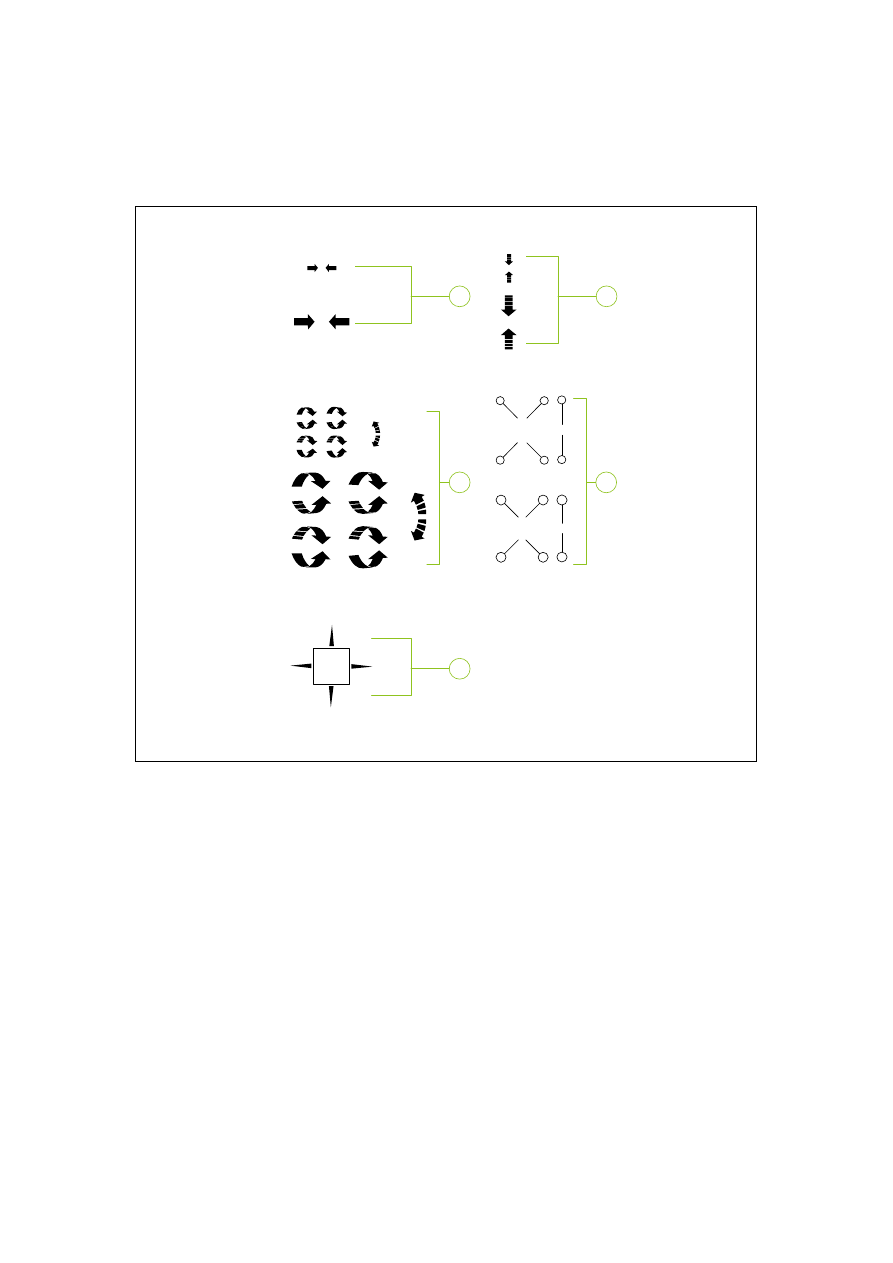

1.5.1.1 Usage specification of arrow and symbol in the manual

2

2

2

2

2

2

2

2

2

2

2

2

1

5

3

4

2

NL01-0006b



Legend

1. Arrow

2. Motion

direction

arrow

3.  Rotation direction arrow

4.  Component code notes

5. Enlarged

area

25



1.6 Health and safety

1.6.1 Description and operation

1.6.1.1 Specification

Various operations relating to vehicle maintenance and repair may affect on personal safety or
health; part of relevant hazardous operations as well as materials and equipment are listed in the
section; moreover, safety rules to avoid such hazards are further listed.

This section does not include all the health and safety issues, so that all operations, procedures,
and material handling should be carried out, provided that safety and health is to be ensured. Prior
to the use of any product, inspect the manufacturer or supplier product instructions.

1.6.1.2 Acids and bases

Refer to 1.6.1.8 battery acid Fluid.

For example, battery has a corrosive sodium carbonate, sulfuric acid.

Batteries and other materials cleaning agent.

Battery has irritation and/or erosion affect on the eyes, skin, nose and throat. It may cause burns in
human body and damage to normal clothing. To avoid battery acid fluid splashing in the eyes, skin
and clothing, always wear appropriate protective clothing, gloves and protective goggles to
prevent inhaling acid fog.

Be sure to be equipment washing equipment nearby, such as: eye washing bottle, shower nozzle
and soap, etc. It is convenient to timely help somebody in trouble at any time when splashing.
Prominently mark eye danger sign.

1.6.1.3 Airbag

Refer to 1.6.1.15 fire and 1.6.1.10 chemical materials.

For highly flammable and explosive - to comply with the smoking ban.

Airbags are installed in the steering wheel, in the front passenger seat and inside the instrument
panel in front of the front passenger as well as the post A, post B, post C as a supplementary safety
system.

The airbag expander contains a gas that produces a very high temperature when igniting the
high-energy propellant (2,500ºC/4532 ºF).

This propellant is stored in airtight sealed components and fills the airbag when the airbag is
deployed. It is prohibited to open airbags during maintenance, as this would lead to dangerous
contact with the propellant. If the gas containers happen to break, wear full protective clothing
when handling the overflow materials.

After deploying airbags, wear protective goggles and gloves when handling the airbags.

Deployed airbags must be handled according to the relevant local laws.

If come into direct contact with gas derivatives, you must:

–

Use clean water to rinse contact position.

–

Call for emergency medical help as per condition

Airbag-shall execute operation (for your own safety, please wear the safety appliance to the
greatest extent prior to the execution of the following operation; the ignition switch of the vehicle
must be turned to "LOCK" status when dismantling the airbag, pull up the key and disconnect the
battery negative cable, then dismantle after waiting for 90s).

26
