Insert the dipstick into the tube and remove the
dipstick.

Check the fluid level reading and repeat the
check procedure to verify the reading.

If the fluid level is within the COLD RUN band,
the transmission may be operated until the fluid
is hot enough to perform a HOT RUN check.

If the fluid level is not within the COLD RUN
band, add or drain fluid as needed to adjust the
fluid level to the middle of the COLD RUN band.
See

Fig. 10

for the AT, MD, and HD series, and

Fig. 11

for the MT series.

CAUTION

Do not fill above the COLD RUN band if the trans-
mission fluid is below normal operating tempera-

ture. As fluid temperature increases, so does the
fluid level. Filling above the COLD RUN band
when the transmission is below normal operating
temperature may result in an overfilled transmis-
sion, which causes fluid foaming, and aeration.
Fluid foaming and aeration cause transmission
overheating and erratic shifting.

NOTE: Perform a hot check at the first opportu-
nity after the normal operating temperature,
160° to 200°F (71° to 93°C) has been reached.

09/24/96

f260396

NOTE: Torque the oil pan bolts with a click-type torque
wrench following this torque pattern. Tighten the bolts 5
lbf·ft (7 N·m), then repeat the torque pattern with a click-
type torque wrench 15 to 20 lbf·ft (20 to 27 N·m).

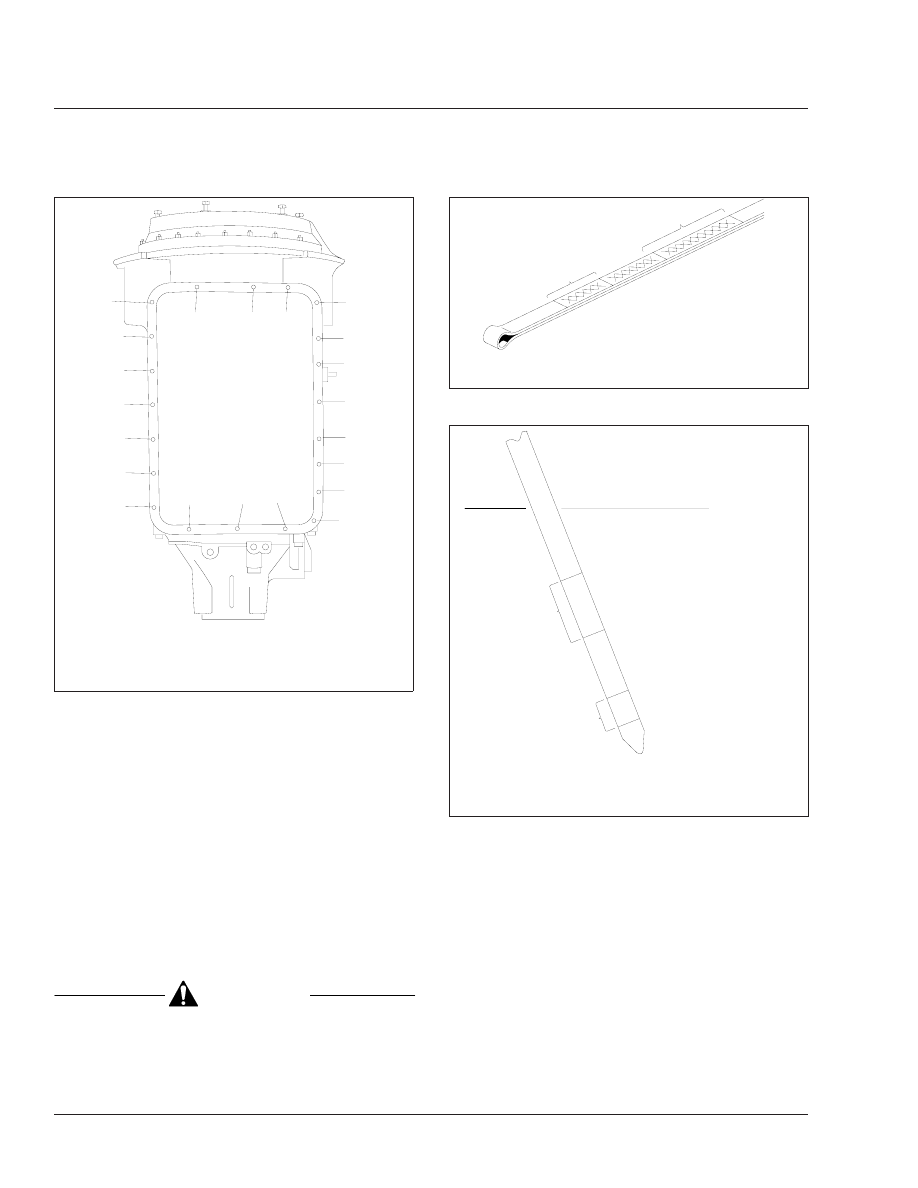

Fig. 9, Allison MT Series Transmission, Oil Pan Torque

Pattern

12/01/97

f270002a

A. Cold Run Band

B. Hot Run Band

Fig. 10, AT, MD, and HD Series Dipstick Markings

CHECK IN NEUTRAL AT IDLE

HOT RUN

FILL

01/22/97

f260395

A. Transmission Housing/Oil Pan Split Line
B. Hot Run Band
C. Cold Run Band

Fig. 11, MT Series Dipstick Markings, 5.1-Inch Depth Oil

Pan

Transmission

26/12

Hot Check

Park the vehicle on a flat, level surface. Apply
the parking brakes and chock the rear tires.

Shift the transmission to NEUTRAL.

Operate the engine at idle (500–800 rpm) until
normal operating temperature is reached. Check
that the sump temperature is 160° to 200°F (71°
to 93°C). Check that the converter-out tempera-
ture is 180° to 220°F (82° to 104°C).

With the engine idling, remove the dipstick from
the tube and wipe it clean.

Insert the dipstick into the tube and remove it.

Check the fluid level reading and repeat the
check procedure to verify the reading. Safe oper-
ating level is within the HOT RUN band on the
dipstick. The HOT RUN band is between the
HOT FULL and HOT ADD marks.

If the fluid level is not within the HOT RUN band,
add or drain fluid as needed to bring the fluid
level within the HOT RUN band. See

Fig. 10

for

the AT, MD, and HD series, and

Fig. 11

for the

MT series.

26–06 Chrysler Transmission

Fluid and Filter
Changing

Replacement

Park the vehicle on a level surface and apply the
parking brakes.

CAUTION

To prevent dirt from entering the transmission,
use only clean containers and fillers for the trans-
mission fluid. Do not use containers or fillers that
have been used for water or antifreeze. Dirt, water,
or antifreeze could damage the transmission.

While the transmission fluid is warm, raise the
vehicle, remove the oil pan, and drain the fluid.

IMPORTANT: Examine the used transmission
fluid for dirt, coolant or water, and metal par-
ticles. If any of these contaminants are present,
there may be a problem within the transmission.

Remove the three filter screws. Remove the filter
from the valve body. See

Fig. 12

Install the new filter.

4.1

Position the new filter on the valve body
and install the filter screws finger-tight.

4.2

Tighten the filter screws 35 lbf·in (400
N·cm).

4.3

Install the oil pan bolts and tighten them
13 lbf·ft (17 N·m).

Refilling After Fluid and Filter Change

Lower the vehicle and remove the dipstick. Using
a clean funnel in the fill tube, add 2 quarts (1.9
liters) of Mopar ATF Plus, Type 7176 transmis-
sion fluid.

Check and adjust the fluid level using the proce-
dures under "Checking the Fluid Level."

Checking the Fluid Level

With the transmission in neutral and the parking
brake applied, run the engine at idle for at least
one minute to clear the fluid system of air.

Shift the transmission briefly through all the gear
ranges. Then shift back into neutral.

Wipe the dipstick clean and check the fluid tem-
perature.

NOTE: Fluid at the operating temperature of
approximately 180°F (82°C) is hot. Hot fluid
cannot be held comfortably between the finger-
tips. The fluid will be hot if the vehicle has been
driven 15 miles (23 km) or more.

Fluid at temperatures of approximately 85° to
125°F (29° to 52°C) is warm.

Wipe the dipstick clean again and reinsert it until
seated. Check the fluid level and add or drain
fluid as necessary.

4.1

If the fluid is warm, any level above the
MIN dot (see

Fig. 13

) is satisfactory. If

the level is at or below the MIN dot, use a
funnel to add fluid until the level is above
this dot. At the next opportunity, check the
fluid when it is hot.

Transmission

26/13

CAUTION

Do not overfill the transmission. Overfilling
causes leakage from the pump vent (this can be

mistaken for a pump seal leak), bubbles in the
fluid, and foaming. This can reduce fluid life sig-
nificantly and cause shifting problems.

f260301

12/12/94

Torque Converter

Input Shaft

Oil Pump

Front Band

Front Clutch

Rear Clutch

Planetaries

Rear Band

Overrunning Clutch

10. Overdrive Clutch
11. Direct Clutch
12. Planetary Gear
13. Governor
14. Output Shaft

15. Seal
16. Intermediate Shaft
17. Overdrive Overrunning Clutch
18. Direct Clutch Spring
19. Overdrive Piston Retainer
20. Filter
21. Valve Body

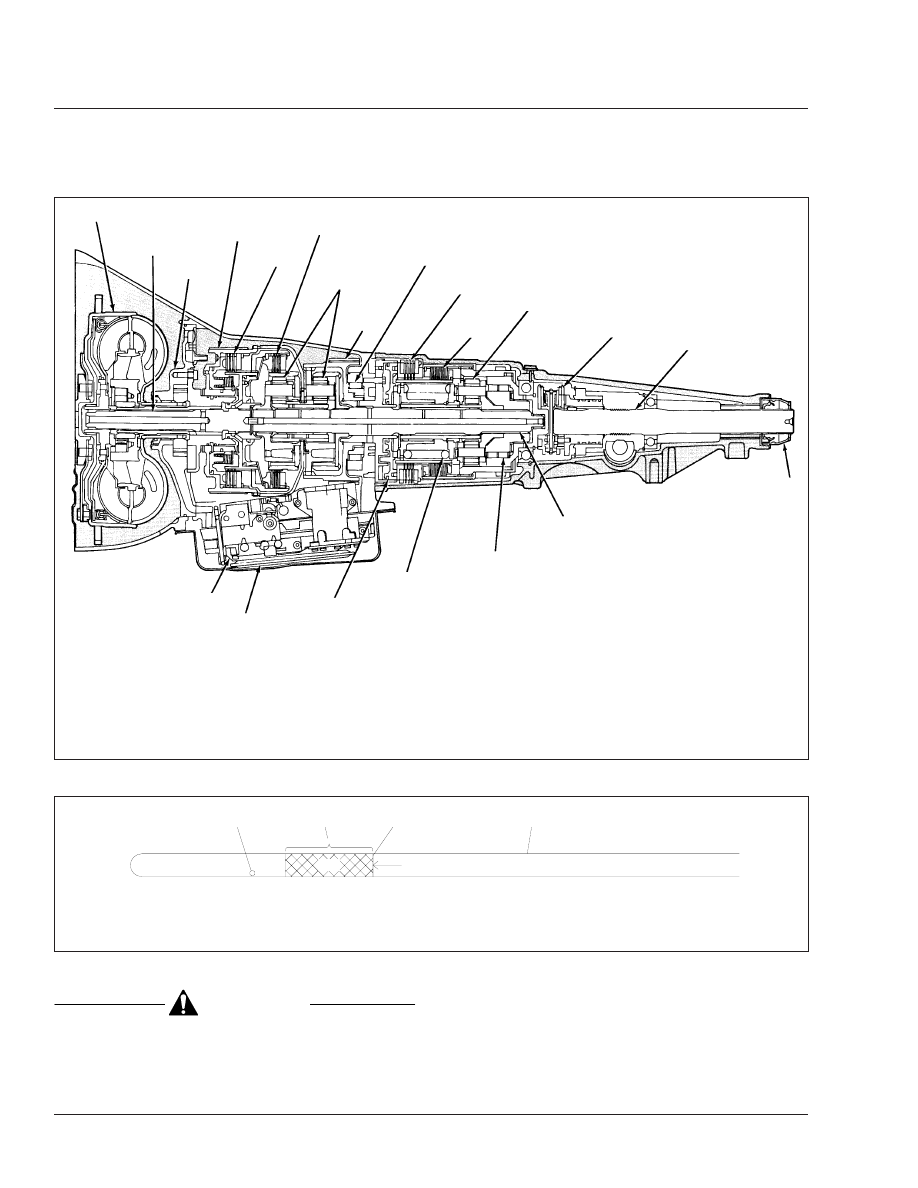

Fig. 12, Chrysler 46RH Transmission and Overdrive Unit

MAX

MIN

f260302

12/12/94

MIN Dot (Minimum Level—Add Fluid)

OK Band (Acceptable Fluid Level)

MAX Mark (Maximum Correct Fluid Level)

Dipstick

Fig. 13, Dipstick Fluid Level Markings, Chrysler Transmission

Transmission

26/14

4.2

If the fluid is hot, any level within the OK
band (see

Fig. 13

) is satisfactory. If the

level is below the OK band, use a funnel
to add just enough fluid to bring the level
up to the MAX mark. Do not overfill.

4.3

If fluid is above the MAX mark, drain off
any excess fluid at one of the cooler
lines. If the cooler lines are too hot, use a
suction gun and flexible tubing with a di-
ameter of 1/8 inch to 3/16 inch (3 mm to
4.75 mm).

NOTE: See

Table 6

for approved transmission

lubricants, and

Table 7

for lubricant capacities.

To prevent dirt and water from entering the trans-
mission, be sure the dipstick cap is properly
seated.

When the fluid level is correct, shut down the
engine and release the parking brake.

Approved Chrysler Transmission Lubricants

Lubricant Type

Temperature

in °F (°C)

SAE

Viscosity

Mopar ATF Plus, Type 7176

—

Table 6, Approved Chrysler Transmission Lubricants

Chrysler Transmission Lubricant Capacities

Transmission Model

Refill Capacity in

Quarts (liters)

46RH (Full Capacity)

10.9 (10.3)

46RH (Fill Amount After Fluid
Change)

2.0 (1.9)

46RH (Fill Amount After Overhaul)

6.0 (5.7)

Table 7, Chrysler Transmission Lubricant Capacities

26–07 Chrysler Transmission

Band Adjusting

Front Band Adjusting

The front (kickdown) band adjusting screw is located
on the left-hand side of the transmission case above
the manual lever shaft and the park/neutral position
switch. See

Fig. 14

Raise the vehicle.

Loosen the locknut on the front band adjusting
screw.

Back off the locknut three to five turns. Make
sure the adjusting screw turns freely in the trans-
mission case. If necessary, apply lubricant to the
screw threads.

Set the adjusting screw. To turn the adjusting
screw, use a 5/16-inch 8-point socket on a 0 to
100 lbf·in (0 to 1100 N·cm) torque wrench.

4.1

Tighten the adjusting screw 72 lbf·in (800
N·cm).

4.2

Back off the adjusting screw 2-7/8 turns.

Holding the adjusting screw in position, tighten
the locknut 30 lbf·ft (41 N·m).

Lower the vehicle.

Rear Band Adjusting

The rear (low-reverse) band adjusting screw is lo-
cated on the lower surface of the valve body. It is
accessible only when the oil pan and filter are re-
moved. See

Fig. 15

Raise the vehicle.

f260303

12/13/94

Front Band Adjusting Screw

Locknut

Manual Lever Shaft

Park/Neutral Position Switch

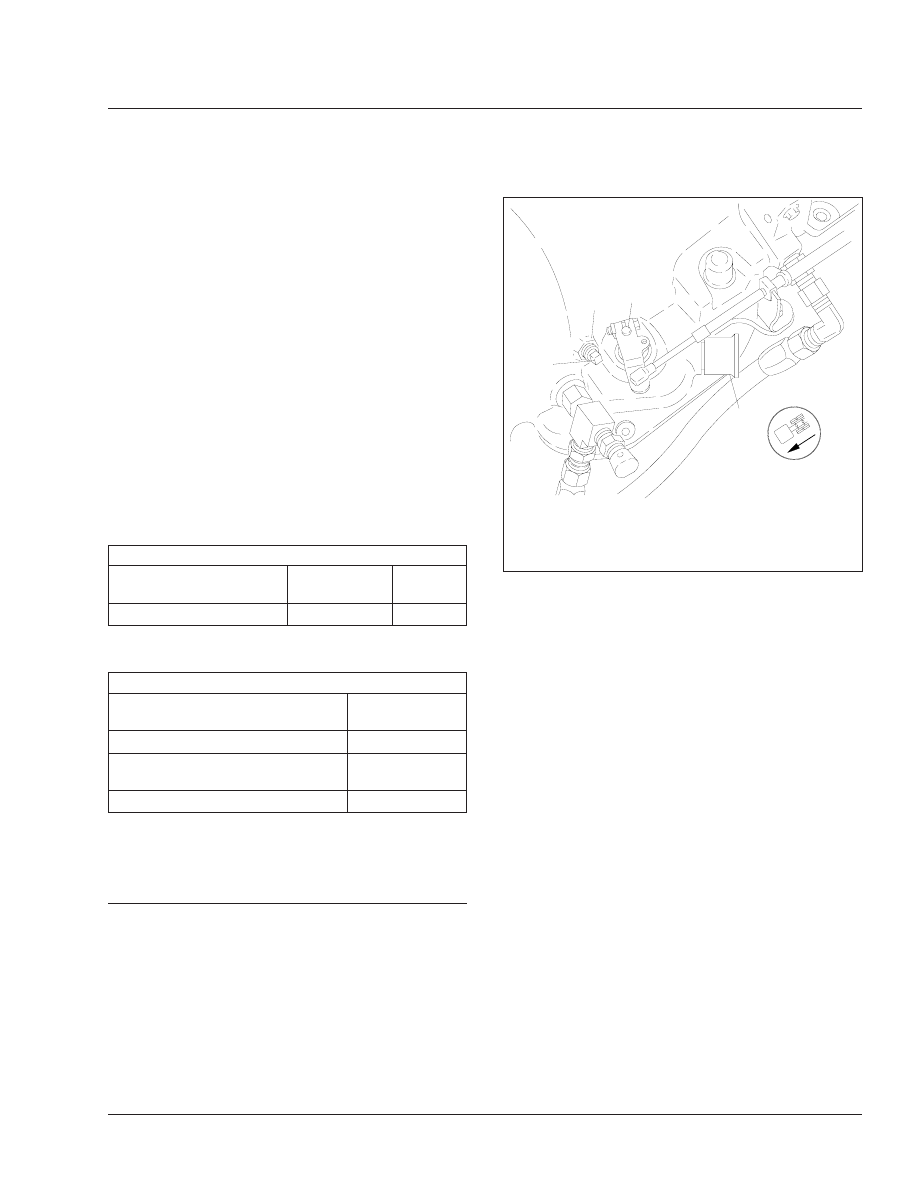

Fig. 14, Front Band Adjusting Screw, Chrysler

Transmission

26/15
