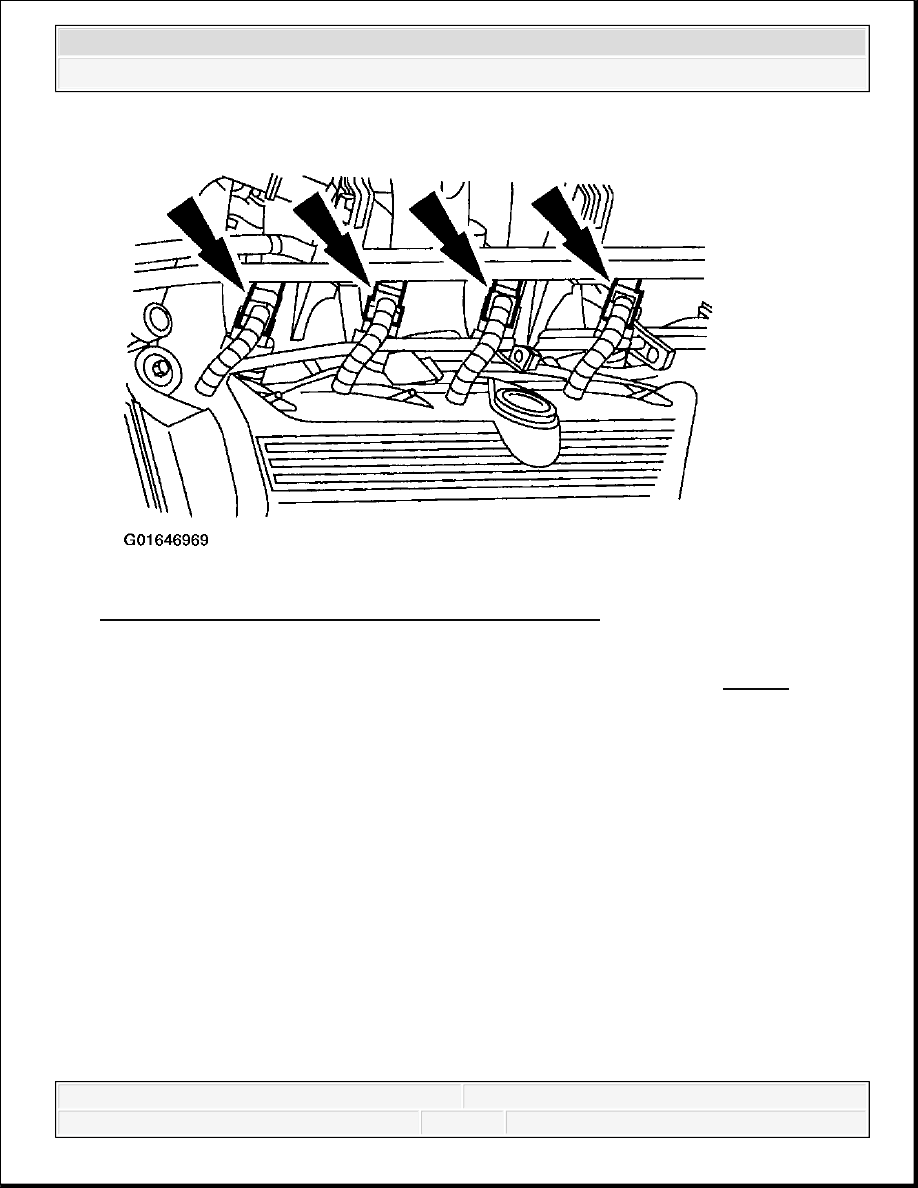

Fig. 72: Connecting Fuel Injector Electrical Connectors 11. Install and connect eight ignition coils. For additional information, refer to COILS . 12. Install the power steering reservoir upper mounting bracket.
2003 Ford Pickup F150 2003 ENGINE Engine - 4.6L & 5.4L - F150 Pickup
|
