Ford F150 Pickup. Instruction - part 662

Special Tool(s)

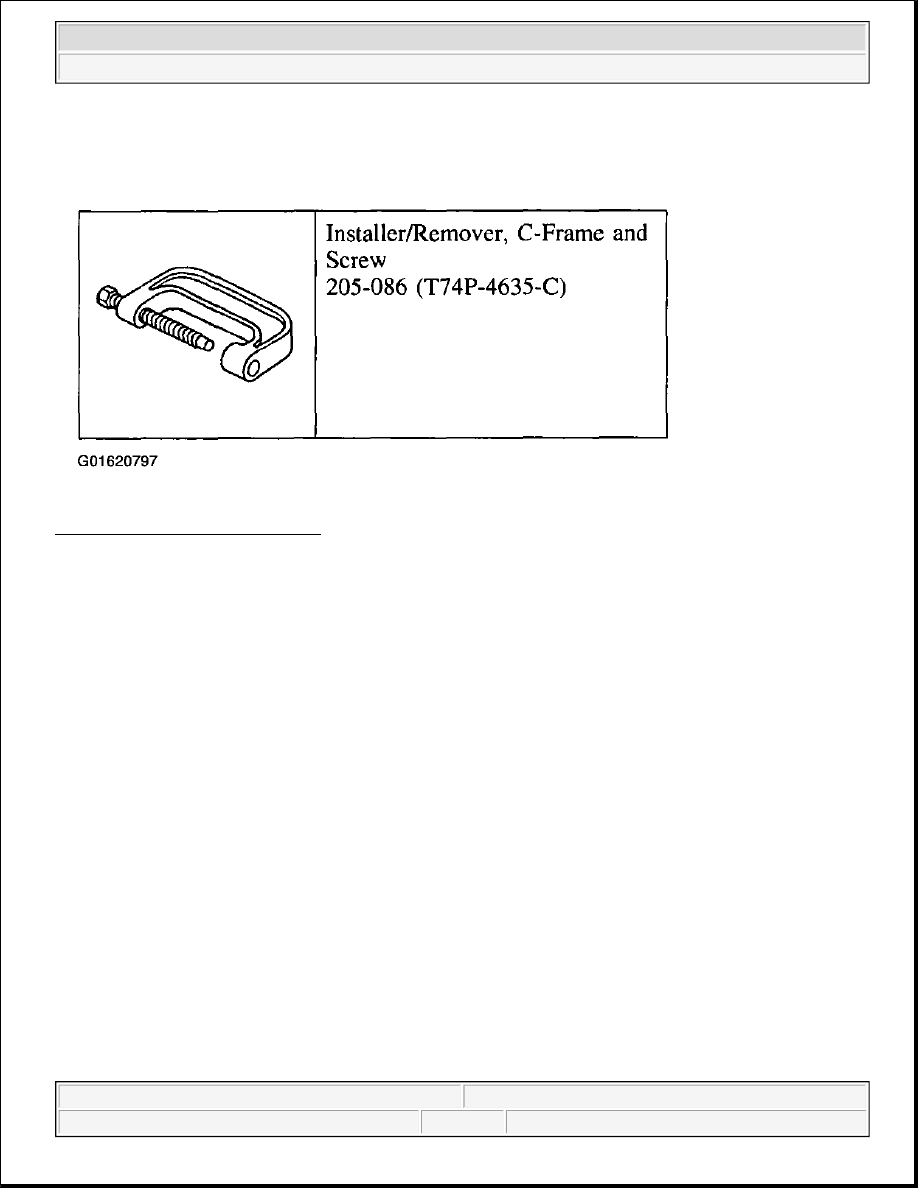

Fig. 38: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Disassembly

Initial Disassembly

1. Place the shaft on a suitable workbench. Do not damage the tube.

CAUTION: Do not, under any circumstance, clamp the shaft in the jaws of a vise

or similar holding fixture. Denting or localizing fracture can result,
causing shaft failure during vehicle operation.

NOTE:

If components are not marked and installed incorrectly, driveline
imbalance can occur.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup

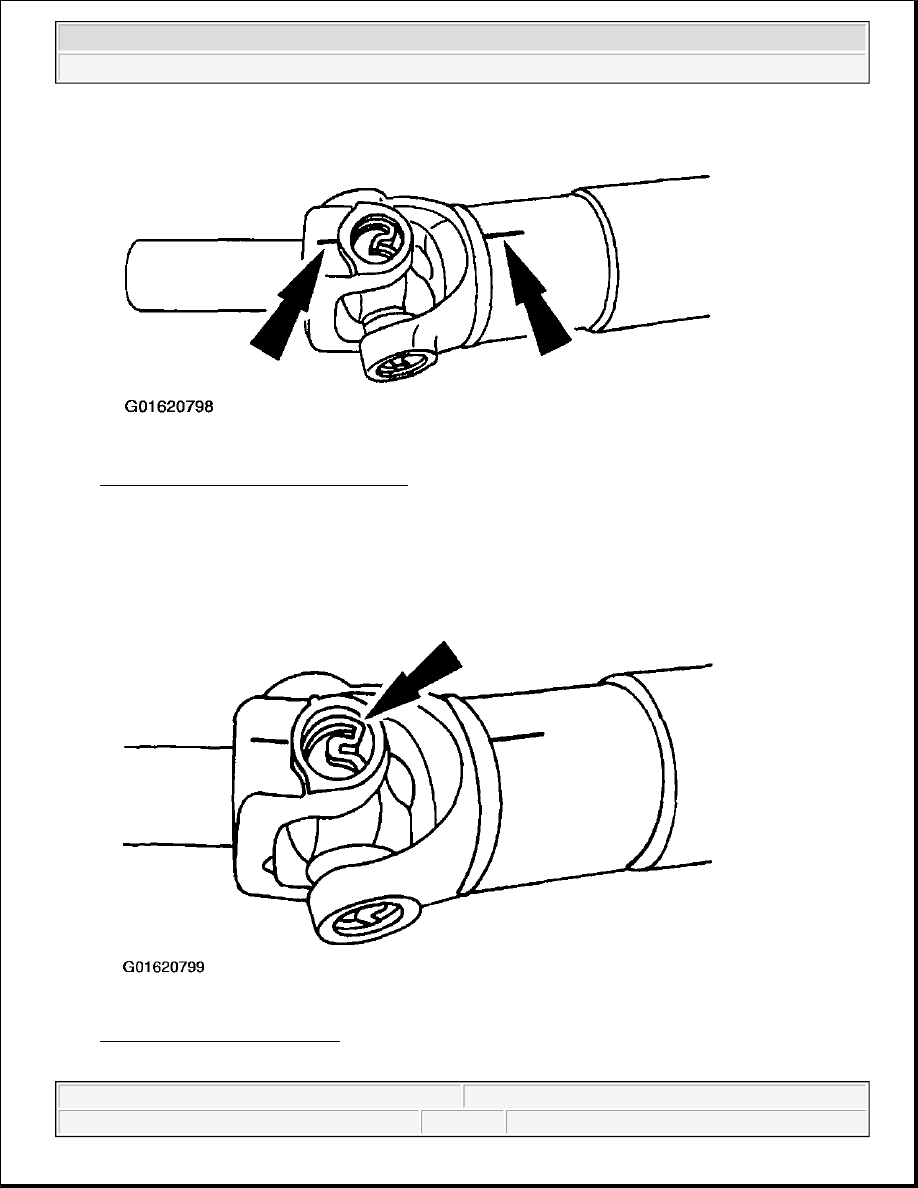

Fig. 39: Shaft Component Match Marks
Courtesy of FORD MOTOR CO.

2. Index-mark the shaft components.

3. Remove and discard all four of the snap rings.

Fig. 40: Identifying Snap Rings
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup



4. Clamp the special tool in a vise.

Fig. 41: Clamping Special Tool In Vise
Courtesy of FORD MOTOR CO.

Bearing Cup Removal

5. Remove the bearing cups and the driveshaft slip-yoke.

1. Position the driveshaft slip-yoke in the special tool.

2. Press out a bearing cup.

3. Rotate the driveshaft slip-yoke 180 degrees.

4. Press on the spider to remove the remaining bearing cup.

5. Remove the driveshaft slip-yoke.

NOTE:

If necessary, use a pair of pliers to remove a bearing cup that fails to press
out all the way.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup

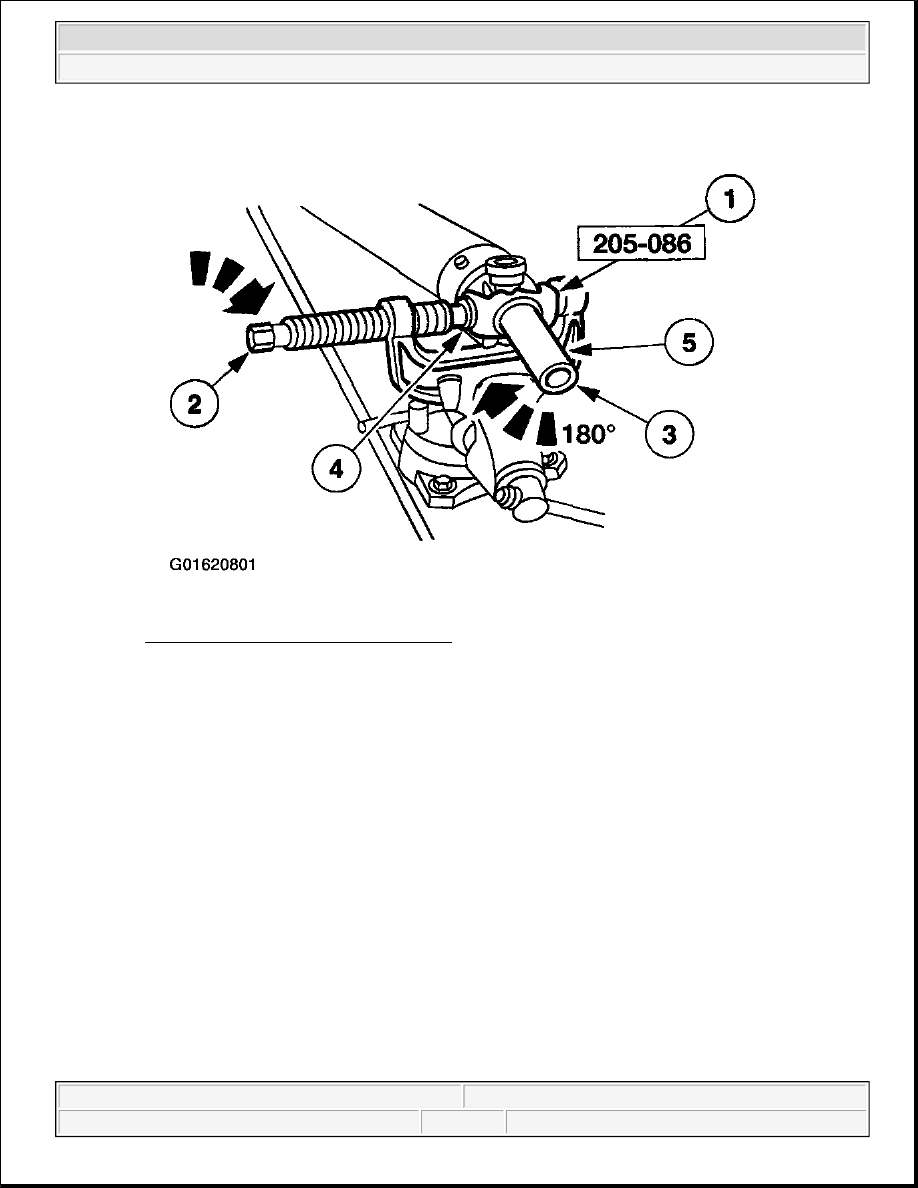

Fig. 42: Removing Driveshaft Slip-Yoke
Courtesy of FORD MOTOR CO.

Final Disassembly

6. Repeat Bearing cup removal in this procedure to remove the remaining bearing cups and the spider from

the shaft.
