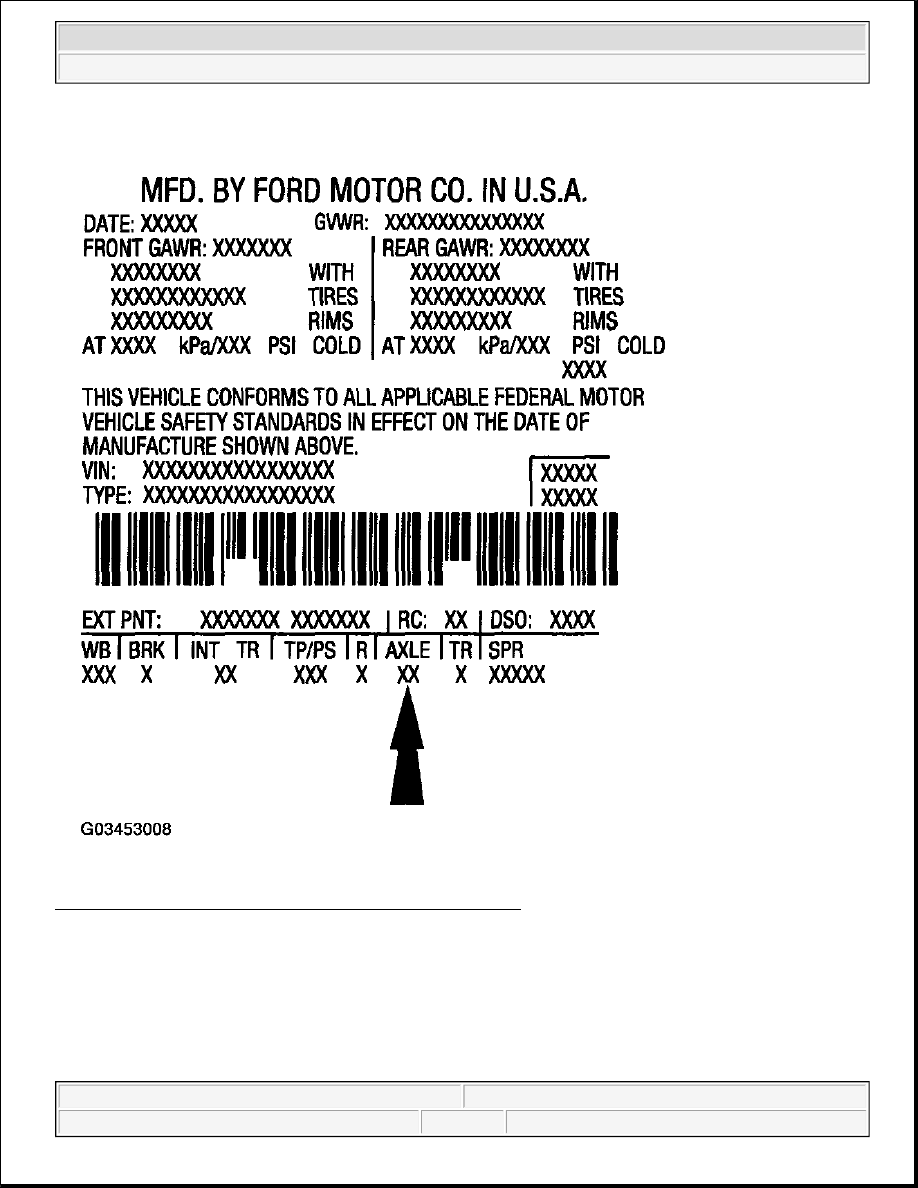

Fig. 1: Identifying Vehicle Certification (VC) Label Example
Courtesy of FORD MOTOR CO.

The vehicle certification (VC) label is located in the driver door jamb. The first two digits of the axle code
indicate the rear axle and the third digit refers to the front axle, if so equipped.

Front Axle Identification Tag



2003 Ford Pickup F150

2003 GENERAL INFORMATION Driveline System - General Information - F150 Pickup

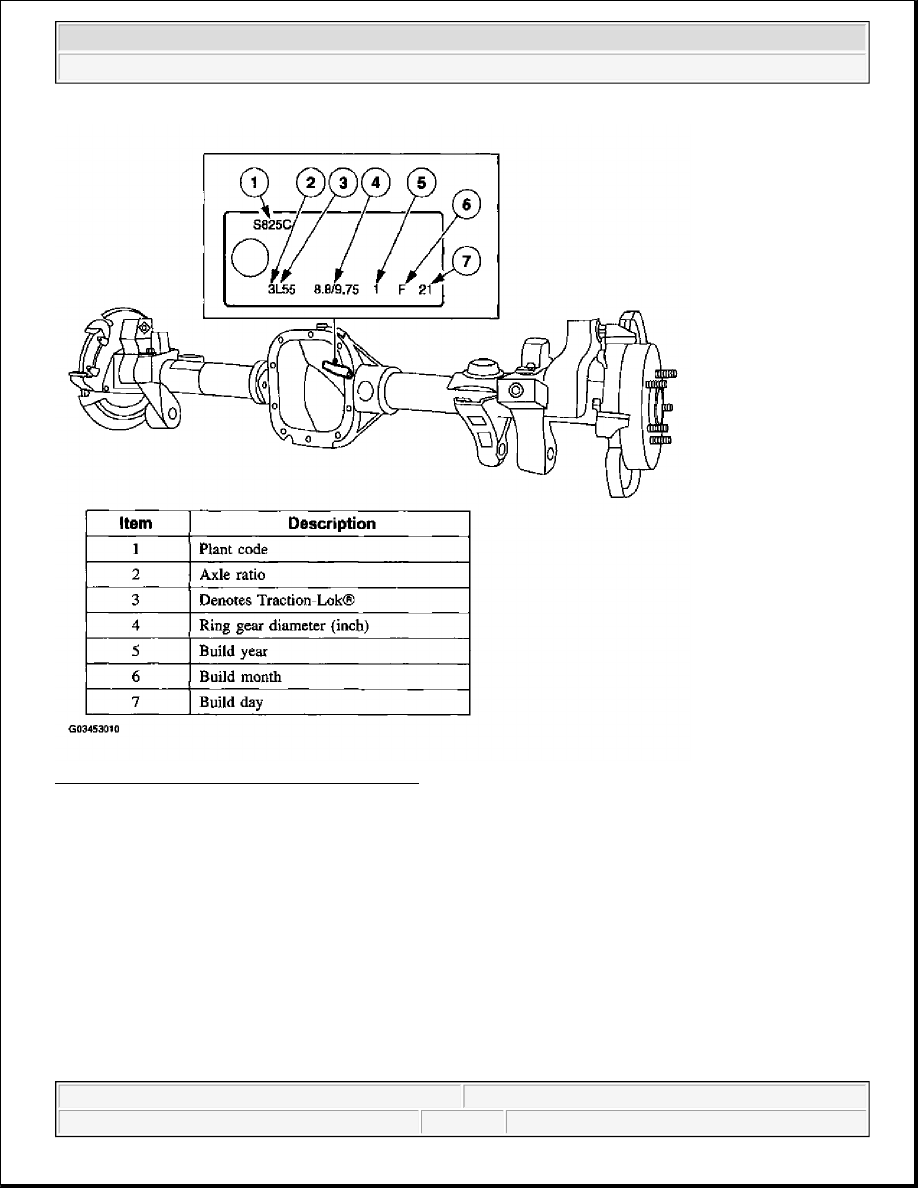

Fig. 2: Identifying Front Axle Identification Tag
Courtesy of FORD MOTOR CO.

Rear Axle Identification Tag



2003 Ford Pickup F150

2003 GENERAL INFORMATION Driveline System - General Information - F150 Pickup

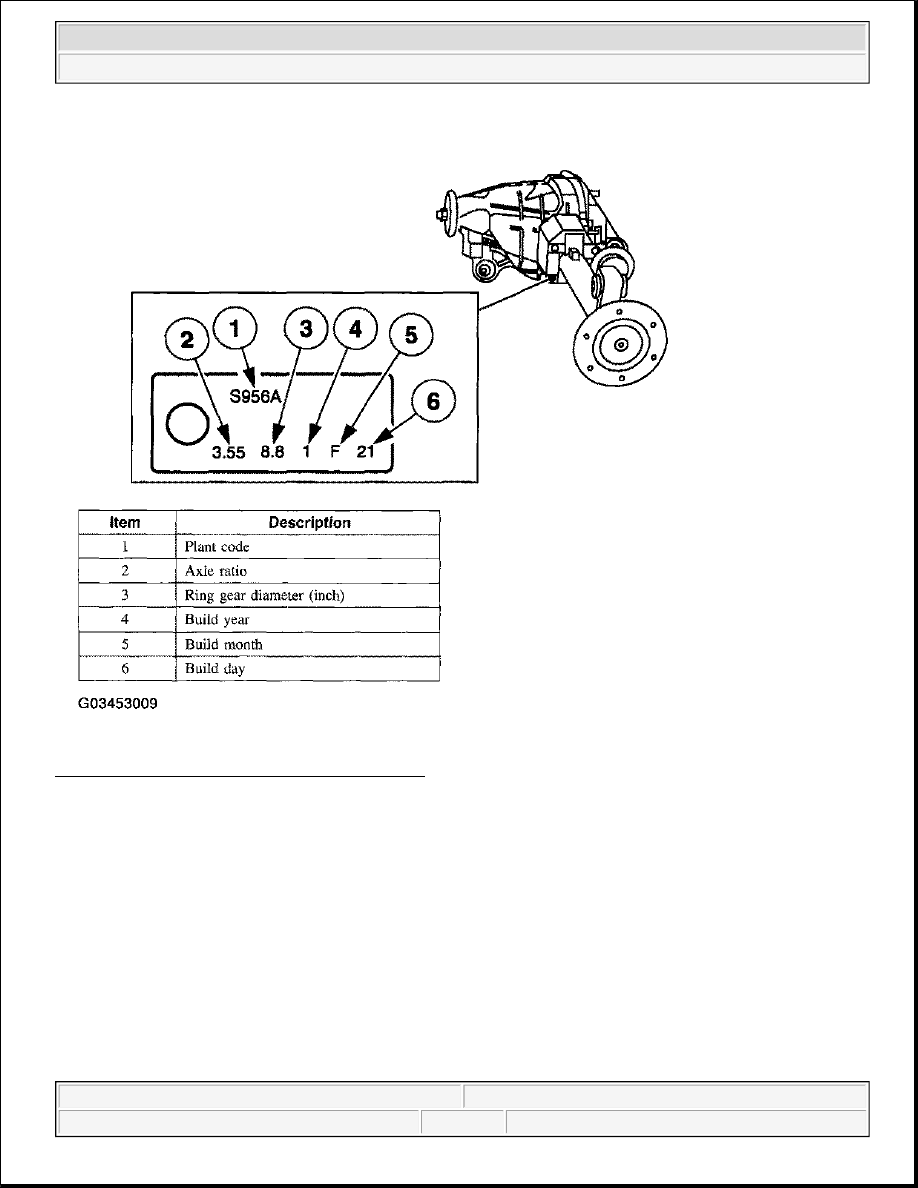

Fig. 3: Identifying Rear Axle Identification Tag
Courtesy of FORD MOTOR CO.

Axle Identification Tag Denoting Interchangeability Affected Internally



2003 Ford Pickup F150

2003 GENERAL INFORMATION Driveline System - General Information - F150 Pickup



Fig. 4: Identifying Axle Identification Tag Denoting Interchangeability Affected Internally
Courtesy of FORD MOTOR CO.

CAUTION: The axle identification tag is the official service identifier. Do not damage

the tag. Always reinstall the tag after removing it for axle inspection/repair.
