Fig. 134: Engaging Differential Pinion Gears Opposite Differential Side Gears
Courtesy of FORD MOTOR CO.

5. Install the differential bearings, using the special tool.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

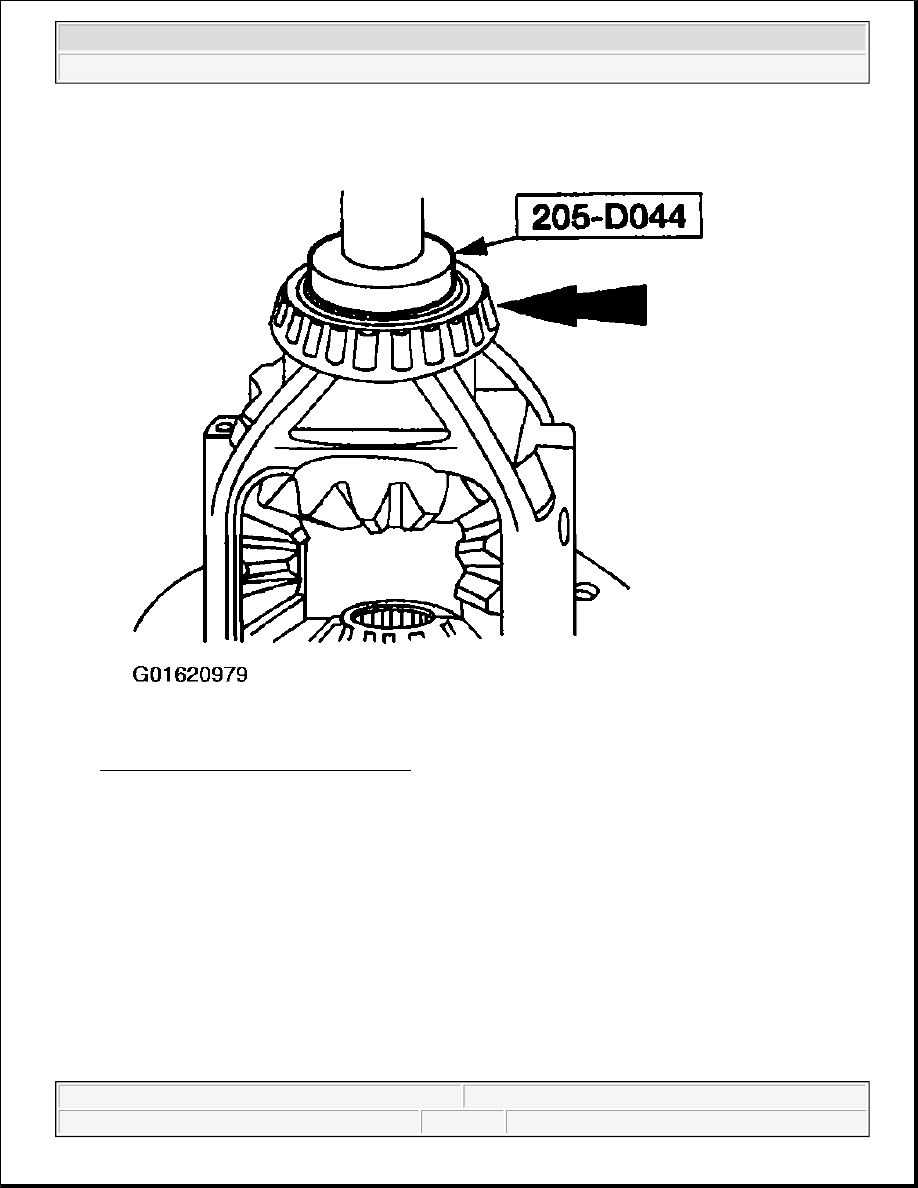

Fig. 135: Installing Differential Bearings
Courtesy of FORD MOTOR CO.

6. Rotate the differential pinion gears to align the differential pinion shaft bore.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

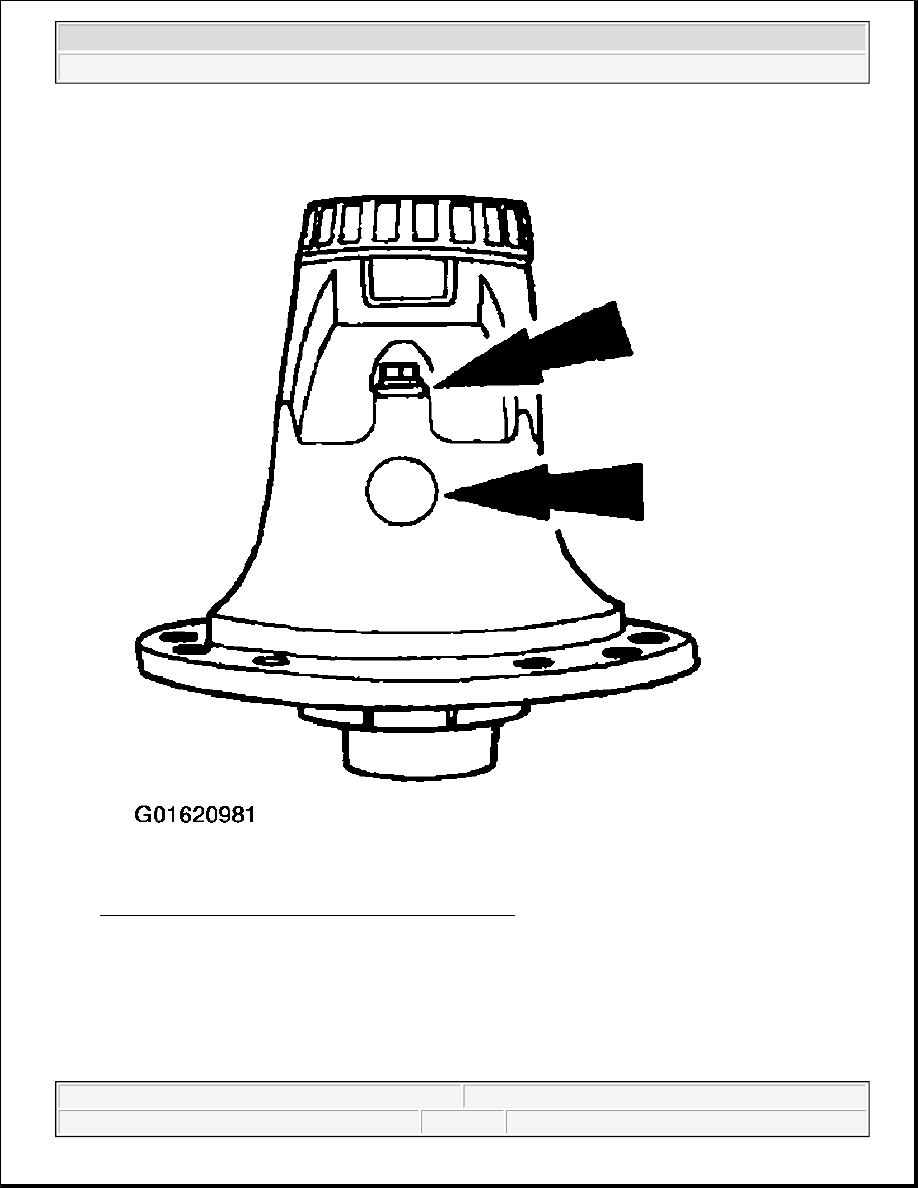

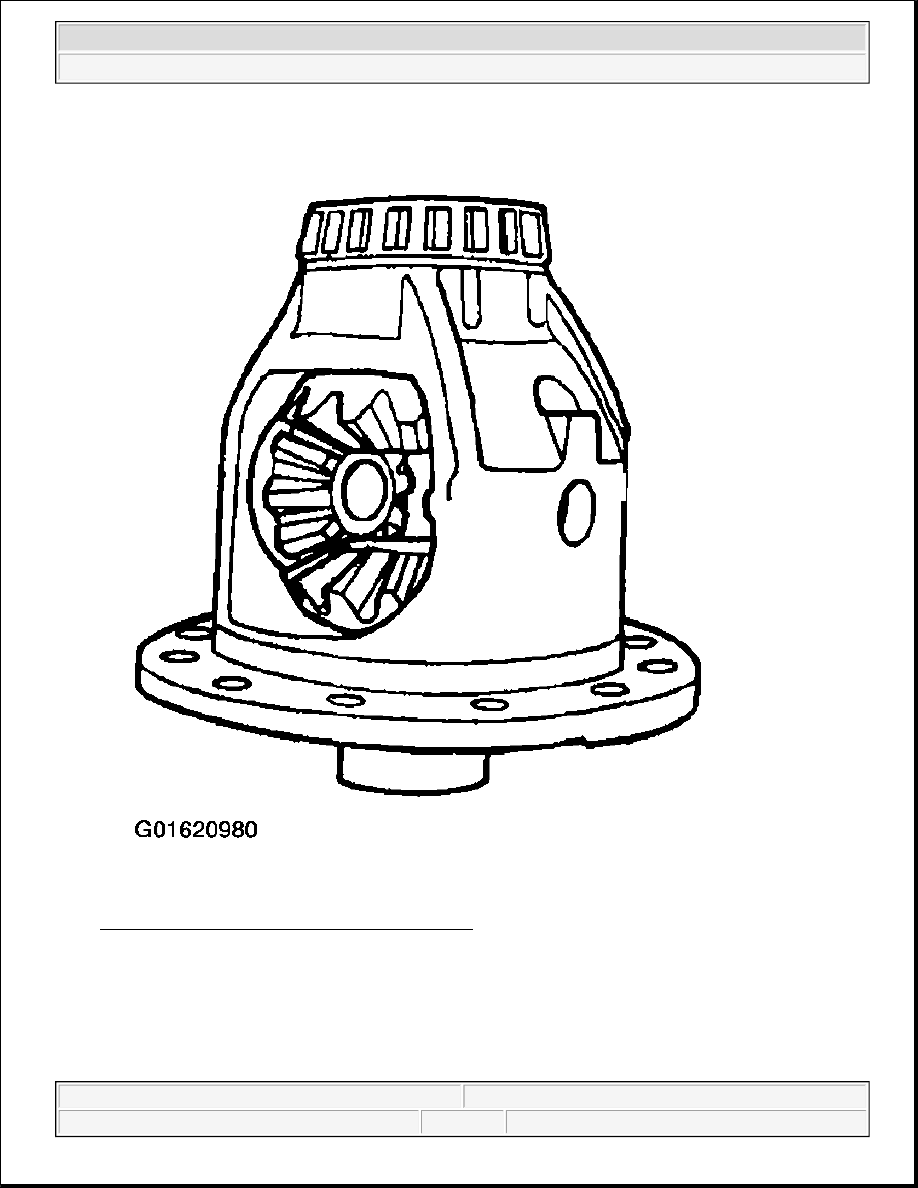

Fig. 136: Aligning Differential Pinion Shaft Bore
Courtesy of FORD MOTOR CO.

7. Insert the differential pinion shaft, and install a new differential pinion shaft lock bolt finger-tight.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 137: Inserting Differential Pinion Shaft Lock Bolt
Courtesy of FORD MOTOR CO.

CAUTION: If equipped, make sure that the notches on the case flange and the

anti-lock speed sensor ring are aligned.
