Ford F150 Pickup. Instruction - part 623

Fig. 110: Removing Brake Discs
Courtesy of FORD MOTOR CO.

6. Remove the retainer bracket bolt.

z

Wire the calipers out of the way.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 111: Removing Brake Hose Retainer Bracket Bolt
Courtesy of FORD MOTOR CO.

7. Remove the parking brake cables.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



Fig. 112: Removing Parking Brake Cables
Courtesy of FORD MOTOR CO.

8. Remove the brake hose junction block retaining bolt.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

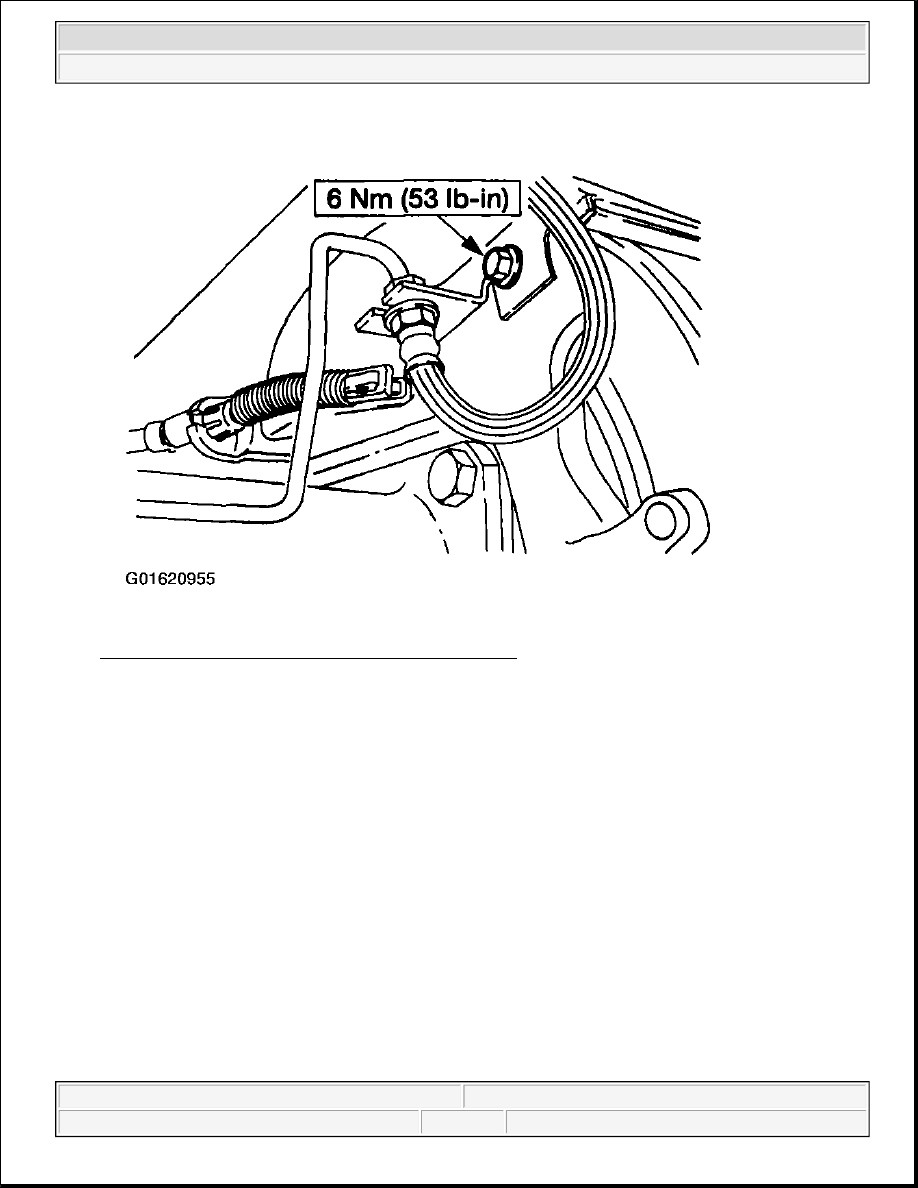

Fig. 113: Removing Brake Hose Junction Block Retaining Bolt
Courtesy of FORD MOTOR CO.

9. Disconnect the vent hose.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup
