Ford F150 Pickup. Instruction - part 566

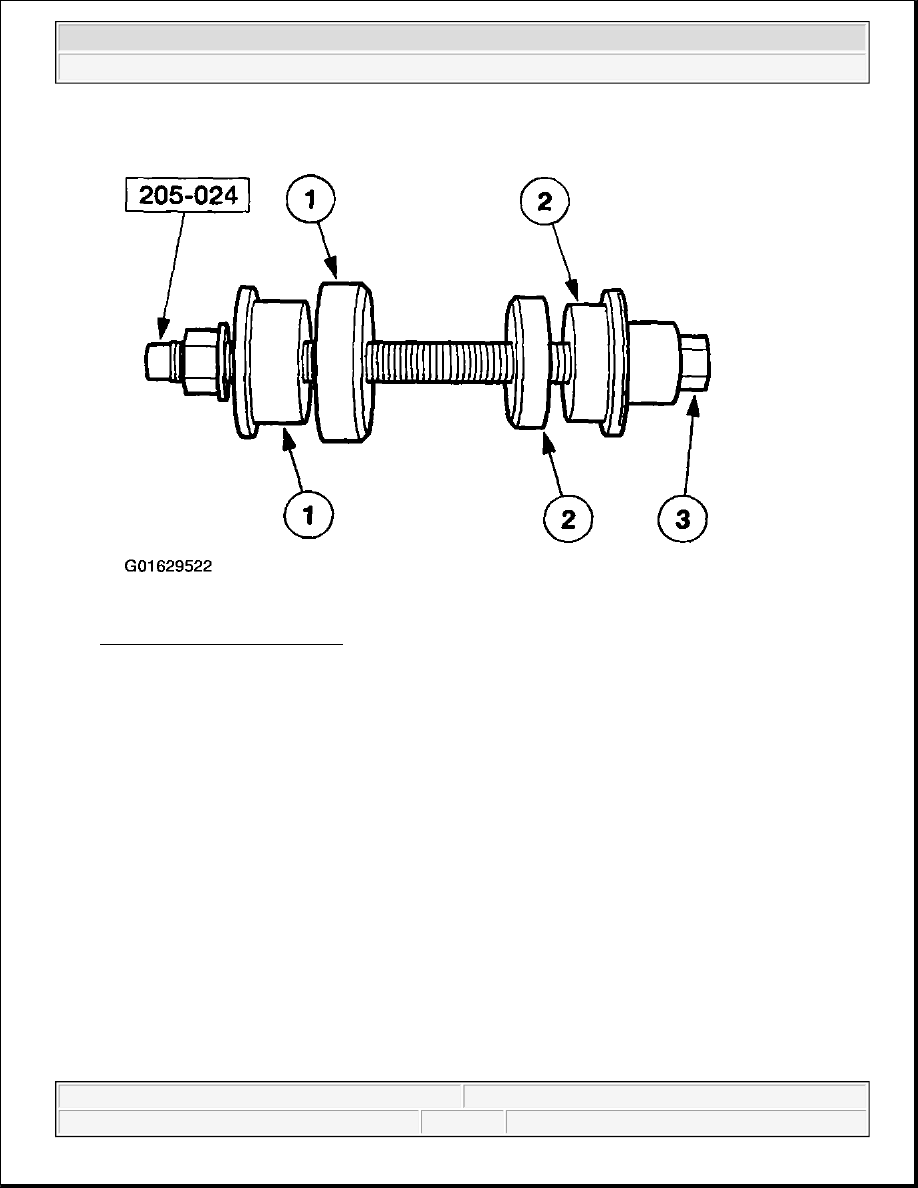

Fig. 61: Setting Up Special Tool
Courtesy of FORD MOTOR CO.

2. Tighten the special tool to seat the pinion bearing cups into their bores.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

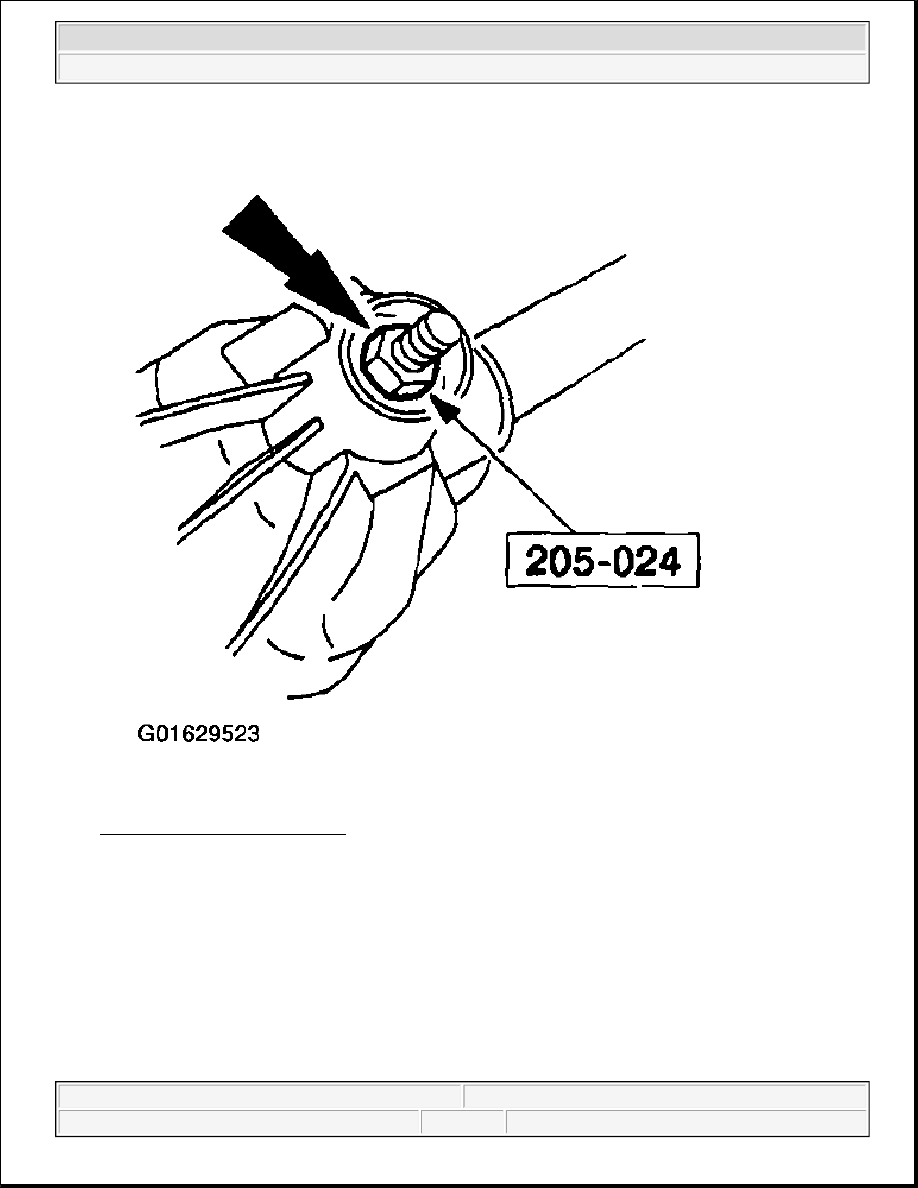

Fig. 62: Tightening Special Tool
Courtesy of FORD MOTOR CO.

Setting Pinion Depth

CAUTION: Whenever new cups are installed, new pinion bearings must also be

installed.

NOTE:

If a feeler gauge can be inserted between a cup and the bottom of its bore
at any point around the cup, the cup is not correctly seated.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

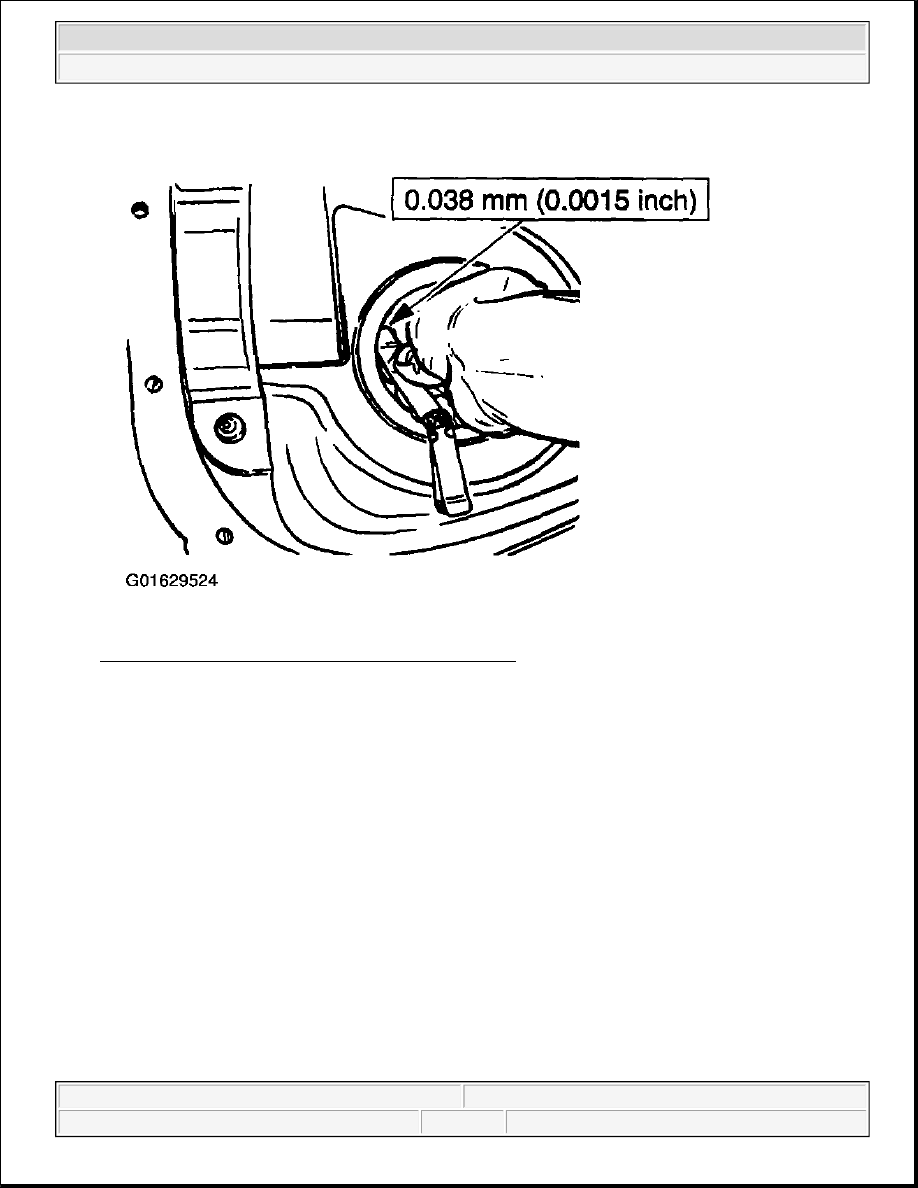

Fig. 63: Ensuring Cups Are Correctly Seated In Bores
Courtesy of FORD MOTOR CO.

3. Make sure the cups are correctly seated in their bores.

NOTE:

Apply only a light oil film on the pinion bearings before assembling the
tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

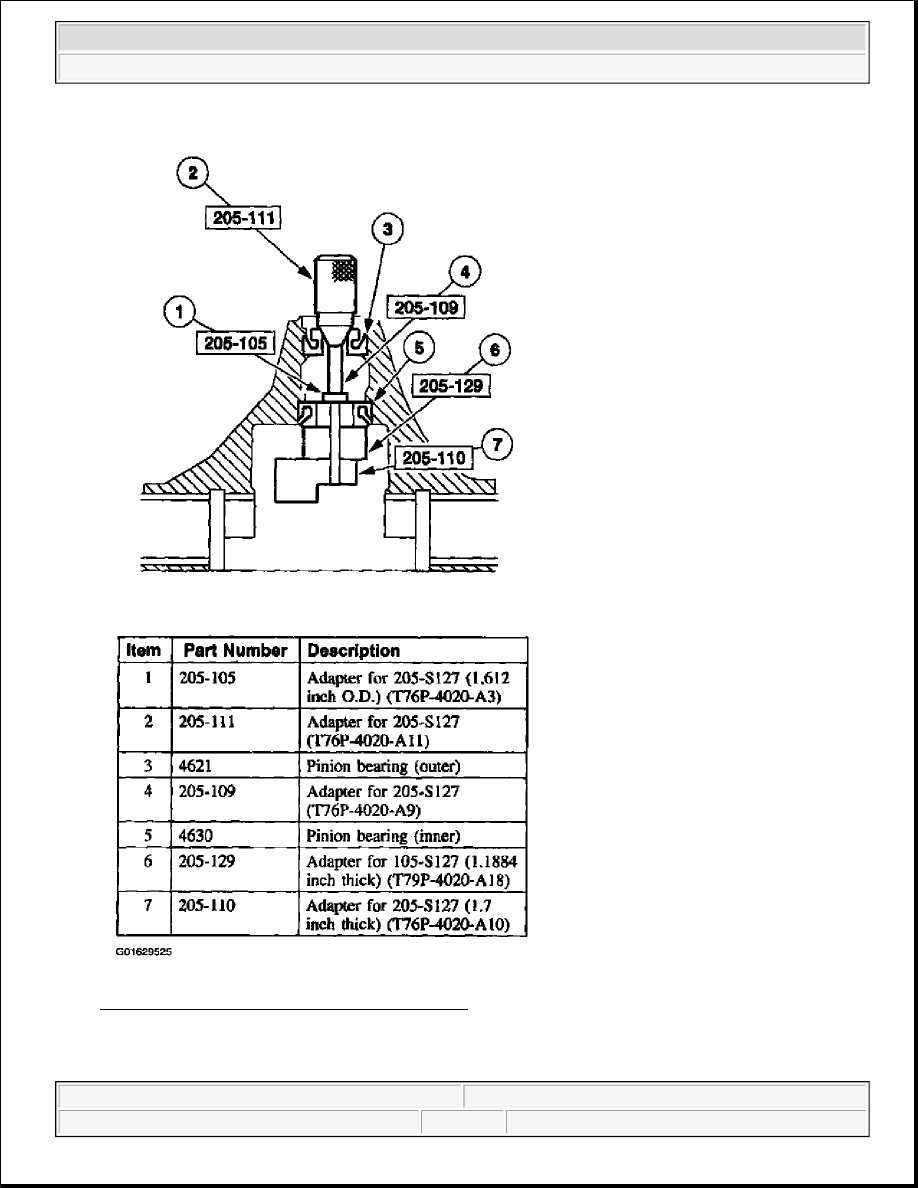

Fig. 64: Assembling & Positioning Special Tools
Courtesy of FORD MOTOR CO.

4. Assemble and position the special tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup
