Ford F150 Pickup. Instruction - part 515

Fig. 41: Disconnecting Driveshaft Centering Socket Yoke From Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.

z

Install a torque wrench on the pinion nut, and record the torque required to maintain rotation of the
pinion through several revolutions.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 42: Checking Torque Rotation
Courtesy of FORD MOTOR CO.

CAUTION: After removal of the pinion nut, discard it. A new nut must be

used for installation.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



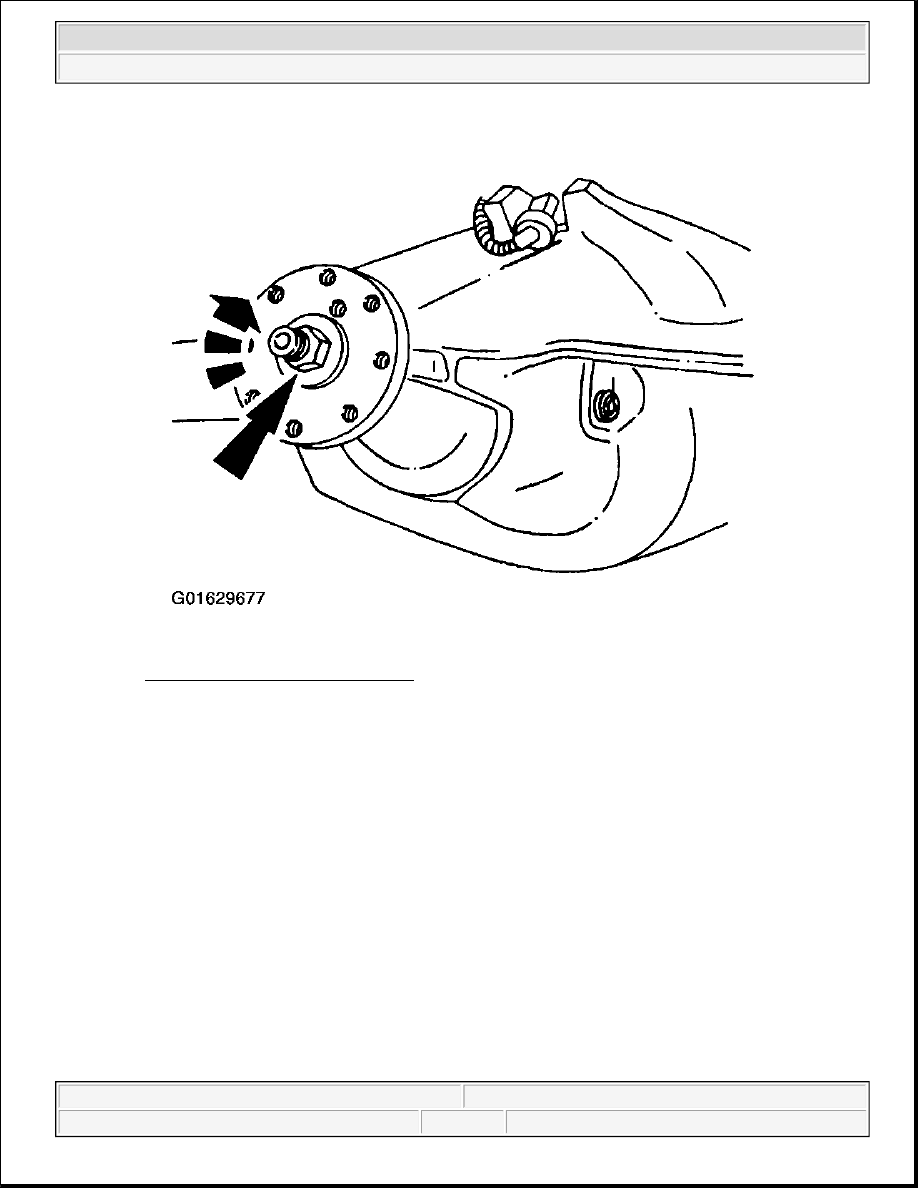

Fig. 43: Removing Pinion Nut
Courtesy of FORD MOTOR CO.

z

Use a suitable pinion flange holding tool to hold the rear axle pinion flange while removing the
pinion nut.

z

Mark the driveshaft rear axle pinion flange in relation to the drive pinion stem to ensure correct
alignment during installation.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 44: Index Marking Driveshaft Rear Axle Pinion Flange In Relation To Drive Pinion Stem
Courtesy of FORD MOTOR CO.

z

Use the special tool to remove the rear axle pinion flange.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
