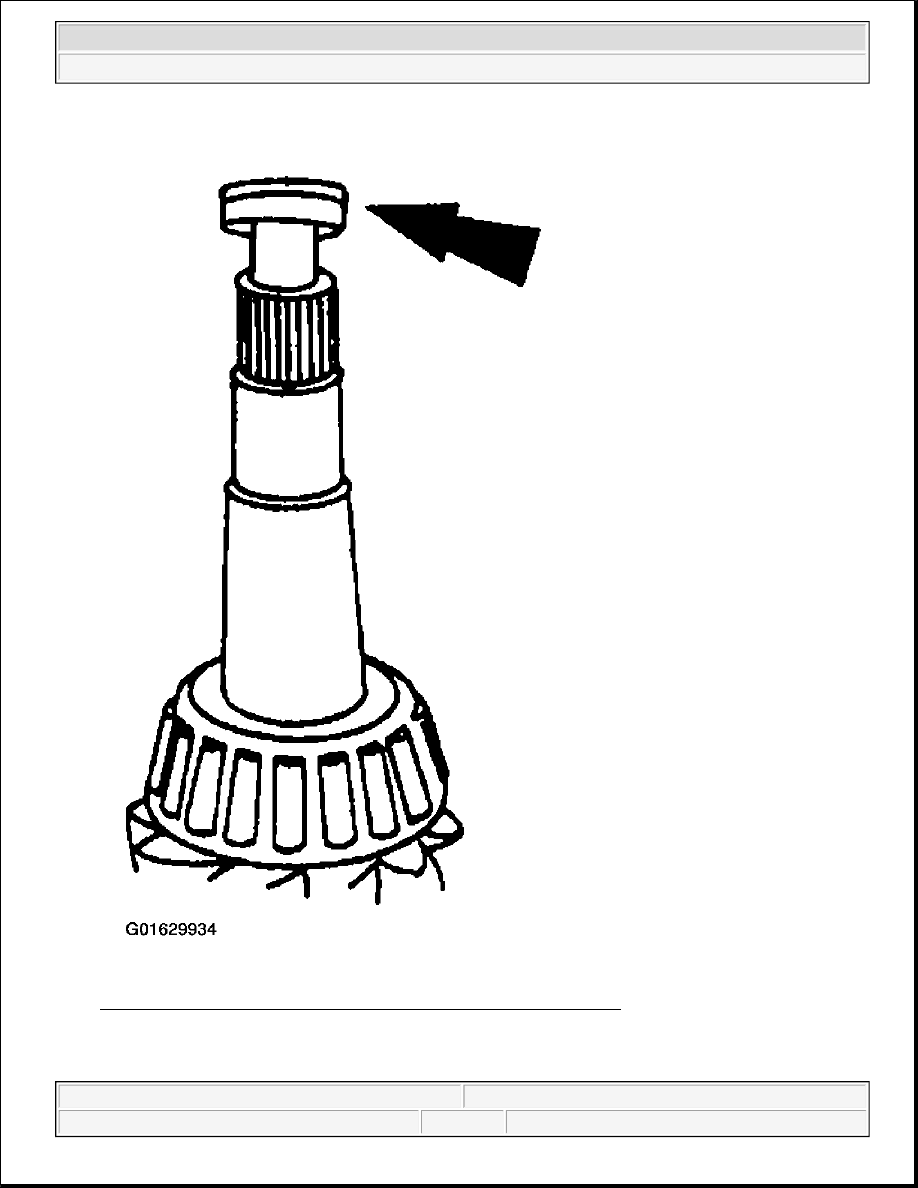

Fig. 117: Installing Drive Pinion Collapsible Spacer On Pinion Stem
Courtesy of FORD MOTOR CO.

12. Install the outer pinion bearing.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

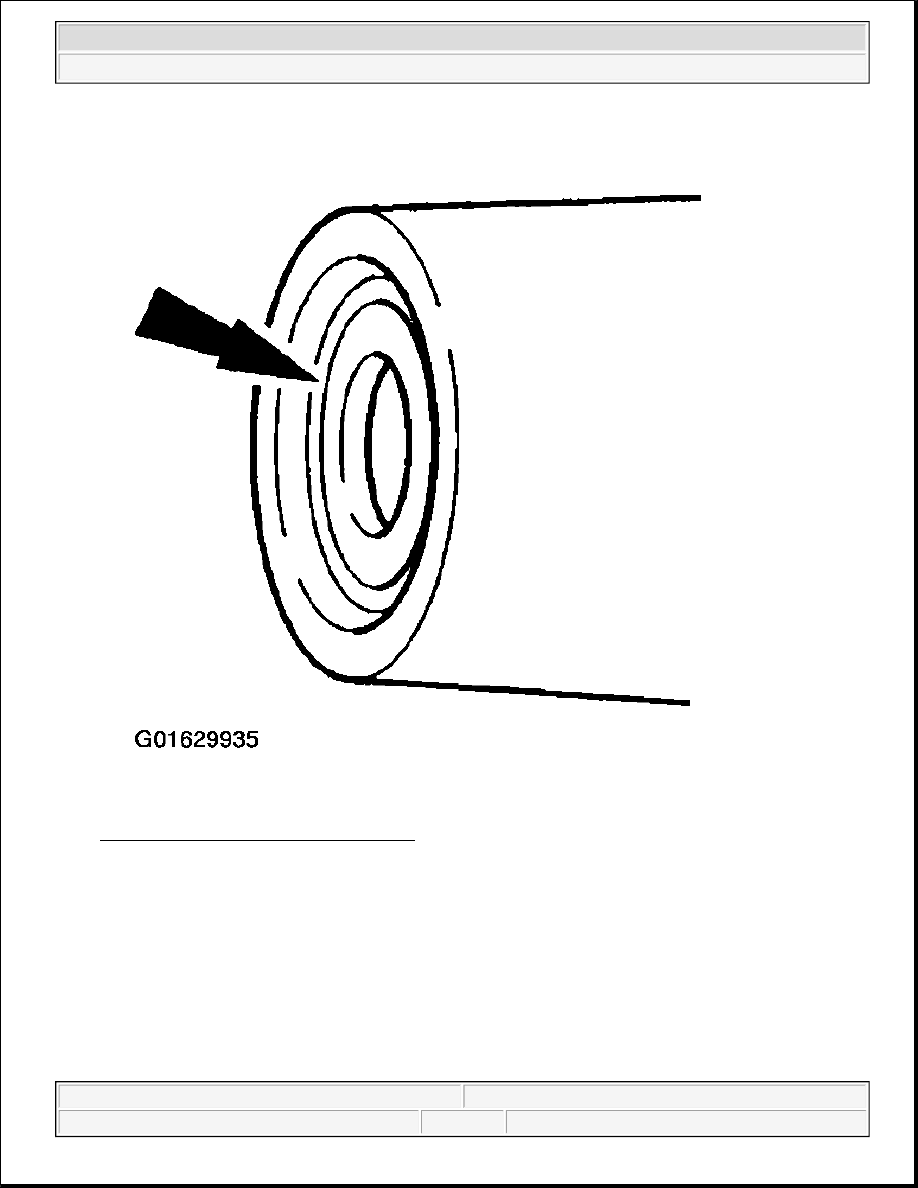

Fig. 118: Installing Outer Pinion Bearing
Courtesy of FORD MOTOR CO.

13. Install the slinger.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

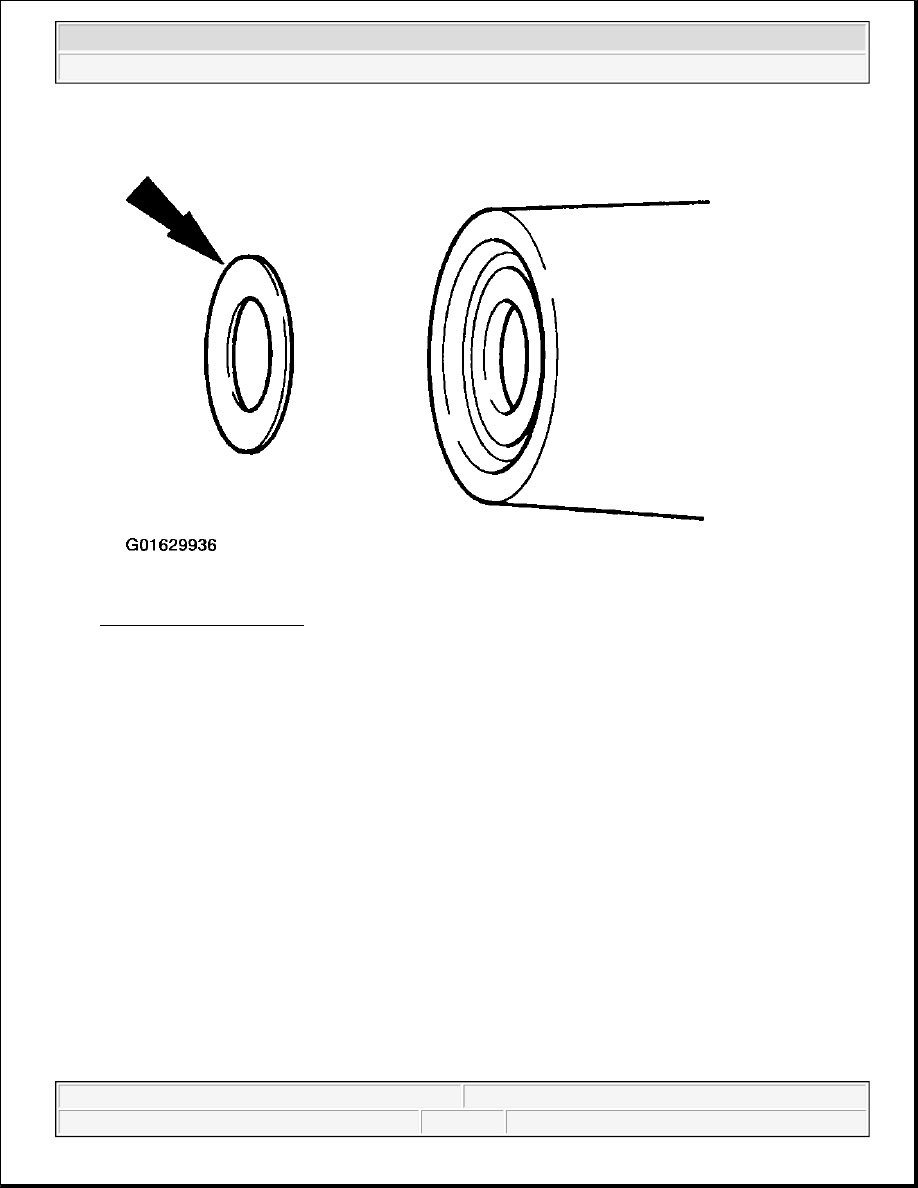

Fig. 119: Installing Slinger
Courtesy of FORD MOTOR CO.

NOTE:

Coat the lips of the pinion seal with Motorcraft SAE 75W-90 Premium 4x4
Front Axle Lubricant XY-75W90-TQL or equivalent meeting Ford
specification WSP-M2C201-A.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 120: Placing Pinion Seal On Special Tool
Courtesy of FORD MOTOR CO.

14. Place the pinion seal on the special tool.

15. Place the special tool and seal in the pinion seal bore and drive the seal into place.
