Ford F150 Pickup. Instruction - part 434

Fig. 94: Installing Secondary Piston Assembly
Courtesy of FORD MOTOR CO.

3. Carefully install the primary piston assembly.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



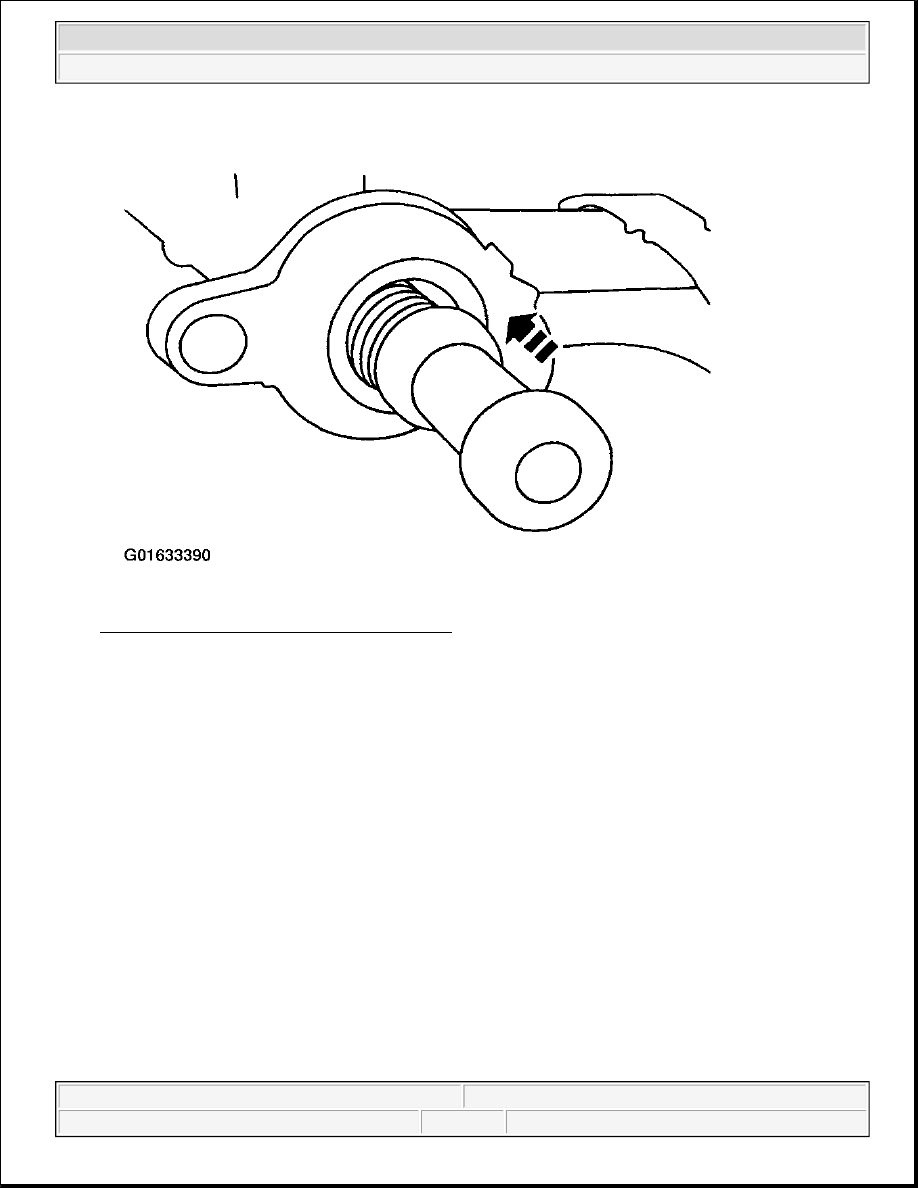

Fig. 95: Installing Primary Piston Assembly
Courtesy of FORD MOTOR CO.

4. Install the snap ring.

1. Depress the primary piston.

2. Install the snap ring.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 96: Installing Snap Ring
Courtesy of FORD MOTOR CO.

5. Install the brake master cylinder fluid control valve.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 97: Installing Brake Master Cylinder Fluid Control Valve
Courtesy of FORD MOTOR CO.

6. If equipped, install the brake pressure switch.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup
