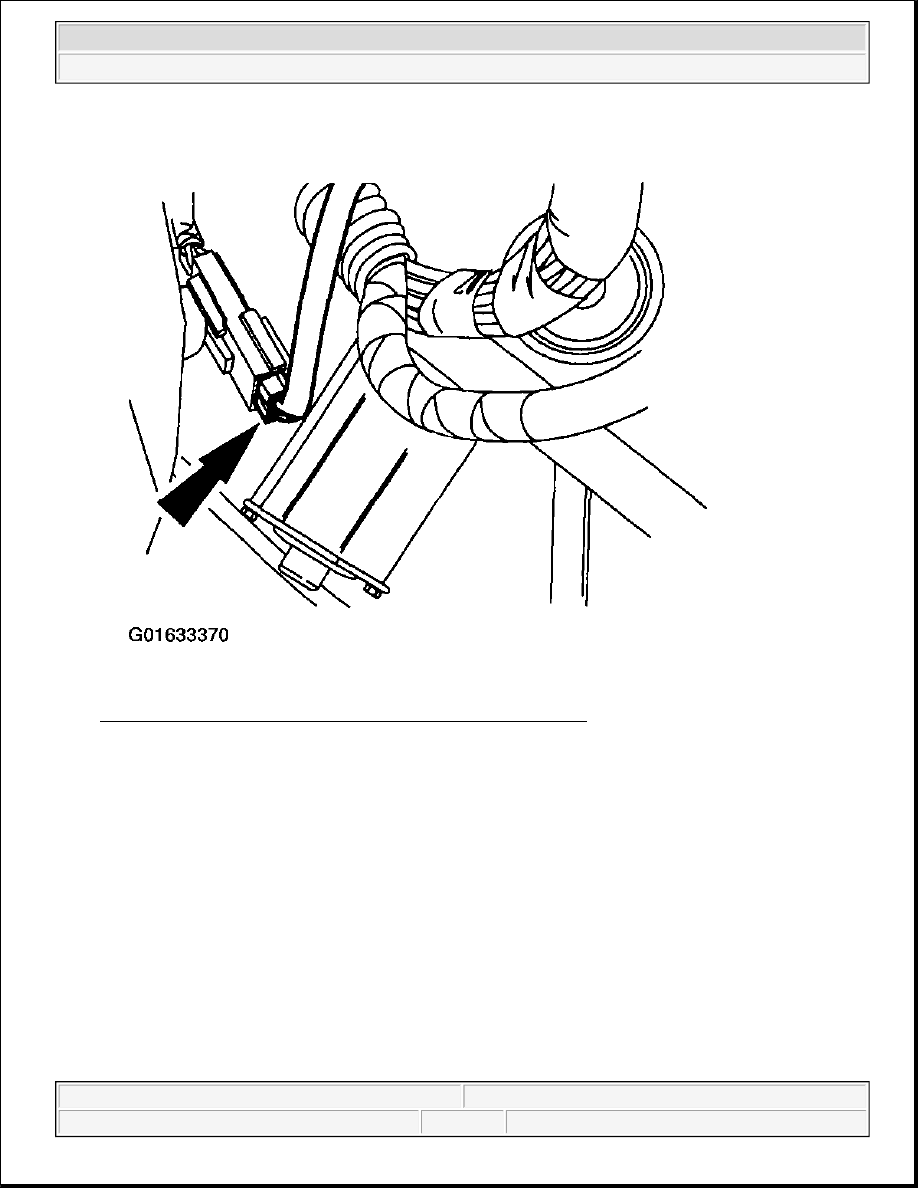

Fig. 74: Disconnecting Brake Pedal Motor Electrical Connector
Courtesy of FORD MOTOR CO.

2. Remove the brake pedal motor bolts.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

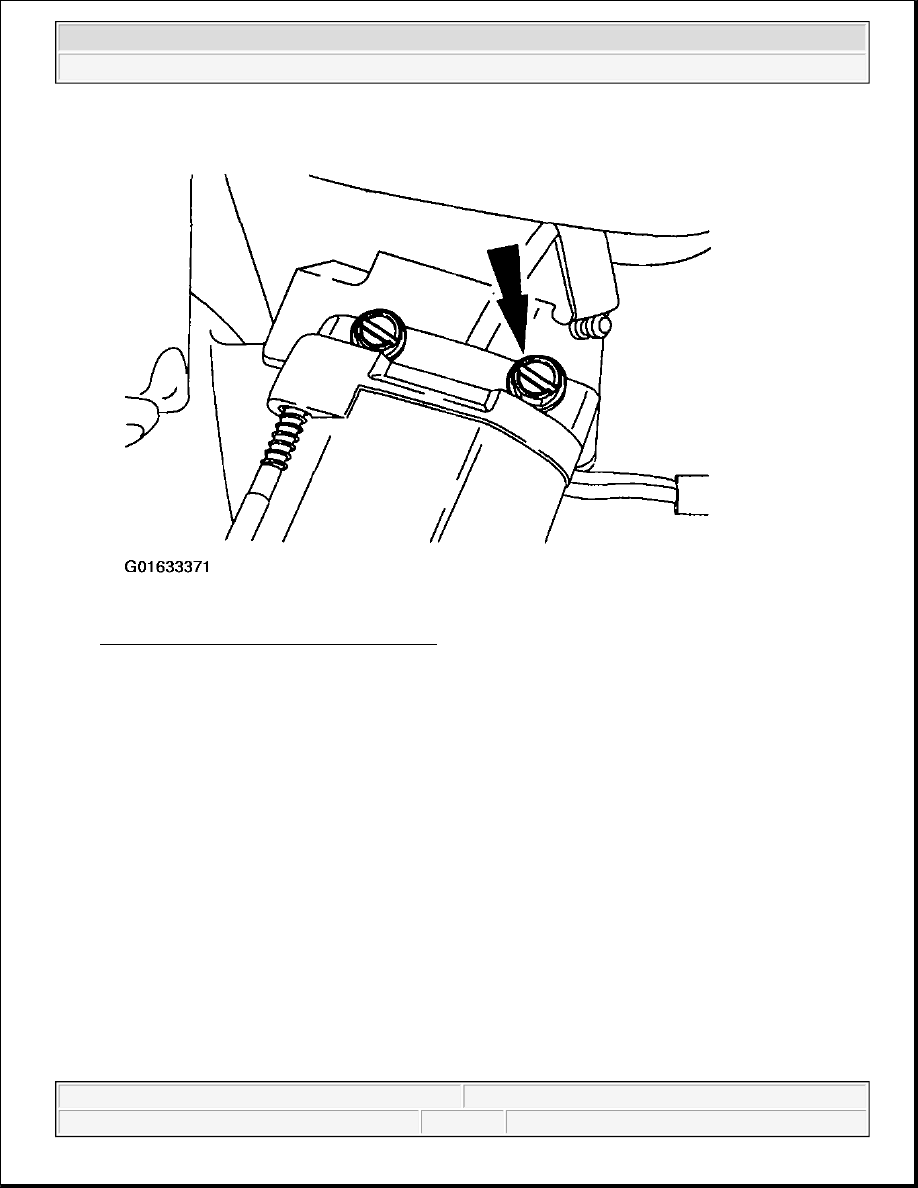

Fig. 75: Removing Brake Pedal Motor Bolts
Courtesy of FORD MOTOR CO.

3. Remove the brake pedal to motor cable (2C431).



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

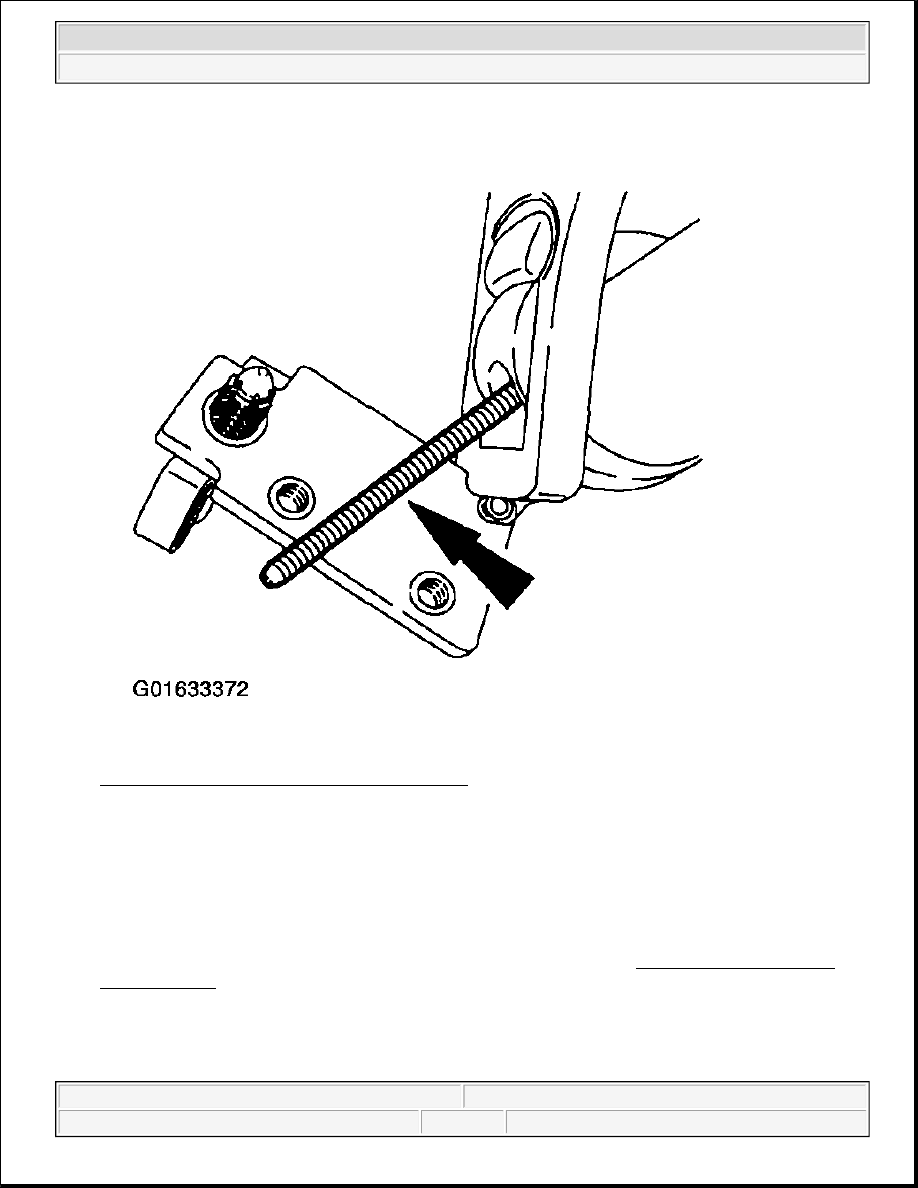

Fig. 76: Removing Brake Pedal To Motor Cable
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.

BRAKE PEDAL CONTROL SWITCH

Removal & Installation

1. Disconnect the battery negative cable. For additional information, refer to BATTERY, MOUNTING

AND CABLES .

CAUTION: Use care not to damage the instrument panel when removing the

headlamp switch.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

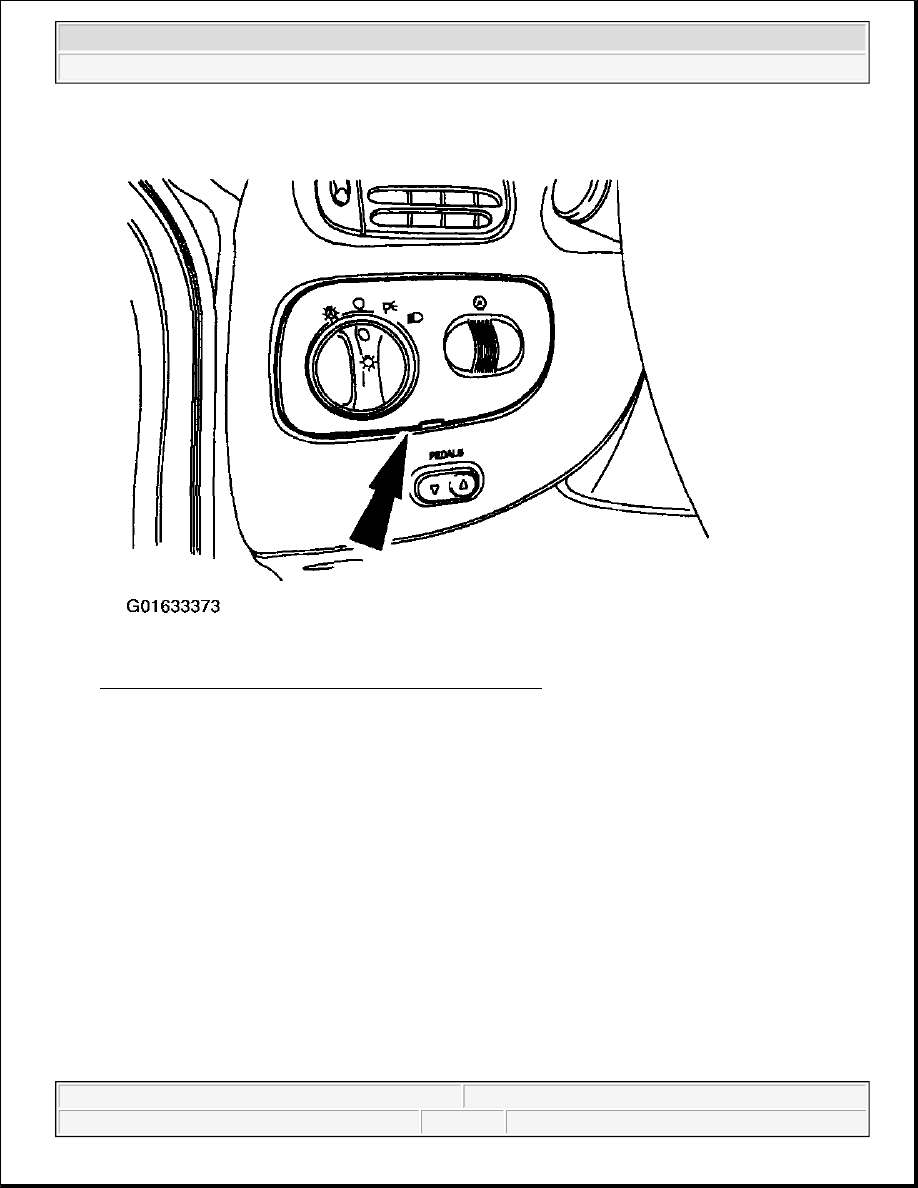

Fig. 77: Prying Headlamp Switch From Instrument Panel
Courtesy of FORD MOTOR CO.

2. Using a small screwdriver, pry the headlamp switch from the instrument panel.

3. Disconnect the electrical connectors and remove the headlamp switch.
