Ford F150 Pickup. Instruction - part 426

Fig. 62: Positioning Accelerator Pedal Using Brake Pedal Motor (Backward)
Courtesy of FORD MOTOR CO.

9. Position the accelerator pedal using the brake pedal motor, all the way forward or backward depending on

the position of the new brake pedal.

10. Remove the brake pedal-to-accelerator pedal cable from the accelerator pedal, by pulling on the cable

retainer.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

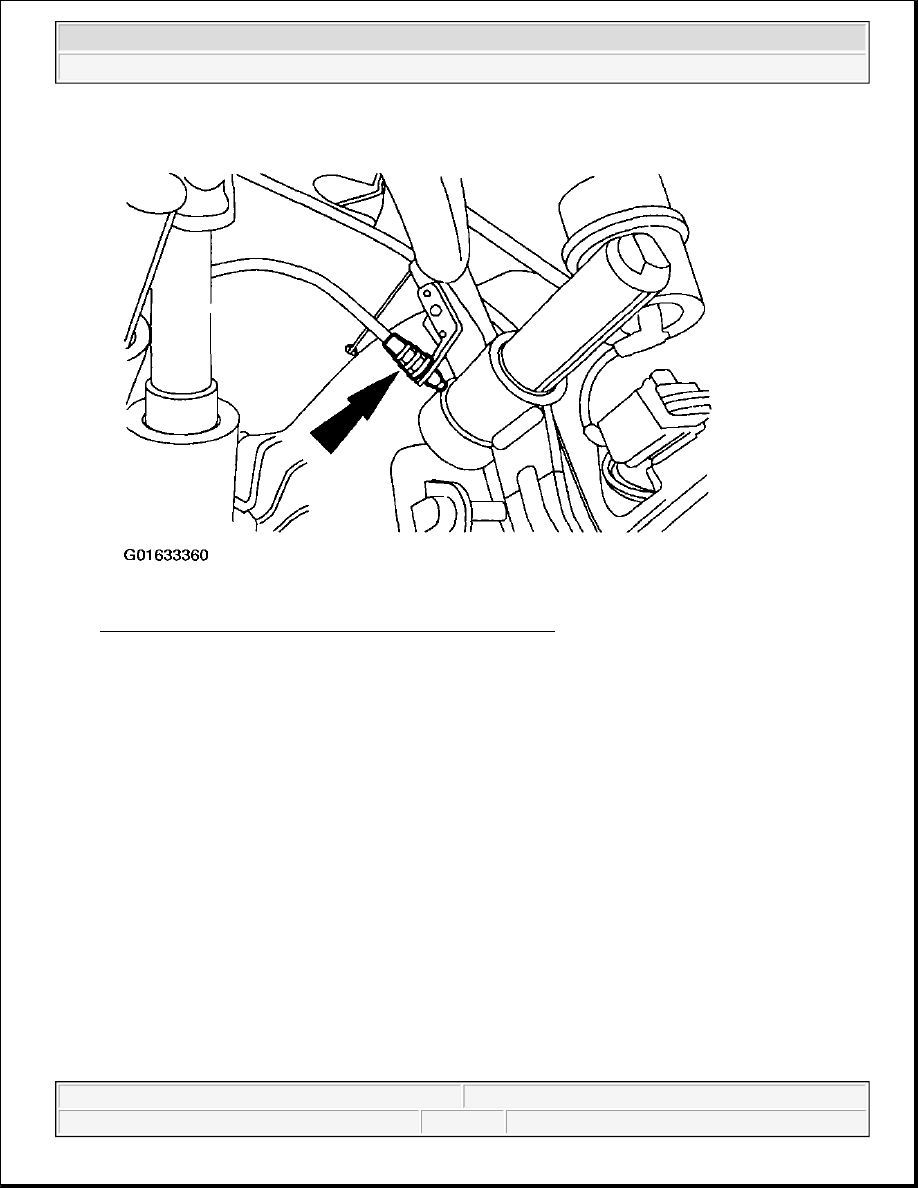

Fig. 63: Removing Brake Pedal-To-Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.

11. Position the brake pedal in the same position as the accelerator pedal, using the brake pedal motor.

12. Install the brake pedal-to-accelerator pedal cable in the accelerator pedal.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

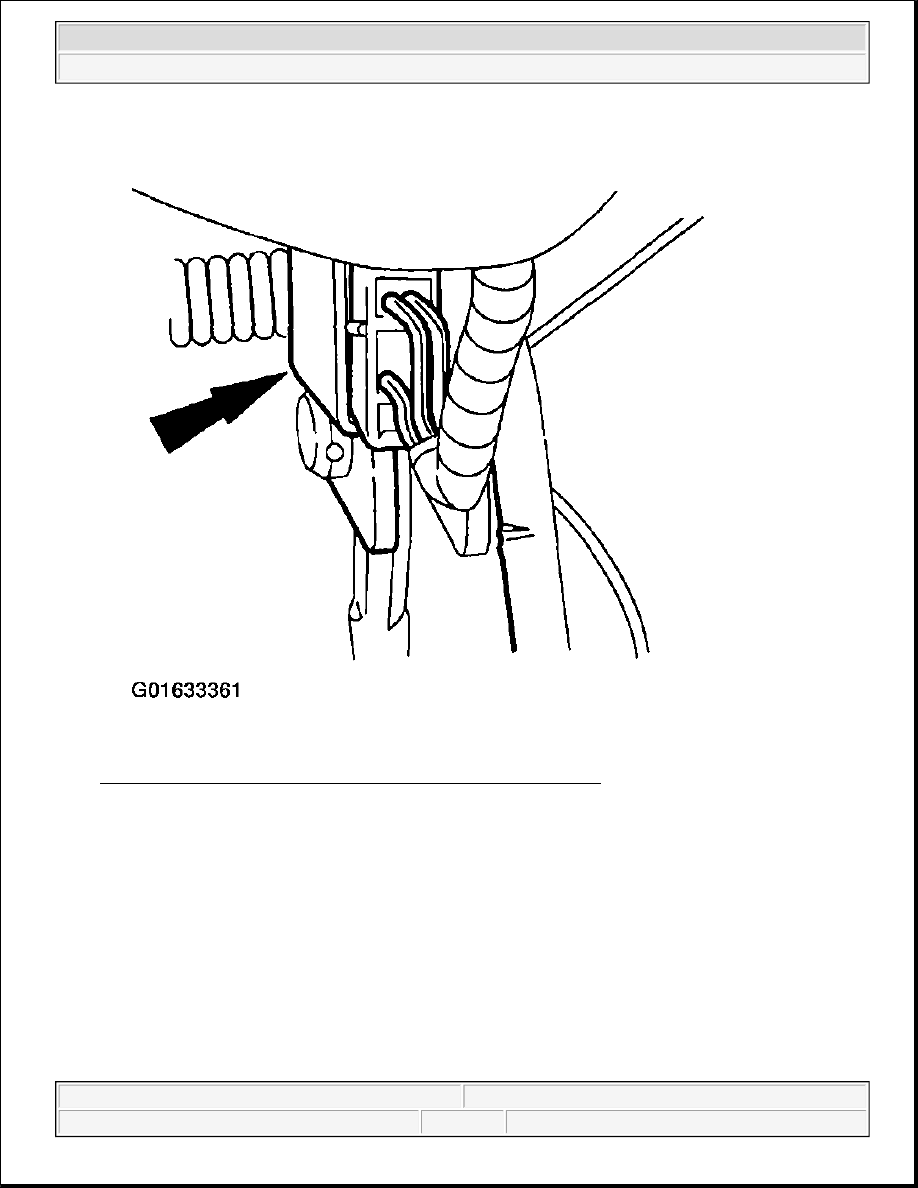

Fig. 64: Installing Brake Pedal-To-Accelerator Pedal Cable
Courtesy of FORD MOTOR CO.

13. If installing a new accelerator pedal, the accelerator pedal will come in the forward or rearward position.

Before installing the cable, move the brake pedal with the motor so it is in the same position as the
accelerator pedal.

14. Slide the stoplight switch, booster push rod (2005) and the bushing (2471) on the brake pedal pin.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 65: Installing Stoplight Switch, Booster Push Rod & Bushing
Courtesy of FORD MOTOR CO.

15. Install the stoplight switch hairpin clip.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup
