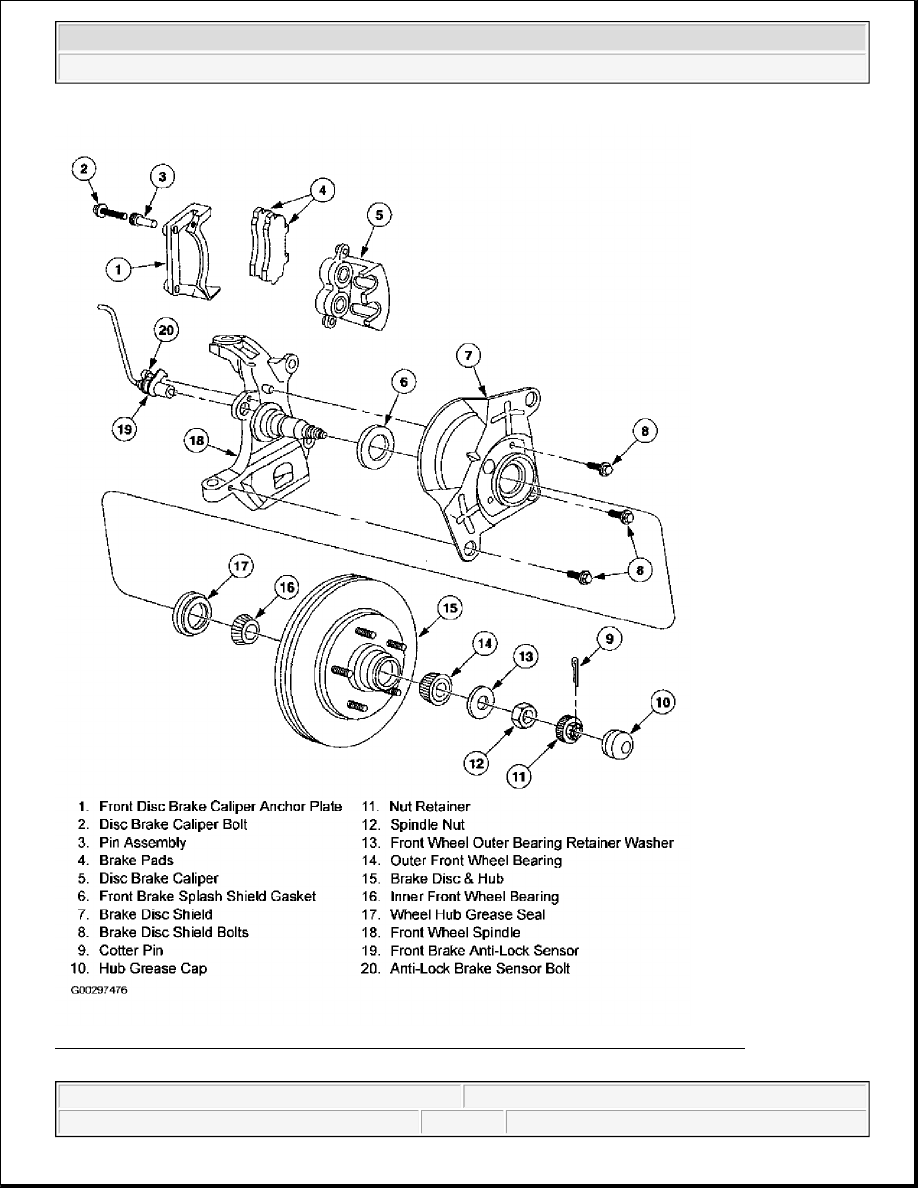

Fig. 6: Identifying Front Brake Components (2WD Blackwood)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

Fig. 7: Identifying Front Brake Components (2WD F150 Pickup & F150 Heritage Pickup)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

Fig. 8: Identifying Front Brake Components (4WD F150 Pickup & F150 Heritage Pickup)
Courtesy of FORD MOTOR CO.

Rear Disc Brakes

2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

Rear disc brakes are standard on Blackwood and is optional on F150 Pickup and F150 Heritage Pickup. All
models are equipped with solid, full-cast, drum-in-hat type. The rear disc brake caliper is equipped with a
riveted spring clip that secures it to either the rear disc brake caliper piston or the rear disc brake caliper
housing. The inboard and outboard brake pads are not interchangeable. See Fig. 9 or Fig. 10 .

Fig. 9: Identifying Rear Disc Brake Components (Blackwood)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup
