Ford F150 Pickup. Instruction - part 358

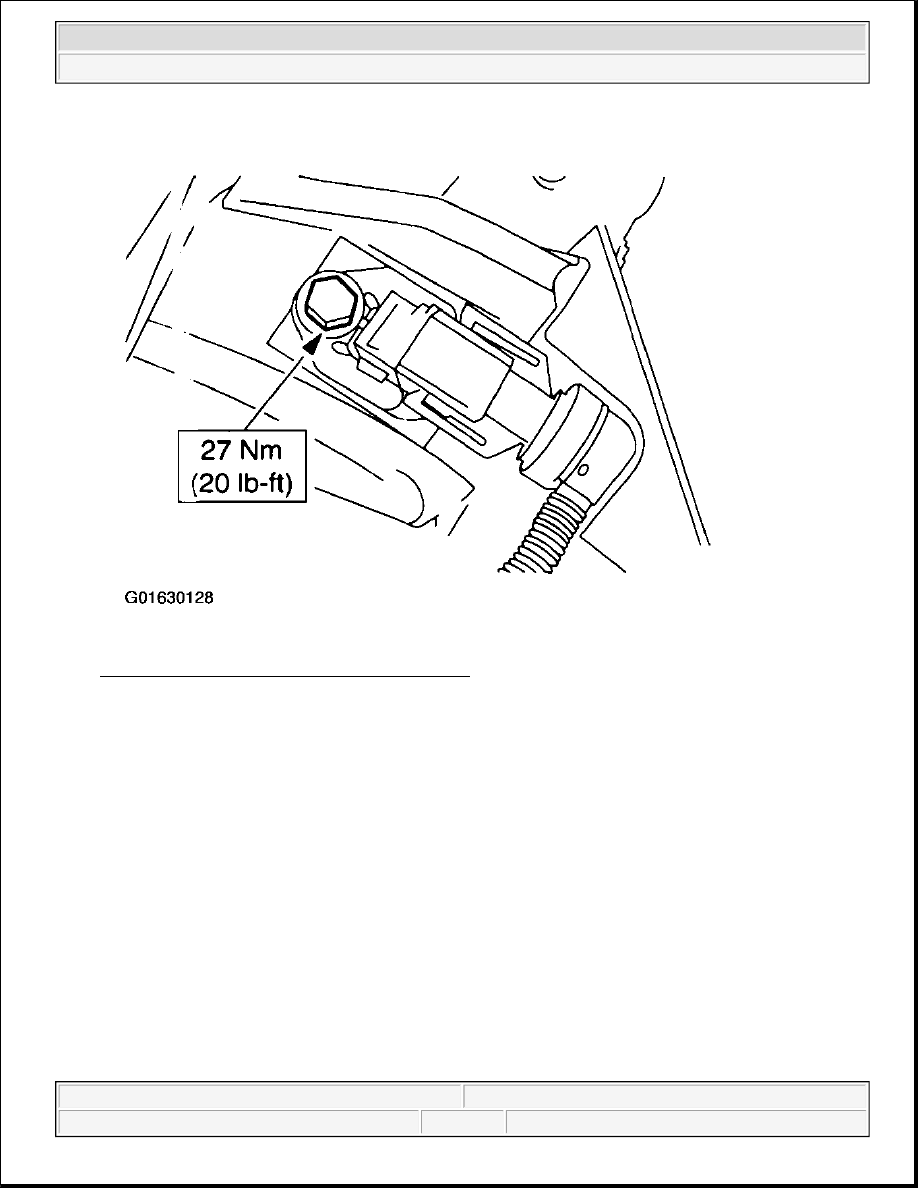

Fig. 55: Installing Rear Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.

3. To install, reverse the removal procedure.

SENSOR - FRONT, 4X2

Removal

1. Disconnect the front anti-lock brake sensor electrical connector.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



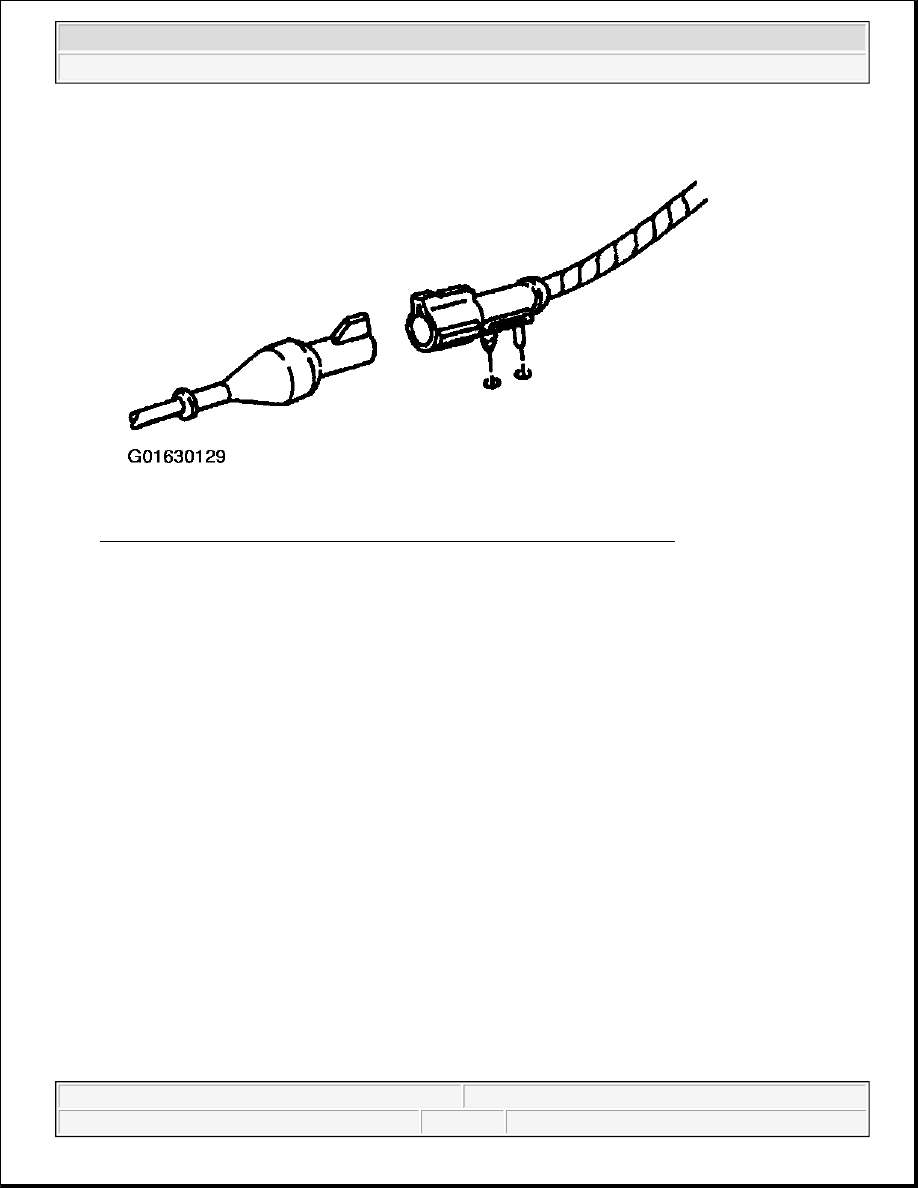

Fig. 56: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

2. Separate the sensor cable from the brake hose clips.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

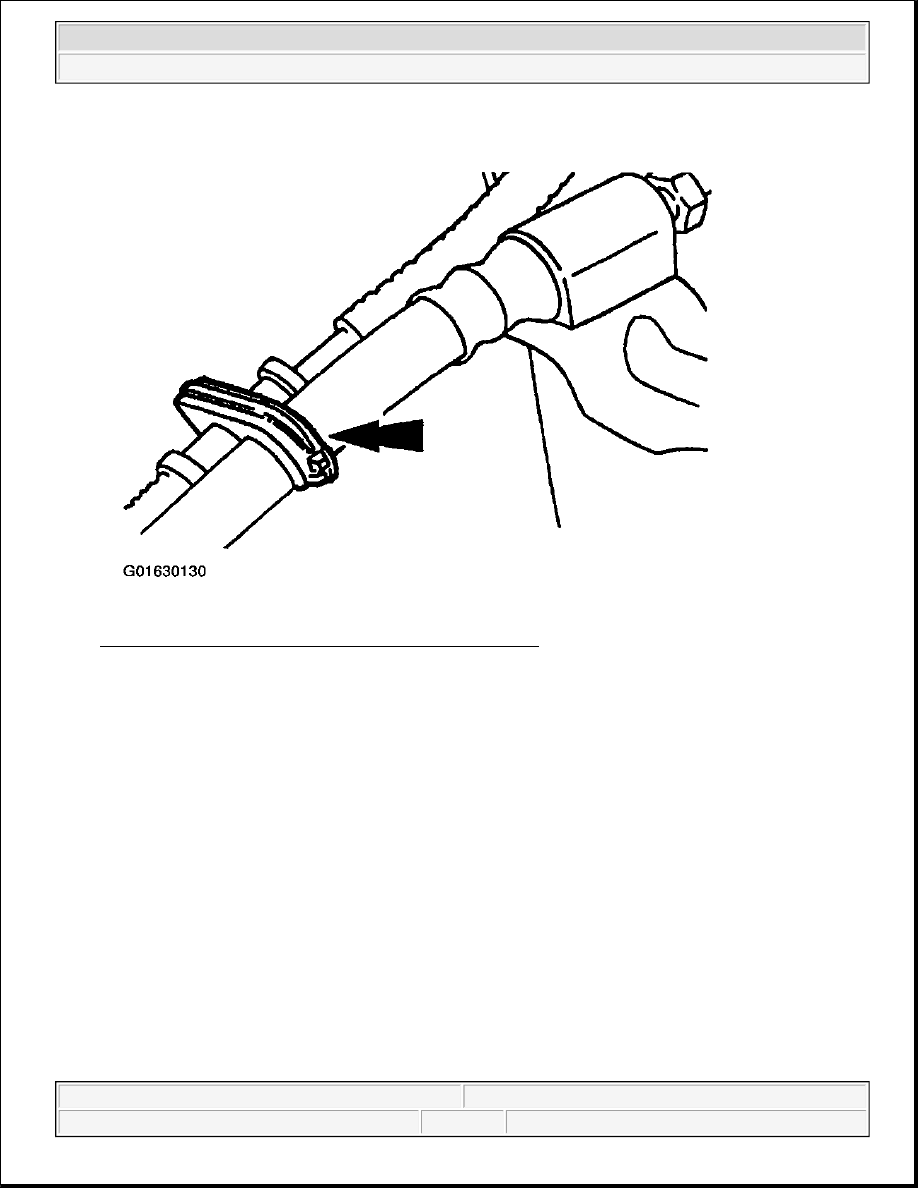

Fig. 57: Separating Sensor Cable From Brake Hose Clips
Courtesy of FORD MOTOR CO.

3. Remove the (A) front anti-lock brake sensor bolt and the (B) front anti-lock brake sensor.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

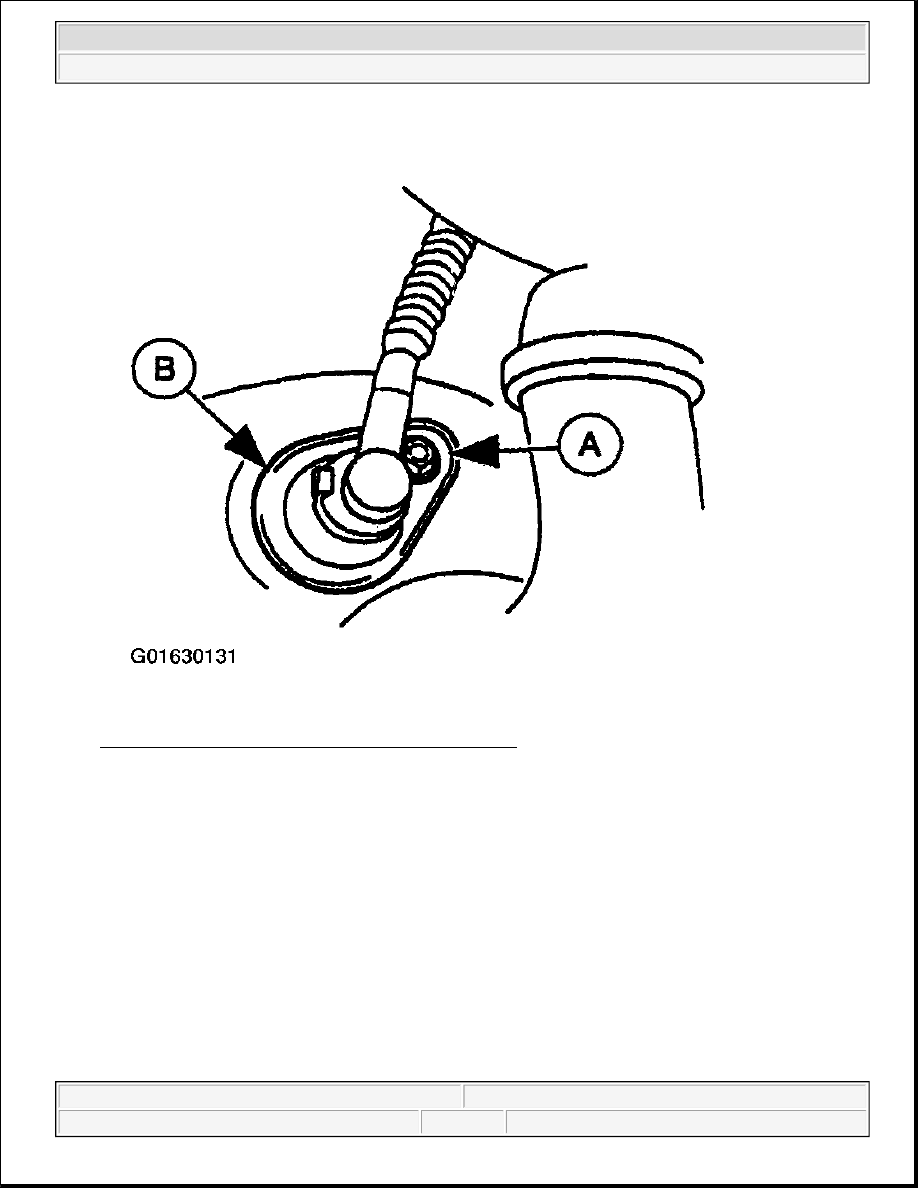

Fig. 58: Removing Front Anti-Lock Brake Sensor Bolt
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.
