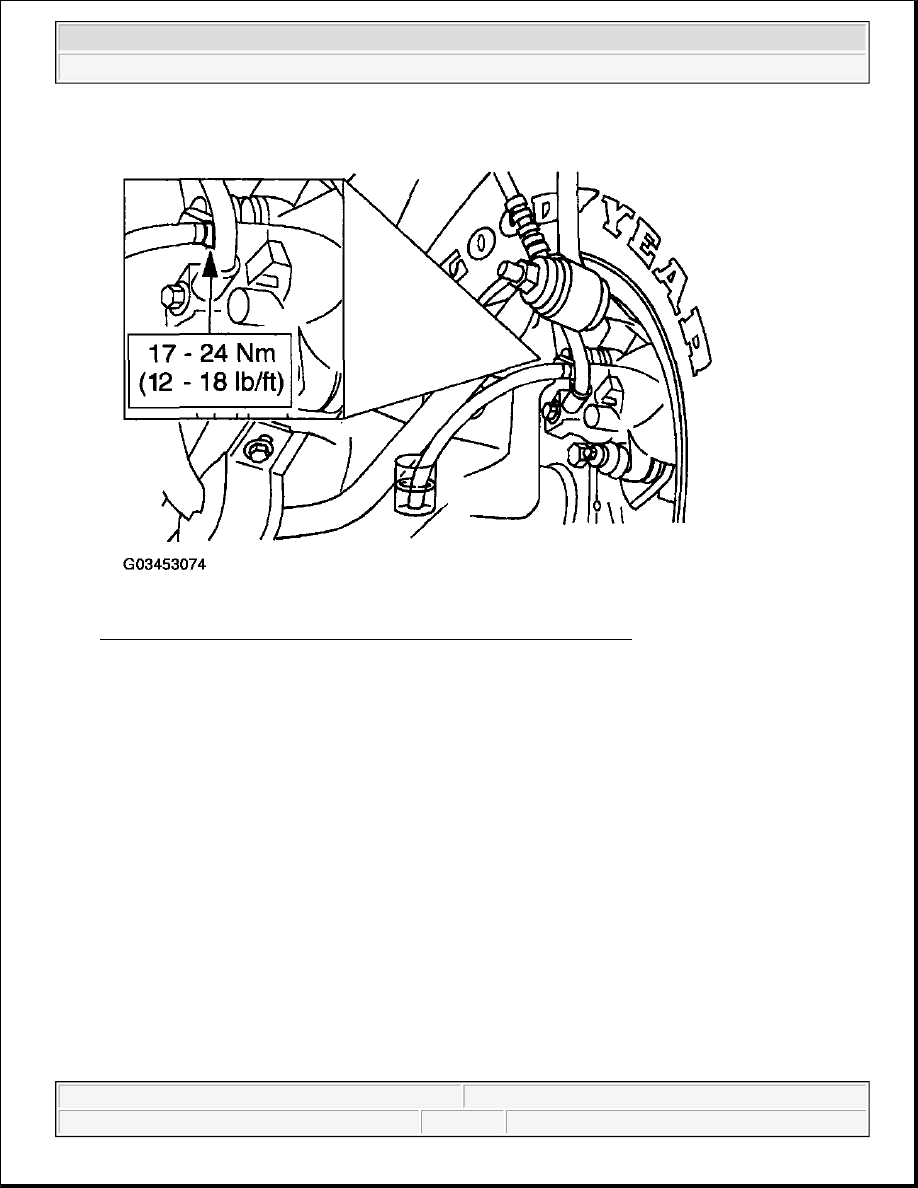

Fig. 17: Identifying Rubber Drain Tube Connected To Bleeder Screw
Courtesy of FORD MOTOR CO.

5. Repeat Steps 2, 3 and 4 for the LH rear bleeder screw, the RH front disc brake caliper (2B120) bleeder

screw, and the LH front disc brake caliper bleeder screw, in that order.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Brake System - General Information - F150 Pickup

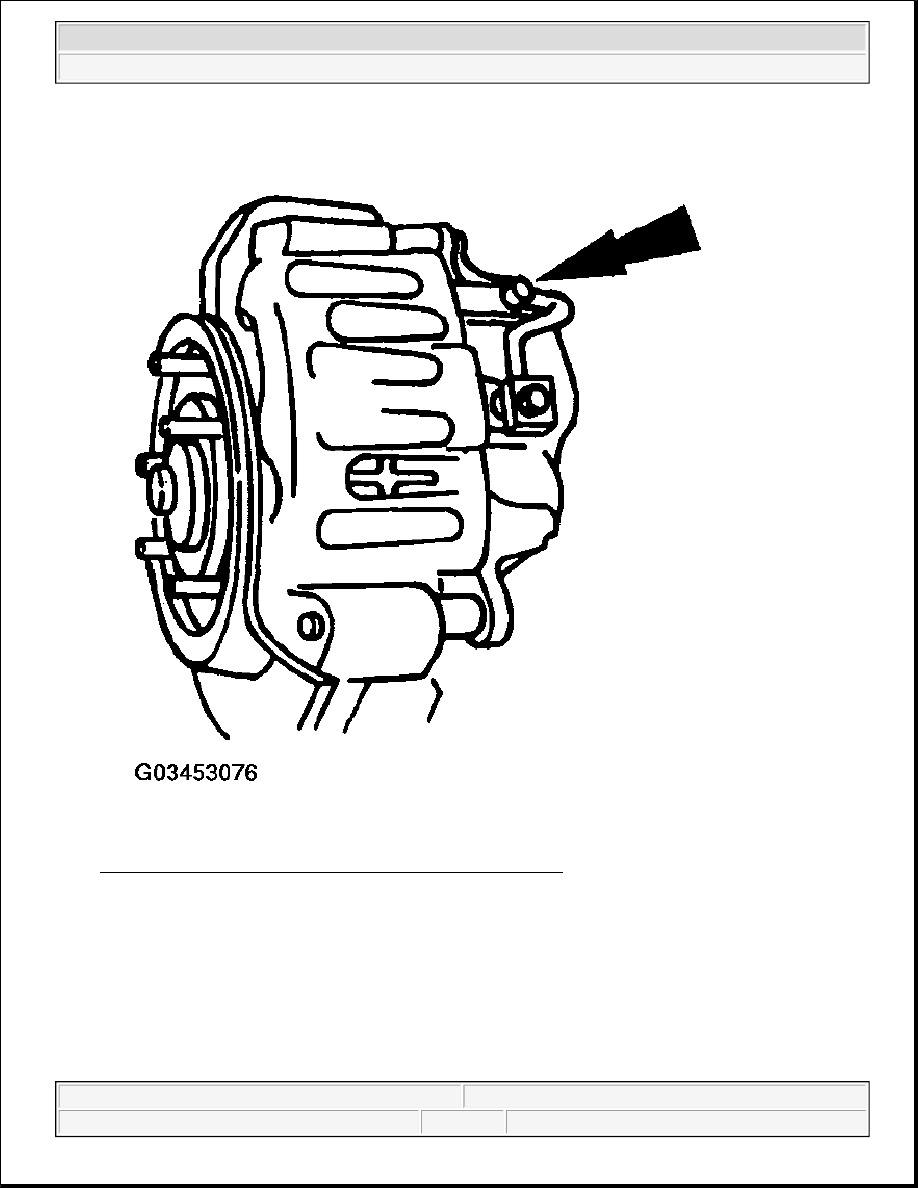

Fig. 18: Identifying Front Disc Brake Caliper Bleeder Screw
Courtesy of FORD MOTOR CO.

6. Connect the scan tool DCL cable adapter into the vehicle data link connector (DLC) under the dash, and

follow the scan tool instructions.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Brake System - General Information - F150 Pickup

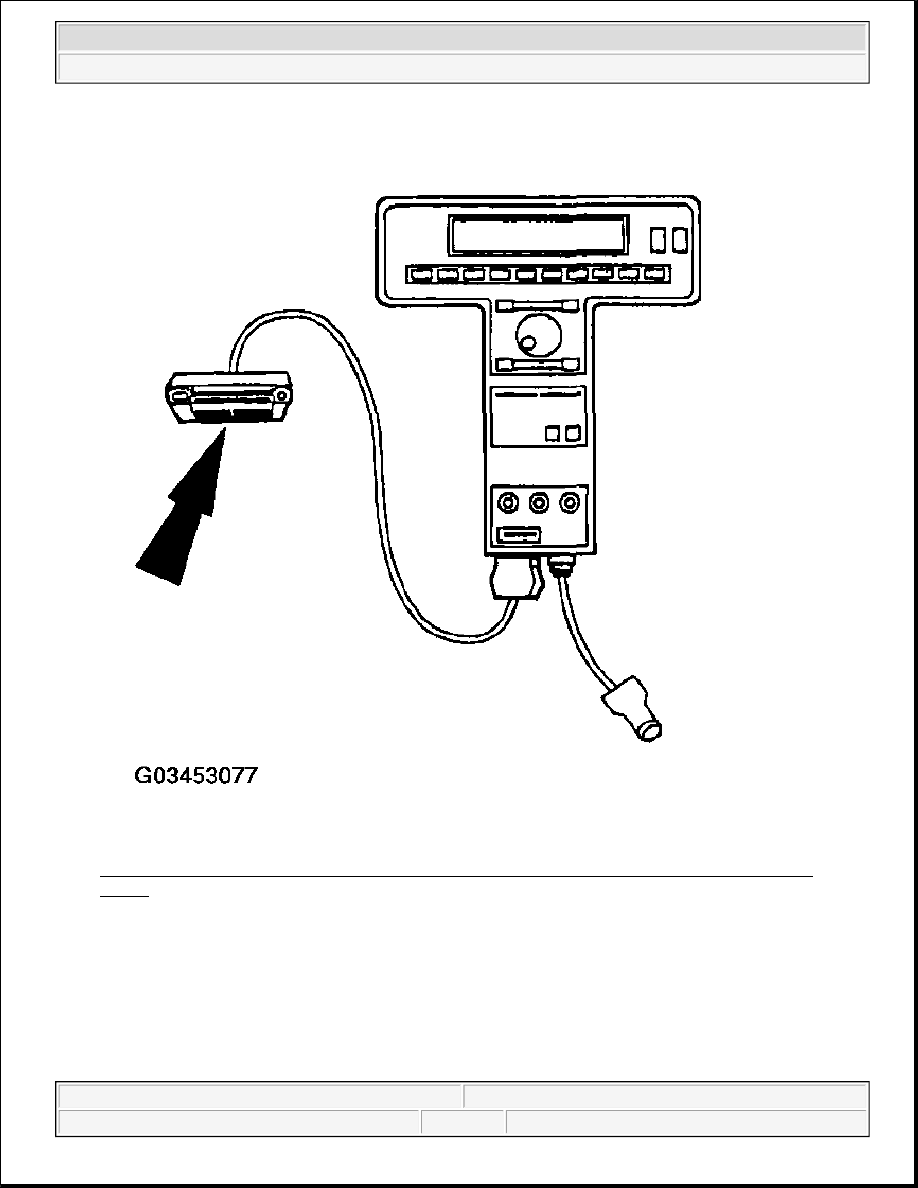

Fig. 19: Connecting Scan Tool DCL Cable Adapter Into Vehicle Data Link Connector (DLC)
Under
Courtesy of FORD MOTOR CO.

7. Repeat the system bleed procedure as outlined in Steps 1 through 5.

Caliper

WARNING:

Use of any other than approved DOT 3 brake fluid will cause permanent
damage to brake components and will render the brakes inoperative.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Brake System - General Information - F150 Pickup



WARNING:

Brake fluid contains polyglycol ethers and polyglycols. Avoid contact
with eyes. Wash hands thoroughly after handling. If brake fluid contacts
eyes, flush eyes with running water for 15 minutes. Get medical attention
if irritation persists. If taken internally, drink water and induce vomiting.
Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted or plastic surfaces. If brake fluid is spilled

onto a painted or plastic surface, immediately wash it with water.

CAUTION: Do not allow the master cylinder to run dry during the bleeding operation.

Keep the master cylinder filled with the specified brake fluid. Never use
brake fluid that has been drained from the hydraulic system.

NOTE:

It is not necessary to do a complete brake system bleed if only the disc
brake caliper (2B120) was disconnected.
