Fig. 122: Identifying Windshield Glass
Courtesy of FORD MOTOR CO.

Removal

WARNING:

To prevent glass splinters from entering eyes or cutting hands, wear
safety glasses and heavy gloves when cutting the glass from the vehicle.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



1. Remove the cowl top vent panels (022A68. Refer to COWL -- GRILLE .

2. If equipped, remove the overhead console.

3. Remove the LH and RH A-pillar assist handles.

1. Remove the fours screw covers and the four screws.

2. Remove the two A-pillar assist handles.

Fig. 123: Removing Two A-Pillar Assist Handles
Courtesy of FORD MOTOR CO.

4. Remove the LH and RH windshield side garnish moldings (03598).



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 124: Removing LH And RH Windshield Side Garnish Moldings
Courtesy of FORD MOTOR CO.

5. Remove the interior rear view mirror (17700). Refer to INTERIOR REAR VIEW MIRROR .

6. Remove the RH and LH sun visors.

1. Remove the four screws.

2. Remove the sun visors.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

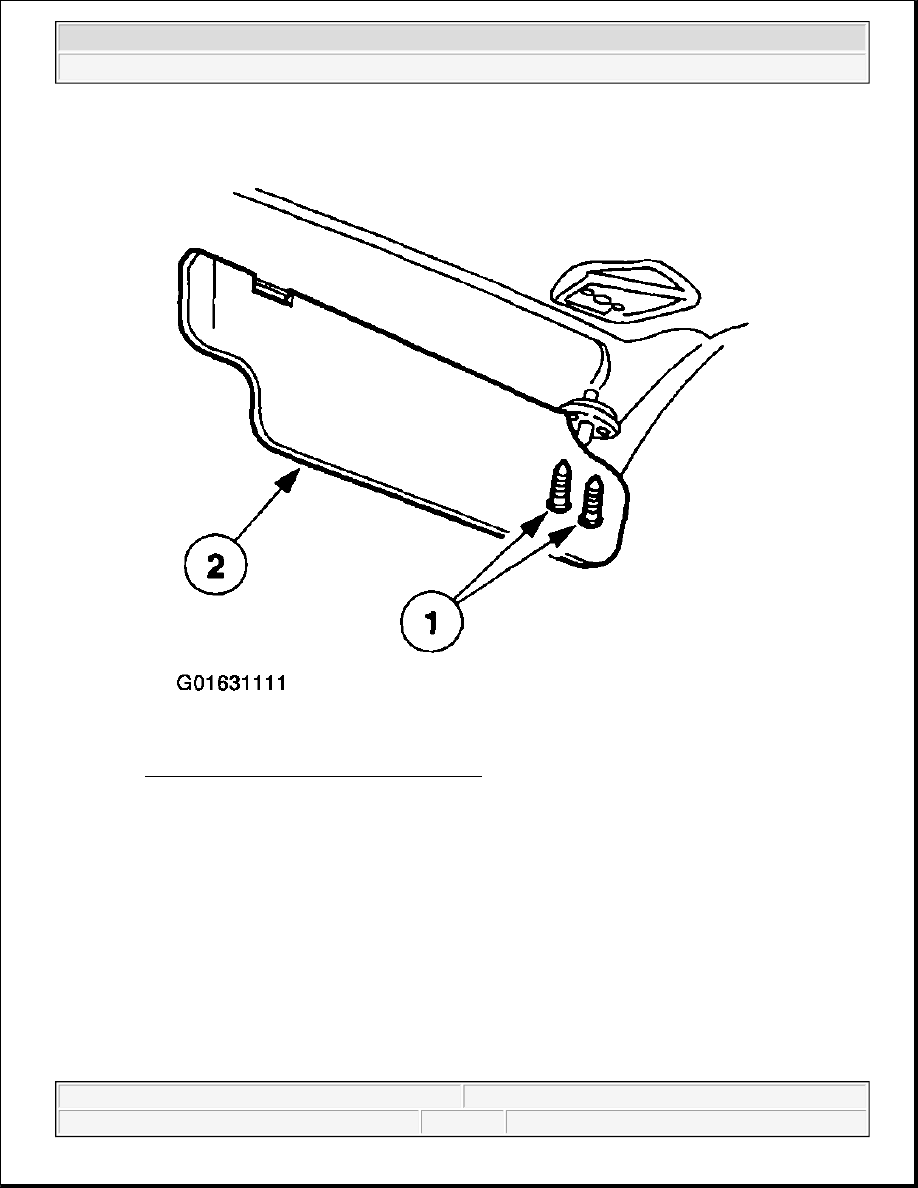

Fig. 125: Removing RH And LH Sun Visors
Courtesy of FORD MOTOR CO.

7. Remove the LH and RH sun visor clips.

1. Remove the two screws.

2. Remove the sun visor clips.
