Fig. 341: Removing Head Restraint
Courtesy of FORD MOTOR CO.

6. Using an appropriate pry tool, press the release tab in, remove the head restraint rod guides and discard.

z

Release tab is located beneath the head restraint release tab.

NOTE:

The LH and RH head restraint rod guides are not interchangeable.

NOTE:

Install new units during reassembly. The LH and RH head restraint rod
guides will be damaged during removal.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 342: Releasing Tab Is Located Beneath Head Restraint Release Tab
Courtesy of FORD MOTOR CO.

NOTE:

The LH and RH tower cap covers are not interchangeable.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 343: Removing LH, RH And Front Tower Cap Screw Covers
Courtesy of FORD MOTOR CO.

7. Remove the LH, RH and front tower cap screw covers. Remove four tower cap attachment screws.

NOTE:

Observe retainer bracket orientation. Do not reverse bracket during
assembly.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

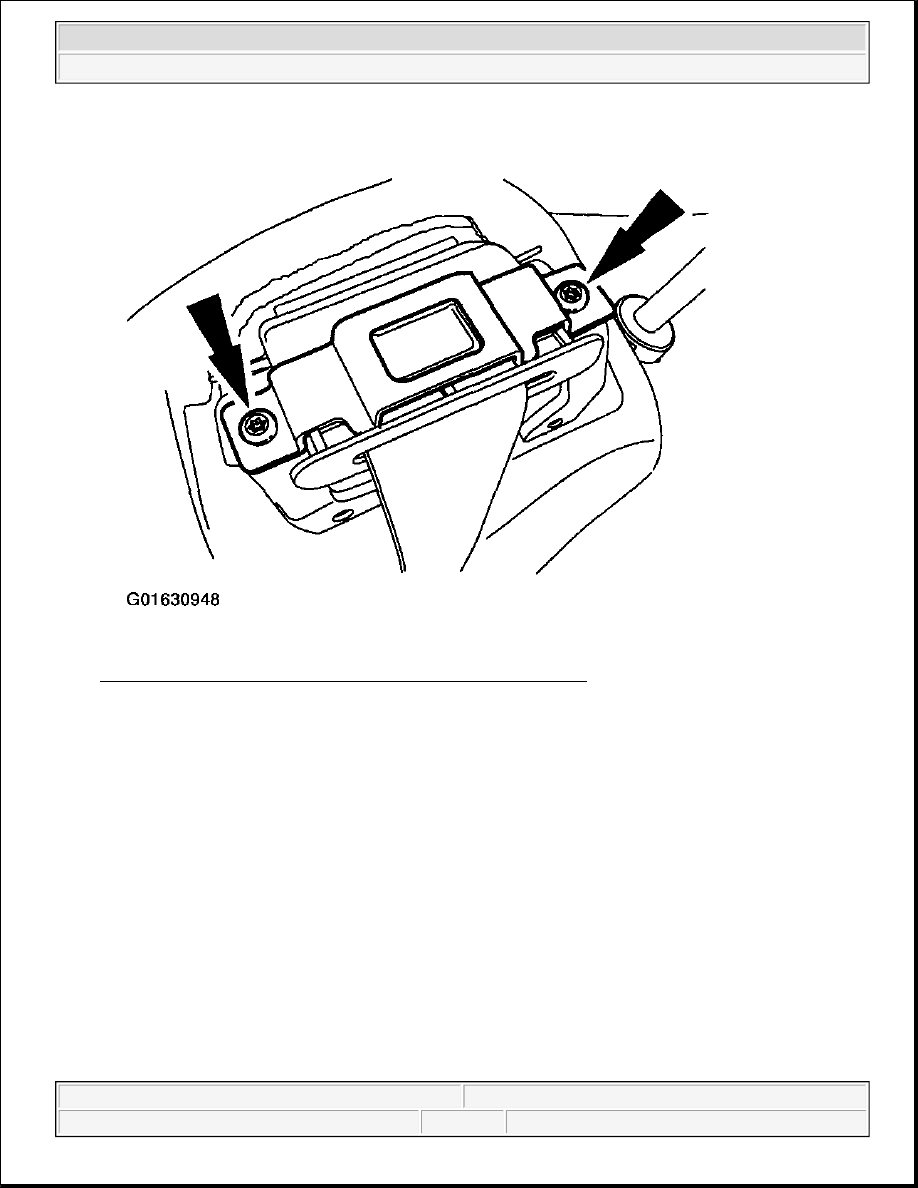

Fig. 344: Removing Two Retainer Bracket Screws And Bracket
Courtesy of FORD MOTOR CO.

8. Remove the two retainer bracket screws and the bracket.

9. Separate and remove the outer and the front safety belt web guides.
