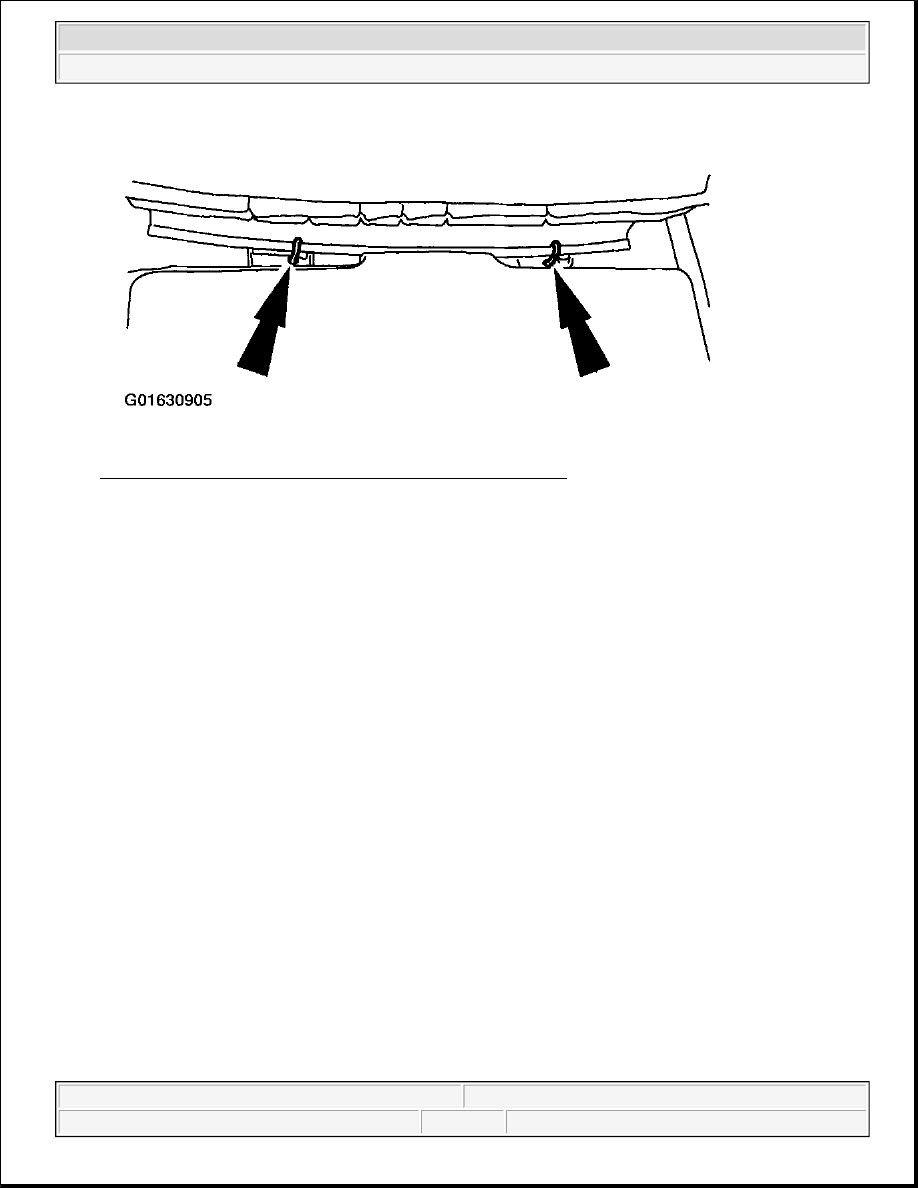

Fig. 301: Installing Hog Rings In Center Of Seat Trim Cover
Courtesy of FORD MOTOR CO.

3. Stretch the seat fabric over the foam cushion while attaching the hook and loop fasteners.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 302: Attaching Hook And Loop Fasteners
Courtesy of FORD MOTOR CO.

WARNING:

The metal edges of seat cushion pan can be sharp.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 303: Attaching J-Clips
Courtesy of FORD MOTOR CO.

4. Attach the J-clips.

Vehicles with heated seats

5. Install the heated seat module in the mounting bracket. Verify that the locking tab is correctly seated.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 304: Installing Heated Seat Module In Mounting Bracket
Courtesy of FORD MOTOR CO.

All vehicles

6. Install the front seat cushion assembly. Refer to FRONT SEAT CUSHION-SEAT INTEGRATED

RESTRAINTS (SIR) .

7. Install the front seat. Refer to FRONT SEAT-WITH SEAT INTEGRATED RESTRAINTS (SIR) .

8. Reactivate the supplemental restraint system (SRS) deactivation/reactivation procedure. Refer to

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the front seat removal
and installation procedure.

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, notes and instructions in the supplemental
restraint system (SRS) deactivation/reactivation procedure.
