5. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS).

Refer to SYSTEM OPERATION CHECK .

SEAT LATCH - SUPERCREW REAR SEAT

Removal and Installation

1. Disassemble the rear seat cushion. Refer to REAR SEAT CUSHION-60/40 BENCH AND QUAD

BUCKET, SUPERCREW .

2. Rod latch control to latch is a slip-fit, pull to separate.

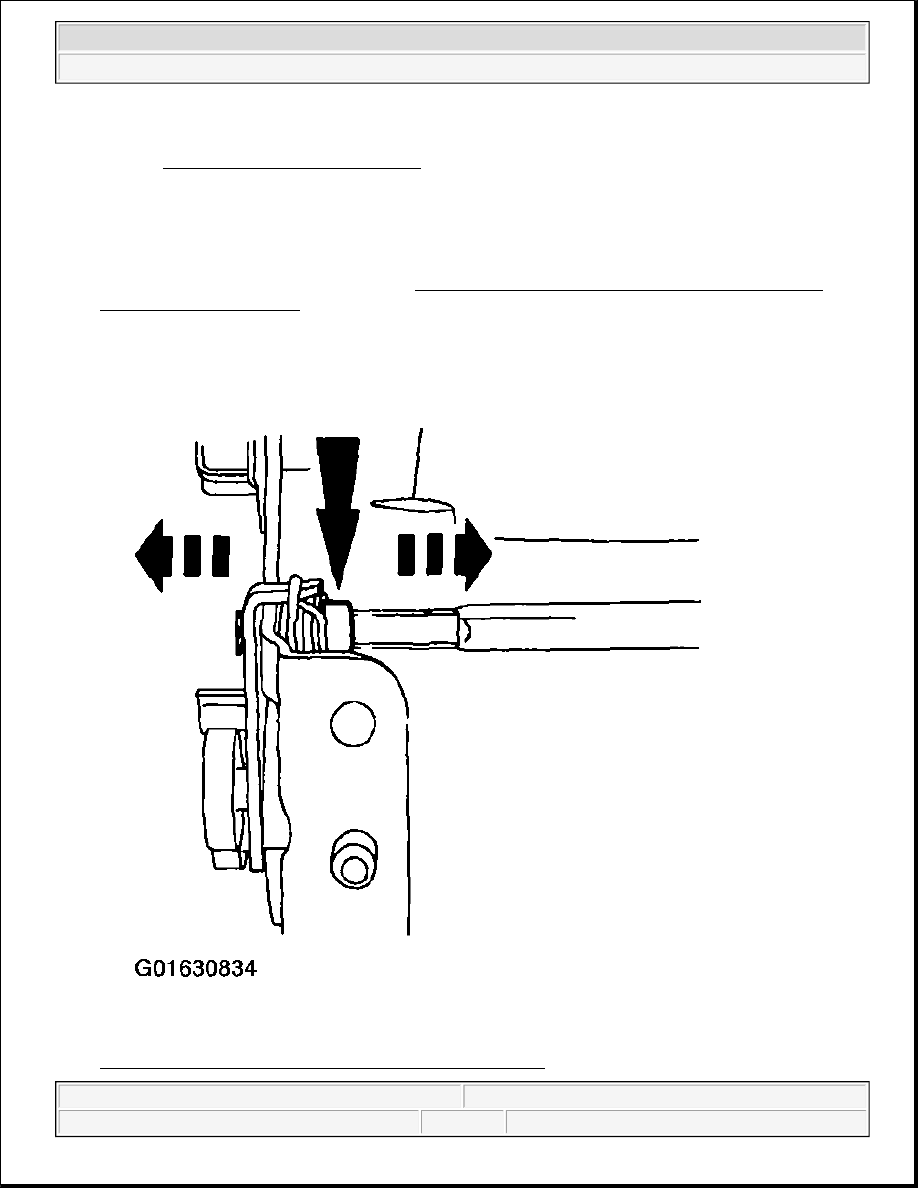

Fig. 230: Identifying Rod Latch Control To Latch Slip-Fit



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Courtesy of FORD MOTOR CO.

3. Remove the bolts.

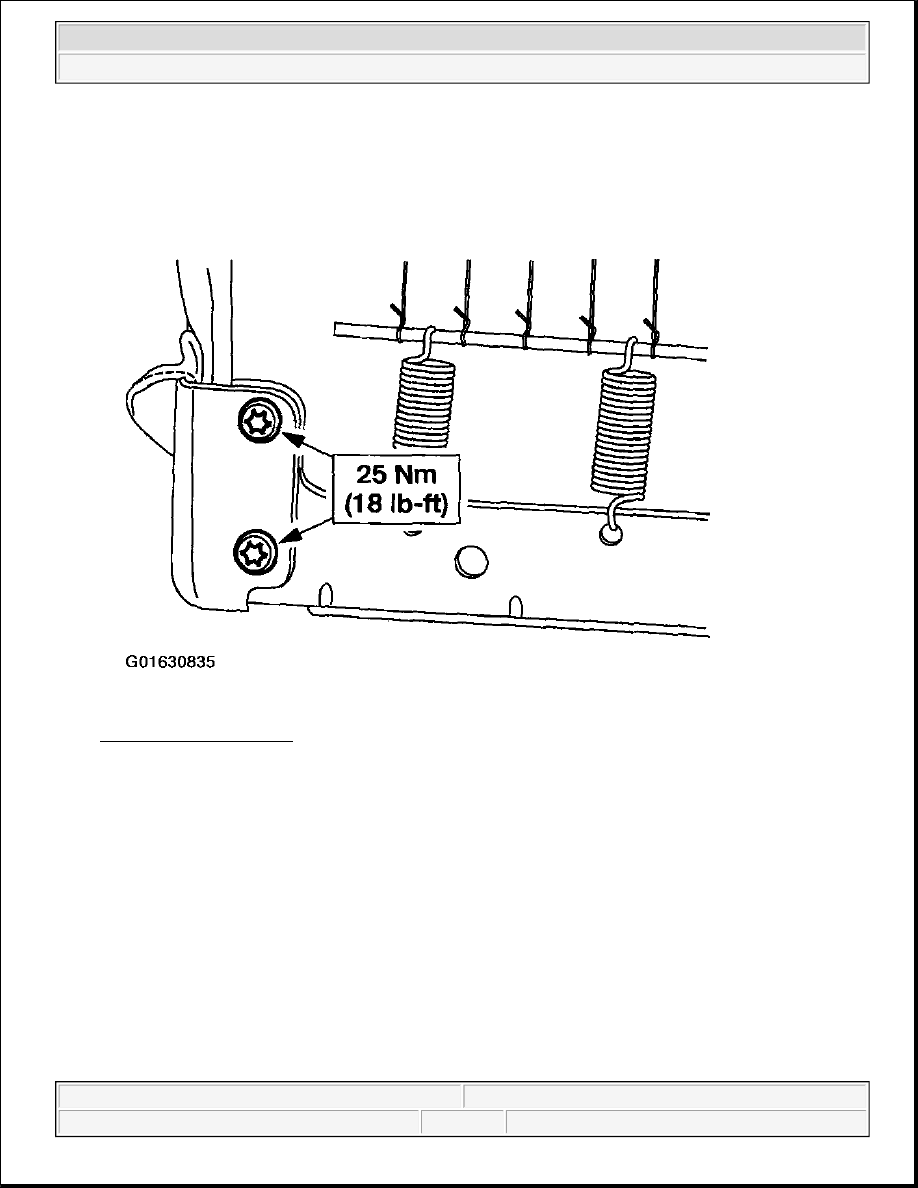

Fig. 231: Removing Bolts
Courtesy of FORD MOTOR CO.

4. Remove the pushpins.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

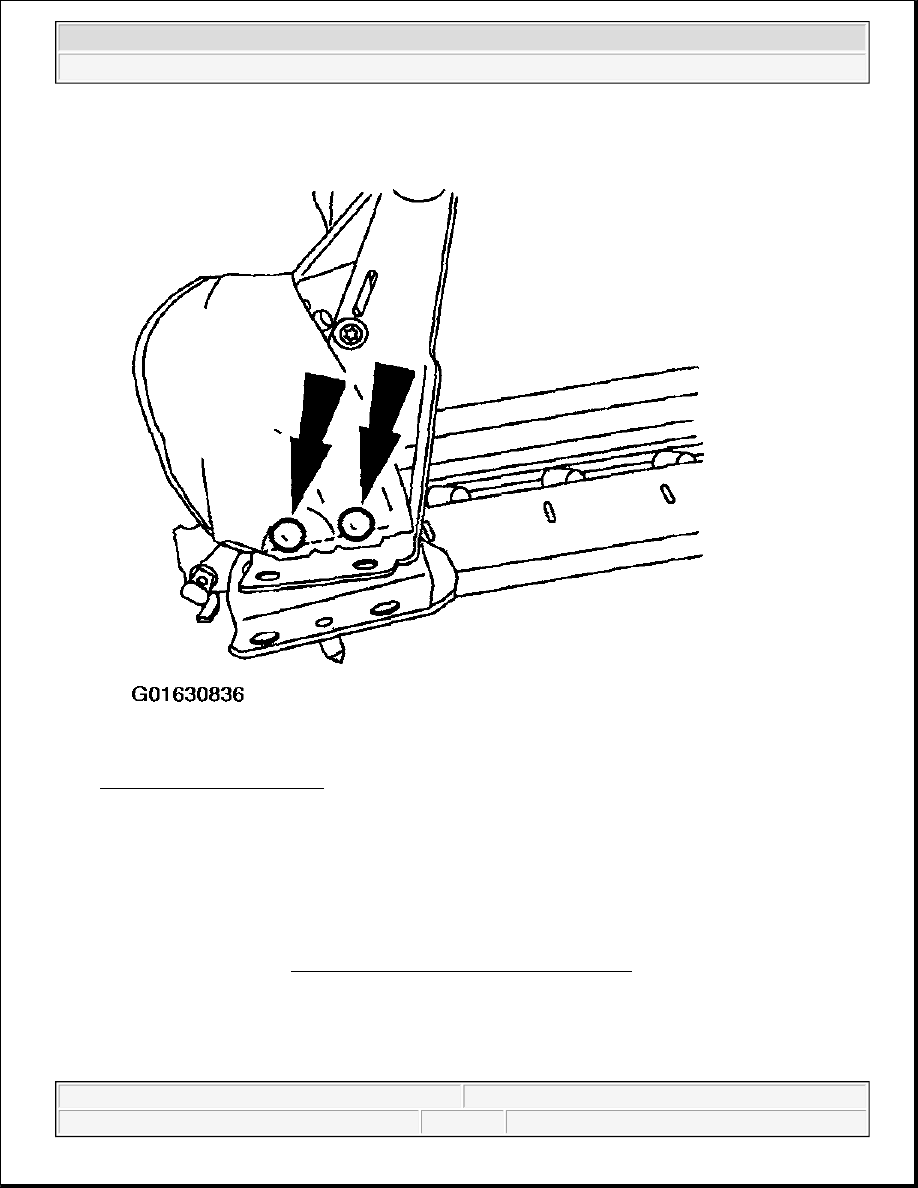

Fig. 232: Removing Pushpins
Courtesy of FORD MOTOR CO.

5. To install, reverse the removal procedure.

REAR SEAT BACKREST LATCH - SUPERCREW

Removal and Installation

1. Remove the seat. Refer to REAR SEAT-60 PERCENT, SUPERCREW .

2. Unclip the J-clips and pull the material back to expose the latch.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 233: Identifying Unclip J-Clips
Courtesy of FORD MOTOR CO.

3. Remove the clip.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
