Fig. 111: Installing Extension Housing
Courtesy of FORD MOTOR CO.

34. Using the special tool, install the oil seal, if removed.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



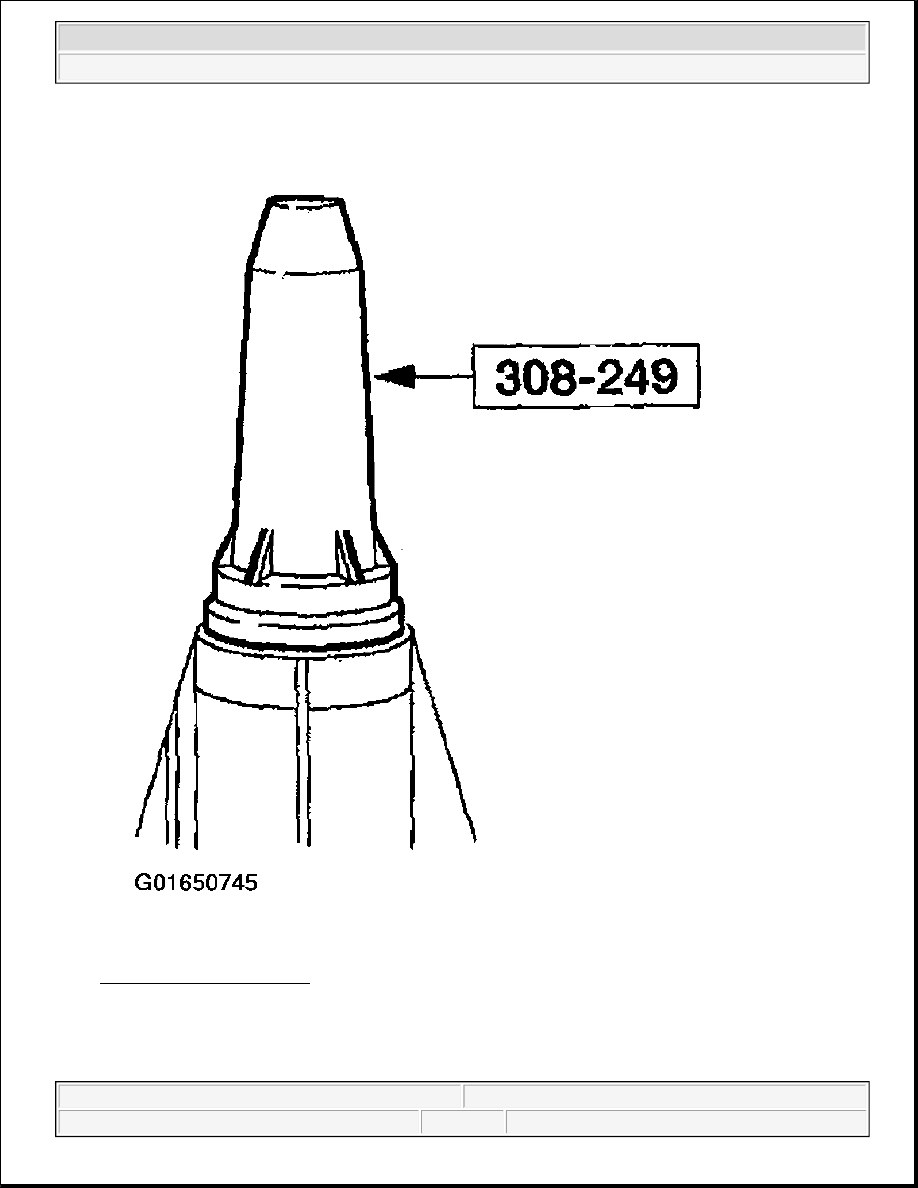

Fig. 112: Installing Oil Seal
Courtesy of FORD MOTOR CO.

35. Install the output shaft speed sensor, if equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 113: Installing Output Shaft Speed Sensor
Courtesy of FORD MOTOR CO.

NOTE:

Tighten the three motor bolts first, then the bracket bolt.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 114: Installing Transfer Case Shift Motor
Courtesy of FORD MOTOR CO.

36. Install the transfer case shift motor, if equipped.

37. Install the coil wire into the shift motor electrical connector.

1. Install the coil wire and pin.

2. Install the wire connector spacer.
