Ford F150 Pickup. Instruction - part 1914

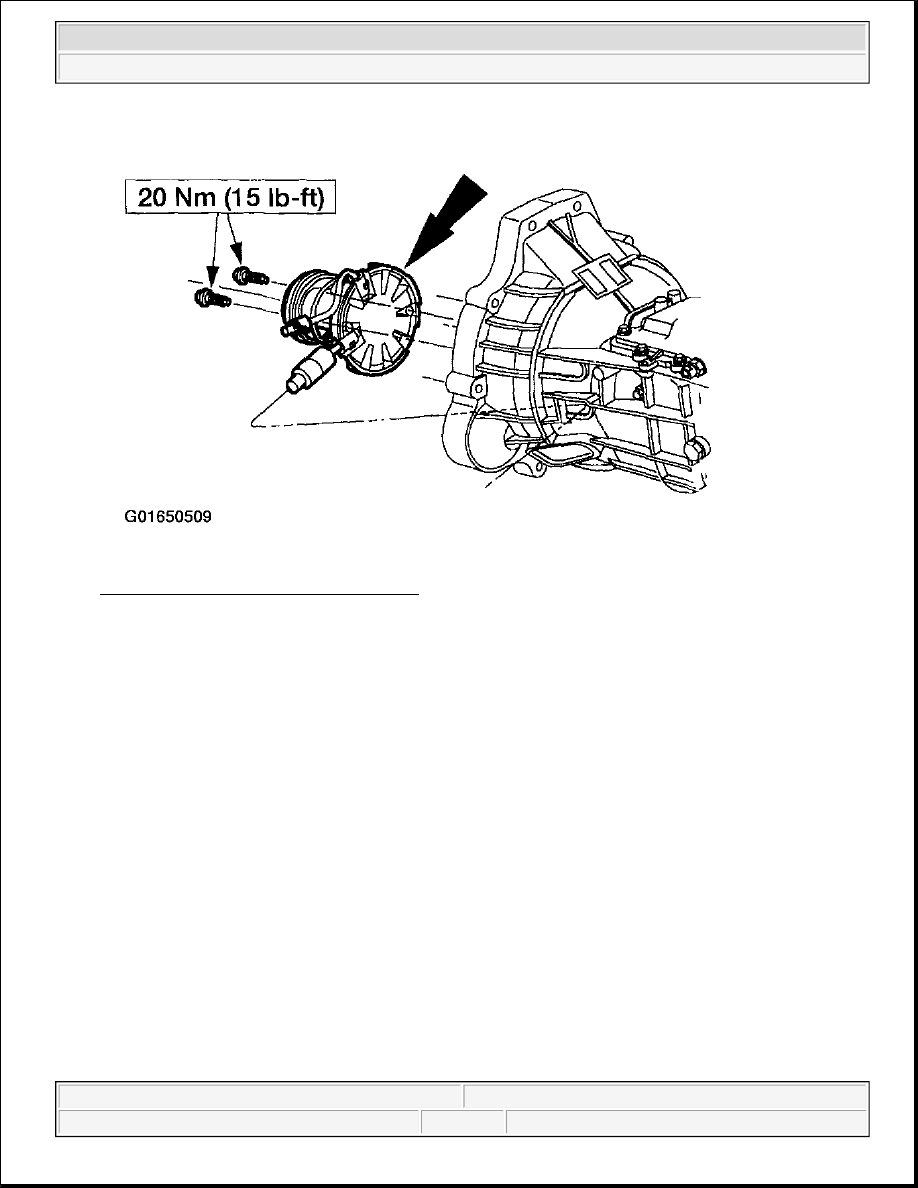

Fig. 199: Installing Clutch Slave Cylinder
Courtesy of FORD MOTOR CO.

INSTALLATION

TRANSMISSION

Special Tool(s)



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 200: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

All Vehicles

1. Using the special tool, raise and position the transmission.

2. Install the six engine-to-transmission bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



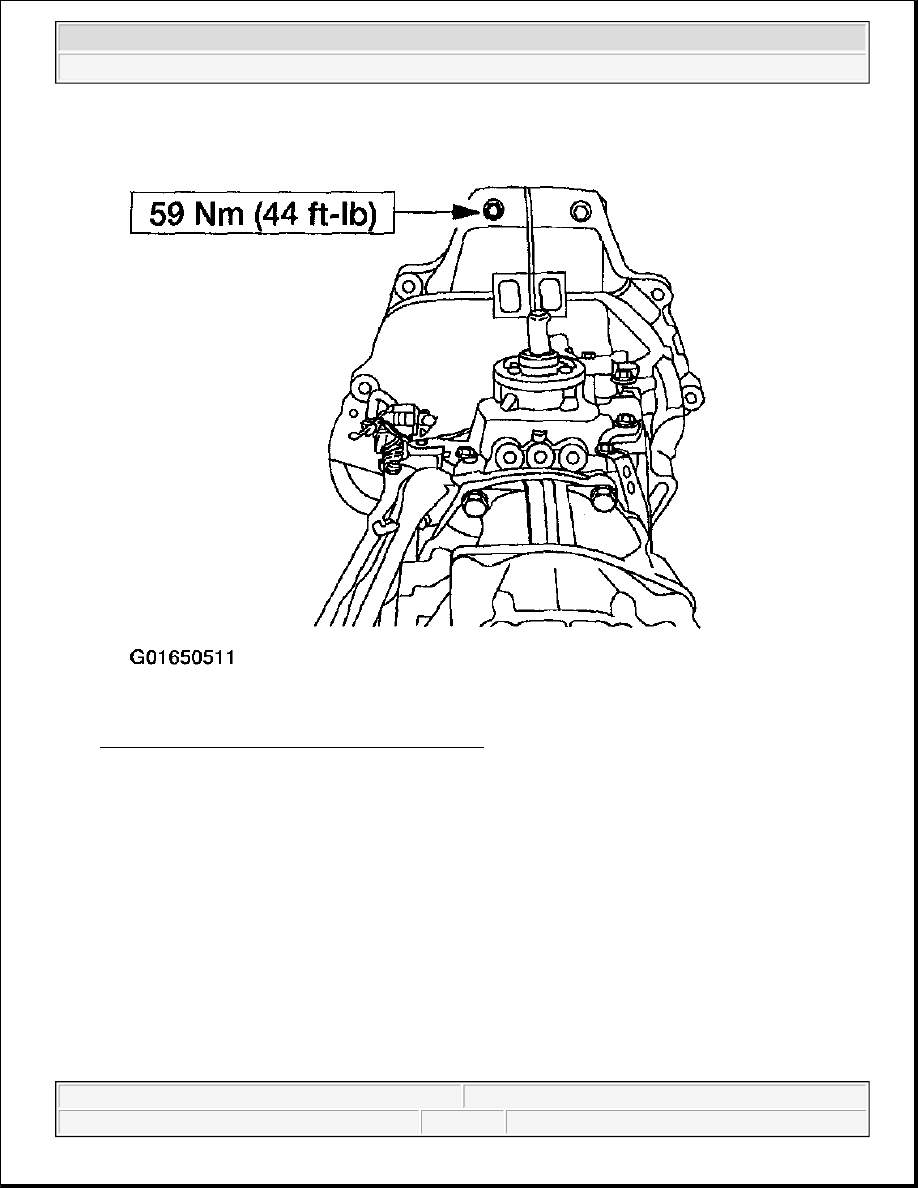

Fig. 201: Installing Engine-To-Transmission Bolts
Courtesy of FORD MOTOR CO.

3. Install the two engine oil pan-to-transmission bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 202: Installing Engine Oil Pan-To-Transmission Bolts
Courtesy of FORD MOTOR CO.

4. Raise the transmission, then install the muffler and tail pipe into the exhaust hanger insulators.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
