Fig. 120: Installing Backup Lamp Switch
Courtesy of FORD MOTOR CO.

11. Install the lower gearshift lever.

1. Position the gearshift level.

2. Position the dust cover.

3. Install the dust cover bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 121: Installing Lower Gearshift Lever
Courtesy of FORD MOTOR CO.

INPUT SHAFT BEARING

Special Tool(s)



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 122: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Disassembly

1. Inspect the input shaft bearing; refer to BEARINGS - INSPECTION .

2. Remove and discard the front bearing oil scoop ring (7046)



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

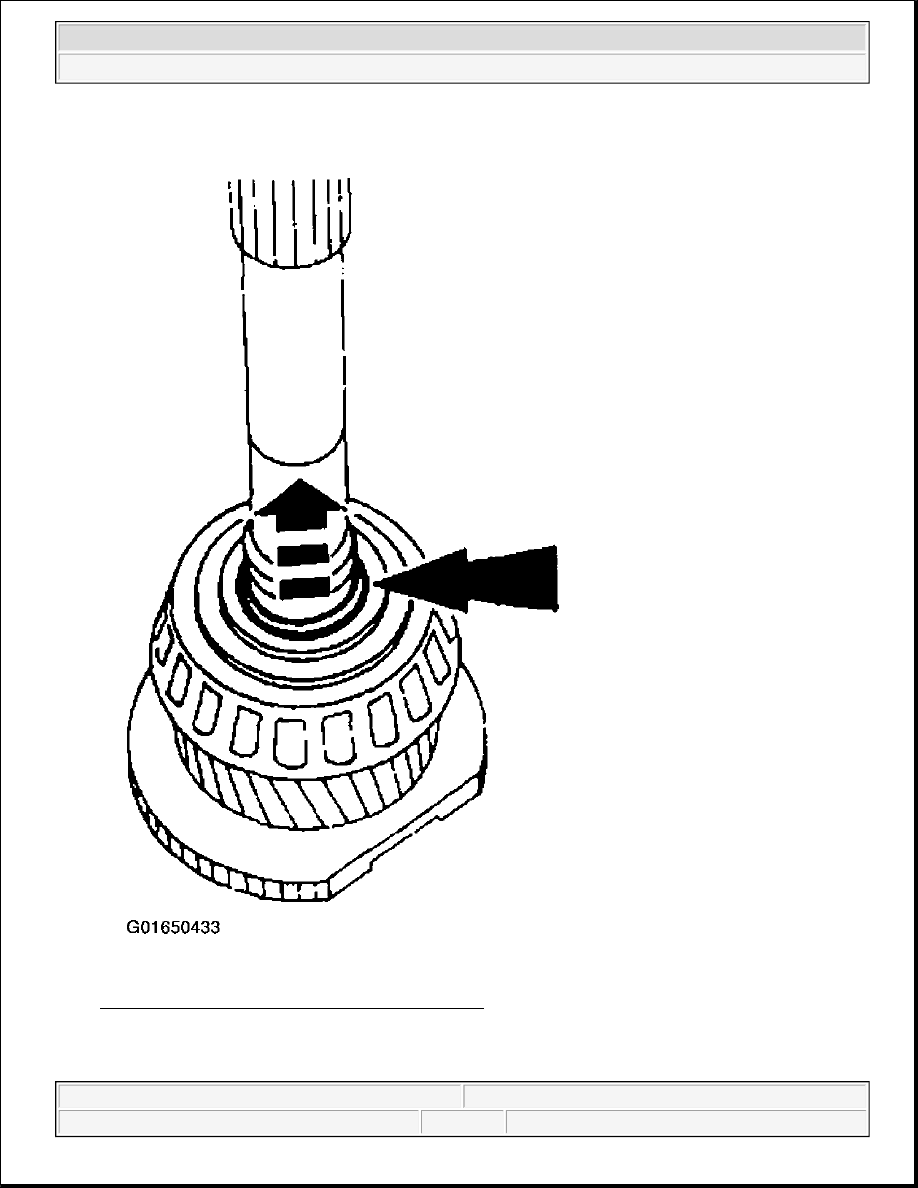

Fig. 123: Removing Front Bearing Oil Scoop Ring
Courtesy of FORD MOTOR CO.

CAUTION: Use of essential tools may cause damage to the bearings being
