Ford F150 Pickup. Instruction - part 1799

Fig. 7: Dial Indicator Set (J-8001)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 SUSPENSION General Diagnosis - H2

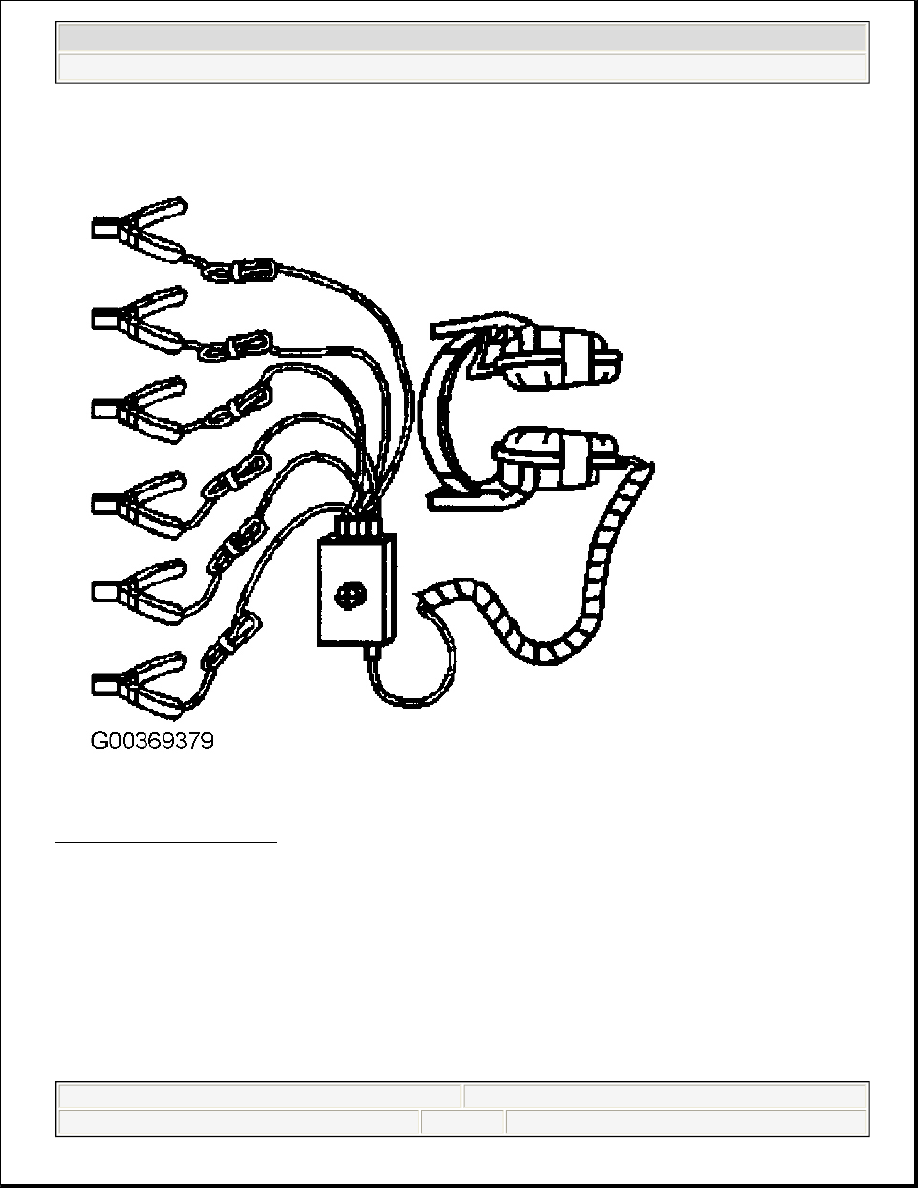

Fig. 8: Chassis Ear (J-39570)
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2003-04 SUSPENSION General Diagnosis - H2



2003 SUSPENSION

Wheels And Tires - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

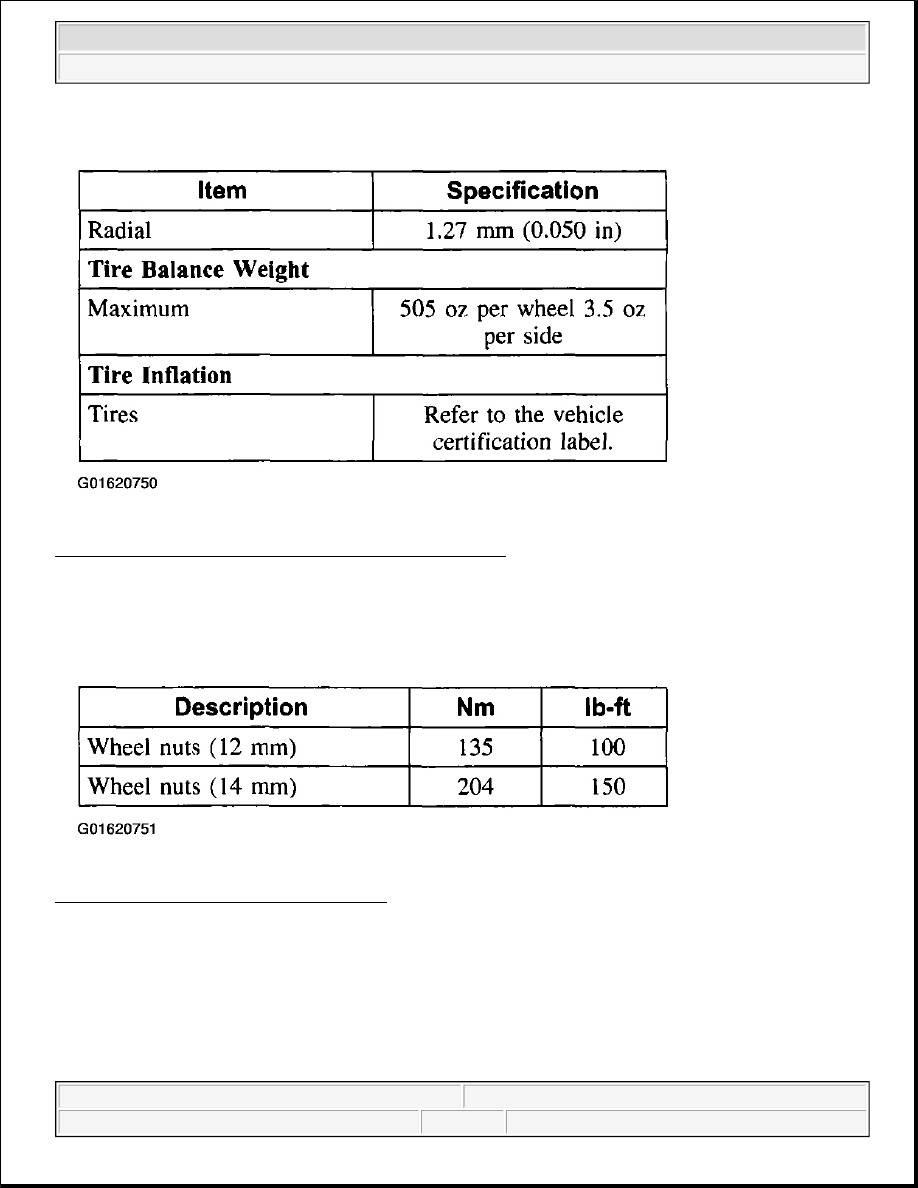

Fig. 1: Wheel & Tire General Specifications Chart (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 SUSPENSION Wheels And Tires - F150 Pickup





2003 Ford Pickup F150

2003 SUSPENSION Wheels And Tires - F150 Pickup



Fig. 2: Wheel & Tire General Specifications Chart (2 Of 2)
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS

Fig. 3: Wheel & Tire Torque Specifications
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION

SAFETY PRECAUTIONS

WARNING:

Never run the engine with one wheel off the ground, for example, when
changing a tire. The wheel(s) resting on the ground could cause the



2003 Ford Pickup F150

2003 SUSPENSION Wheels And Tires - F150 Pickup
