WARNING:

After deployment, the air bag surface can contain deposits of sodium
hydroxide, a product of the gas generant combustion that is irritating to
the skin. Wash your hands with soap and water afterwards.

WARNING:

Never probe the connectors on the air bag module. Doing so can result in
air bag deployment, which can result in personal injury.

WARNING:

The safety belt buckle pretensioner and safety belt retractor pretensioner
are pyrotechnic devices. Never probe a pretensioner electrical connector.
Doing so could result in pretensioner or air bag deployment and could
result in personal injury.

WARNING:

Vehicle sensor orientation is critical for proper system operation. If a
vehicle equipped with an air bag Supplemental Restraint System (SRS) is
involved in a collision, inspect the sensor mounting bracket and wiring
pigtail for deformation. Replace and properly position the sensor or any
other damaged Supplemental Restraint System (SRS) components
whether or not the air bag is deployed.

WARNING:

The restraint system diagnostic tool is for restraint system service only.
Remove from vehicle prior to road use. Failure to remove could result in
injury and possible violation of vehicle safety standards.

NOTE:

If a seat equipped with a seat mounted side air bag and/or a safety belt
pretensioner (if equipped) system is being serviced, the air bag system must be
deactivated.

NOTE:

Restraint system diagnostic tools MUST be installed under the seats in the seat
side air bag (if equipped) and safety belt pretensioner (if equipped) to floor
connectors.

NOTE:

Diagnostics or repairs are not to be performed on a seat equipped with a seat
side air bag with the seat in the vehicle. Prior to attempting to diagnose or
repair a seat concern when equipped with a seat side air bag, the seat must be
removed from the vehicle and the restraint system diagnostic tools must be
installed in the seat side air bag electrical connectors. The restraint system
diagnostic tools must be removed prior to operating the vehicle over the road.

NOTE:

After diagnosing or repairing an SRS, the restraint system diagnostic tools
must be removed before operating the vehicle over the road.

NOTE:

After diagnosing or repairing a seat system, the restraint system diagnostic
tools must be removed before operating the vehicle over the road.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



All Vehicles

1. Please refer to the appropriate vehicle shop instruction to determine location of the front air bag sensors.

The side impact sensors (if equipped) are located at or near the base of the B-pillar.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one
minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

Disconnect the battery ground cable and wait at least one minute. For additional information, refer to
BATTERY, MOUNTING AND CABLES - F150 PICKUP .

2. Pull out to release the retaining clips and position the upper instrument panel steering column cover out of

the way.

NOTE:

The SRS must be fully operational and free of faults before releasing the vehicle
to the customer.

WARNING:

To avoid accidental deployment and possible personal injury, the
backup power supply must be depleted before repairing or replacing
any front or side air bag Supplemental Restraint System (SRS)
components and before servicing, replacing, adjusting or striking
components near the front or side air bag sensors, such as doors,
instrument panel, console, door latches, strikers, seats and hood
latches.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



Fig. 6: Pulling Out To Release Retaining Clips
Courtesy of FORD MOTOR CO.

3. Remove the central junction box panel cover.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup



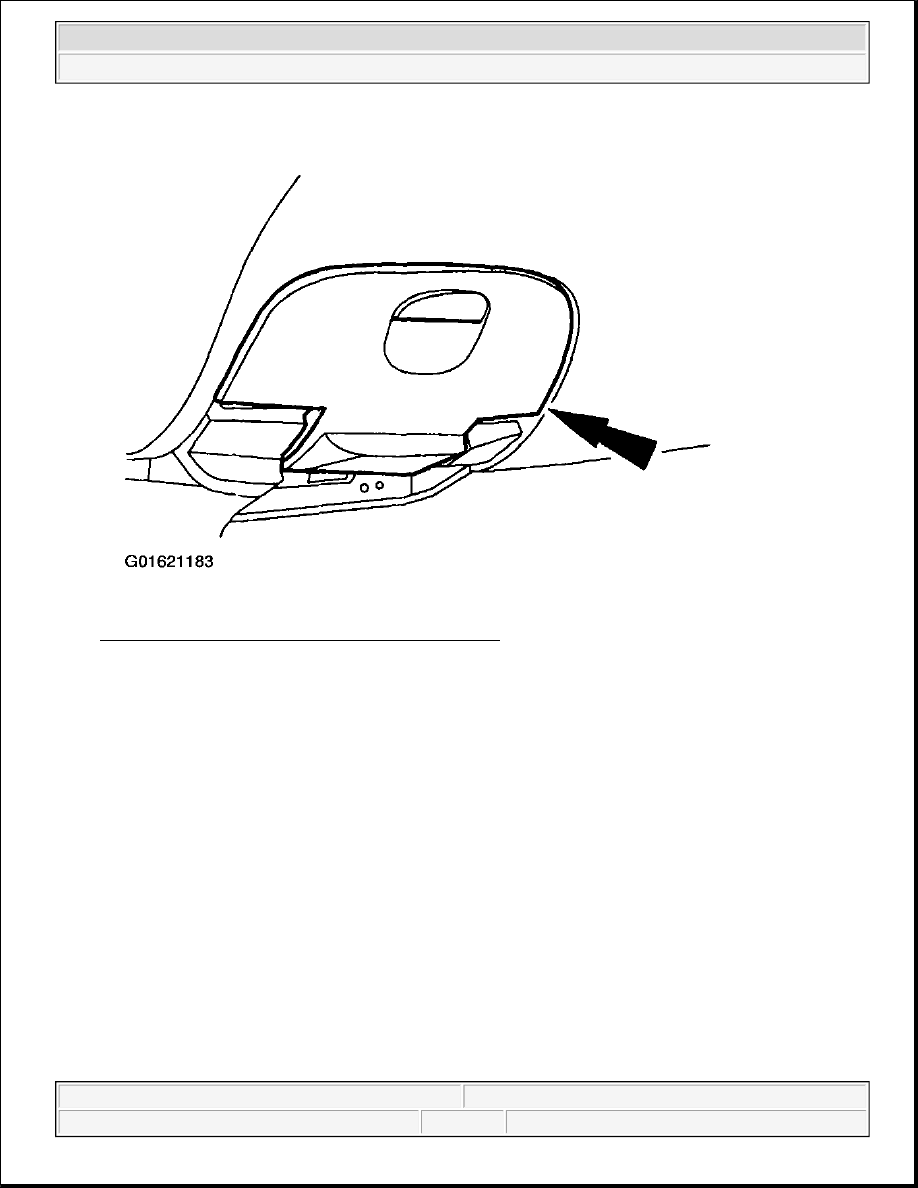

Fig. 7: Removing Central Junction Box Panel Cover
Courtesy of FORD MOTOR CO.

4. Remove the lower instrument panel steering column cover.

1. Remove the two retaining bolts and disconnect the parking brake release lever.

2. Remove the two retaining bolts and disconnect the hood release lever.

3. Remove the six retaining bolts.

4. Remove the cover.



2003 Ford Pickup F150

2003 STEERING Steering Column - F150 Pickup
