Fig. 44: Disconnecting 4WD Control Switch Connector
Courtesy of FORD MOTOR CO.

3. Remove the steering column cover panel.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 45: Removing Steering Column Cover Panel
Courtesy of FORD MOTOR CO.

4. Remove the headlamp switch. Refer to LAMP SWITCH -- HEADLAMP .



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

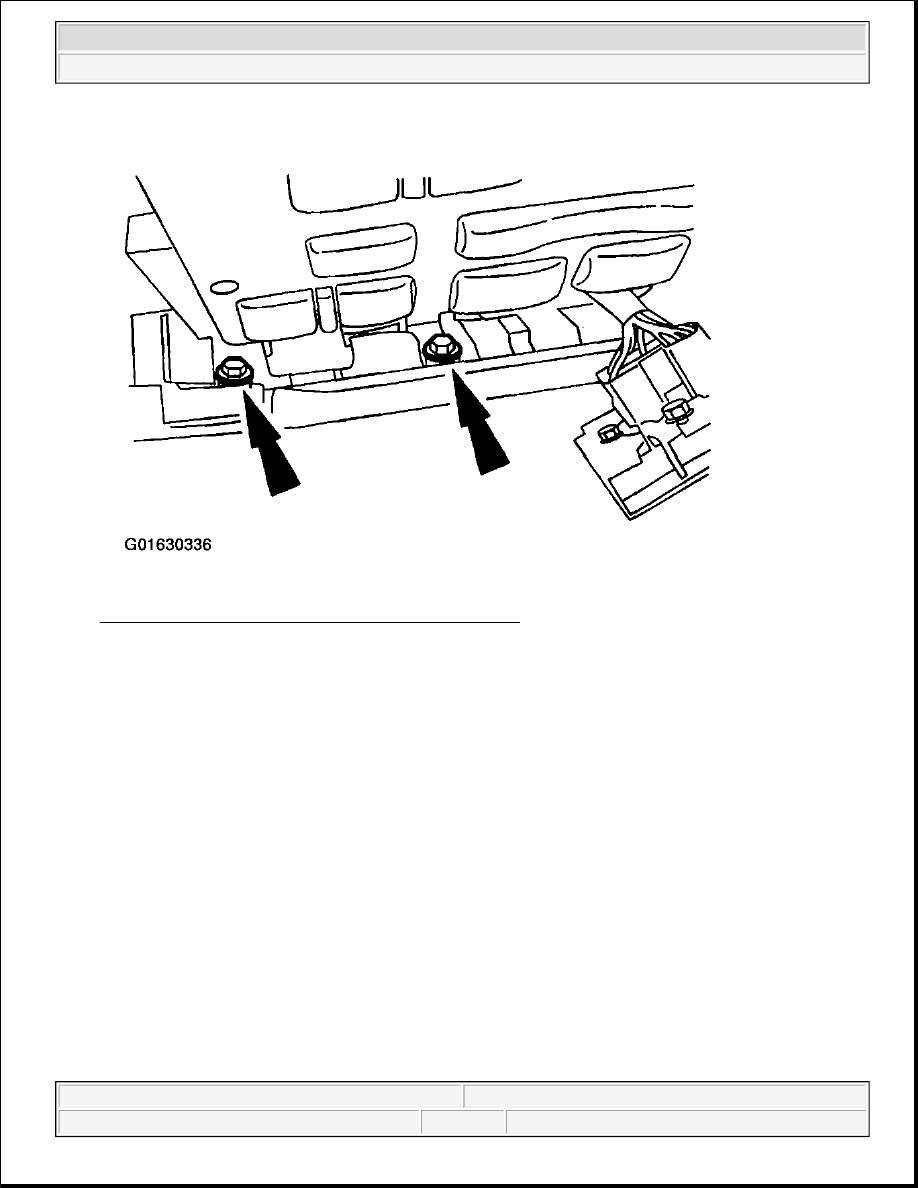

Fig. 46: Locating Nut For Removing Headlamp Switch
Courtesy of FORD MOTOR CO.

5. Remove the LH instrument panel finish panel.

1. Remove the screws.

2. Remove the LH instrument panel finish panel.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

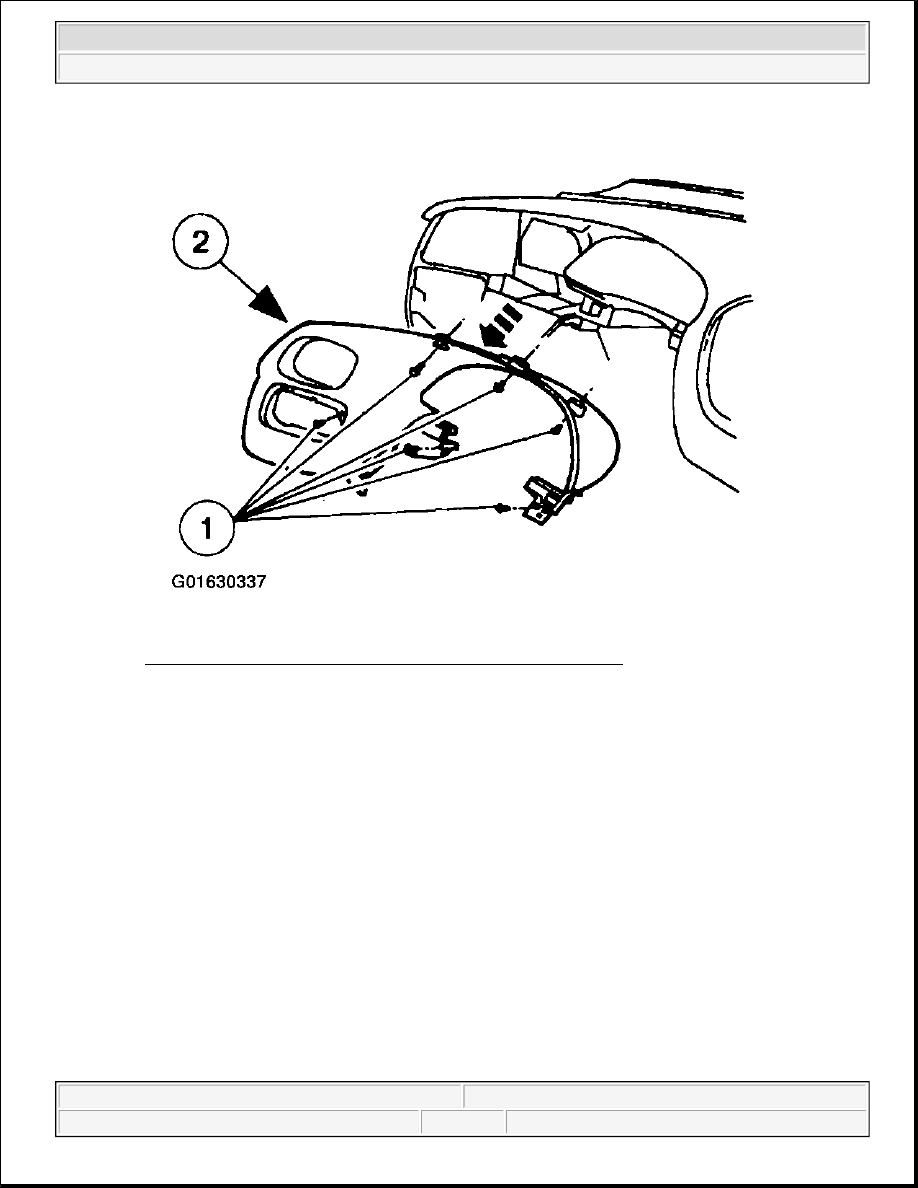

Fig. 47: View Of Removing LH Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.

6. Remove the center instrument panel finish panel.

1. Remove the screws.

2. Remove the center instrument panel finish panel.
