CALIBRATION-TO-VACUUM DIAGRAM REFERENCE (EXPLORER & MOUNTAINEER)

Application/Calibration No.

See

4.0L

Canada

With Engine Cooler

3-U51-BG0-512-10/05, 3-U51-AG0-506

Fig. 27

Without Engine Cooler

3-U51-AG0-506, 3-U51-BG0-512-10/05

Fig. 27

50 States & Canada

Flex-Fuel

3-U51-AF0-506, 3-U51-BF0-512-10/05

Fig. 27

4.6L

3-U51-B50-517/15/06

Fig. 28



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks

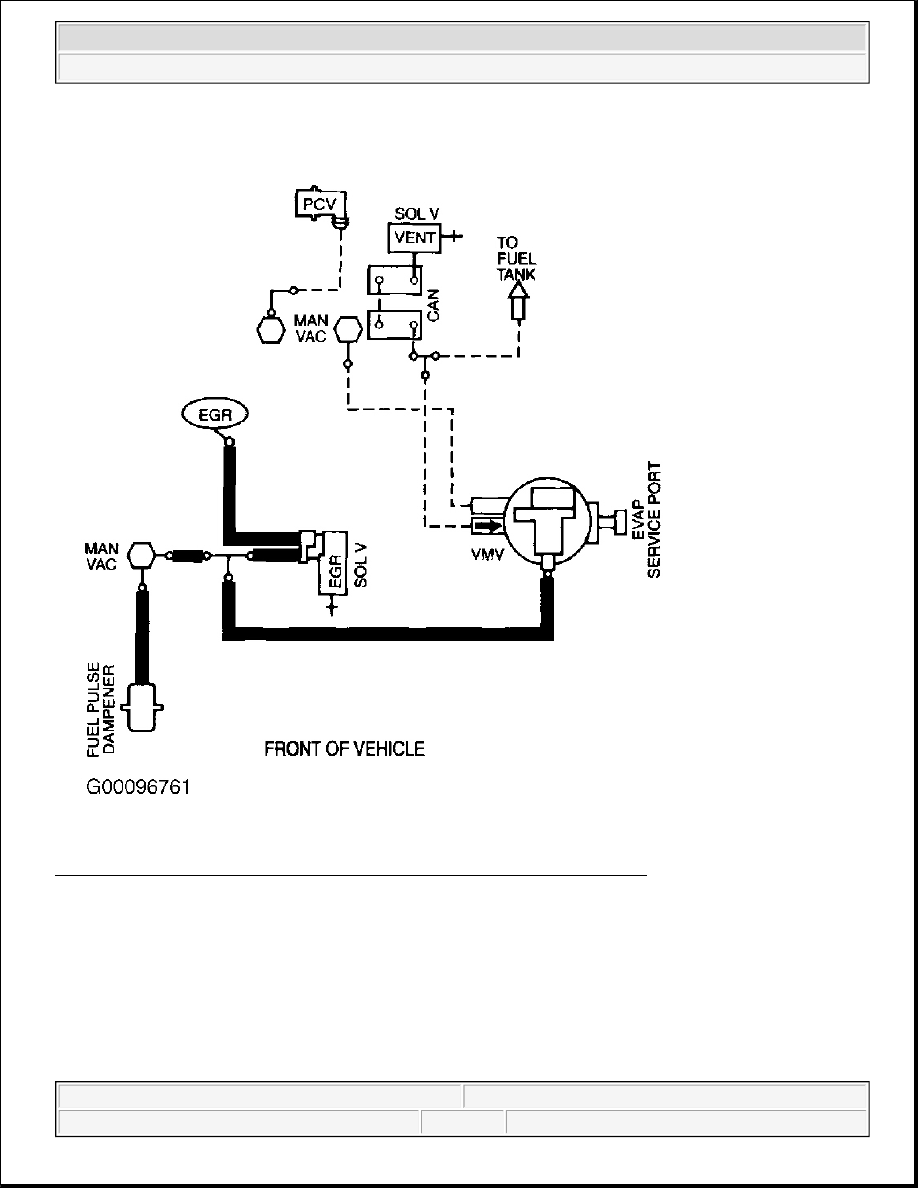

Fig. 27: Vacuum Diagram - Explorer & Mountaineer (4.0L SOHC Flex-Fuel)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



Fig. 28: Vacuum Diagram - Explorer & Mountaineer (4.6L)
Courtesy of FORD MOTOR CO.

EXPLORER SPORT & EXPLORER SPORT TRAC

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE (EXPLORER SPORT & EXPLORER



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Vacuum Diagrams - Trucks



SPORT TRAC)

Fig. 29: Vacuum Diagram - Explorer Sport & Explorer Sport Track (4.0L)
Courtesy of FORD MOTOR CO.

RANGER

Application/Calibration No.

See

Explorer Sport

3-U71-AG0-505, 3-U71-BG0-505, 3-U72-AG0-505

Fig. 29

Explorer Sport Trac

3-S11-A40-505, 3-S11-B40-505,3-S12-A40-505

Fig. 29
