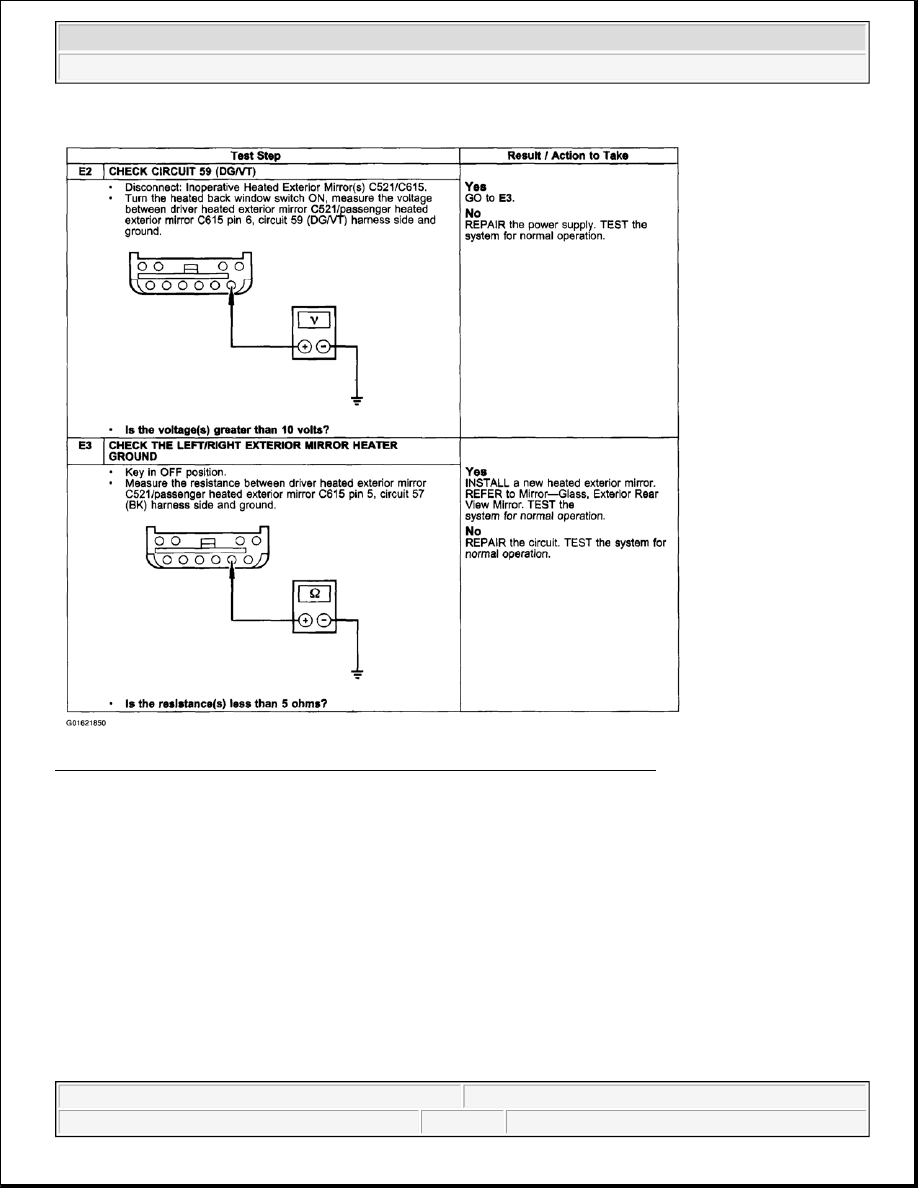

Fig. 20: Pinpoint Test E: Heated Exterior Mirror Does Not Defrost (E2 To E3)
Courtesy of FORD MOTOR CO.

Component Test

Switch - Exterior Rear View Mirror Control

Measure the resistance between the following terminals while pressing the switch in the requested directions:



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup

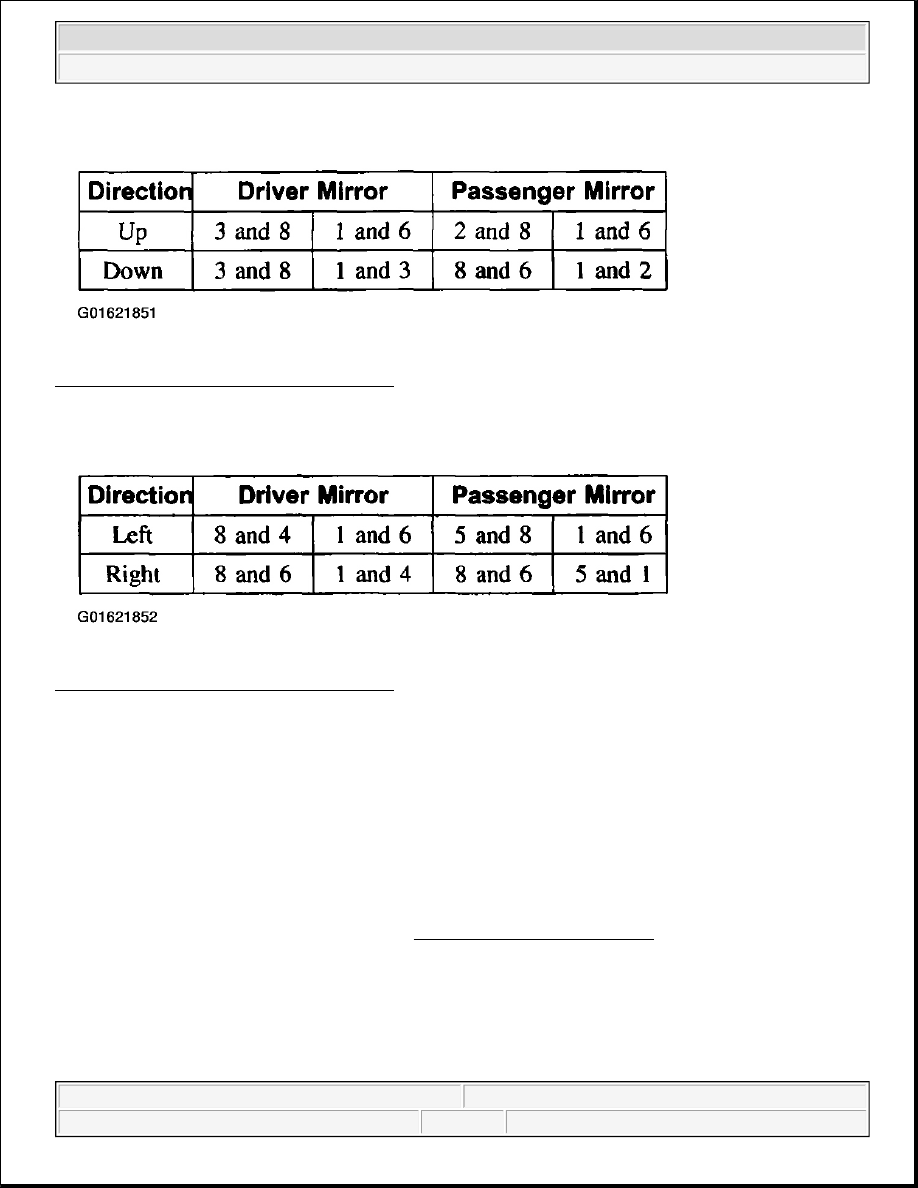

Fig. 21: Terminals Resistance Table (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 22: Terminals Resistance Table (2 Of 2)
Courtesy of FORD MOTOR CO.

If the resistance is less than 5 ohms in each direction, return to the originating pinpoint test; otherwise, install a
new switch.

REMOVAL AND INSTALLATION

EXTERIOR MIRROR

Removal

1. Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL .

2. Remove the exterior rear view mirror.

1. Disconnect the electrical connector.

2. Disconnect the wiring clips.

3. Remove the nuts.

4. Remove the exterior rear view mirror.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



3. Feed the power mirror wiring through the opening in the front door (20124).
