Ford F150 Pickup. Instruction - part 1431

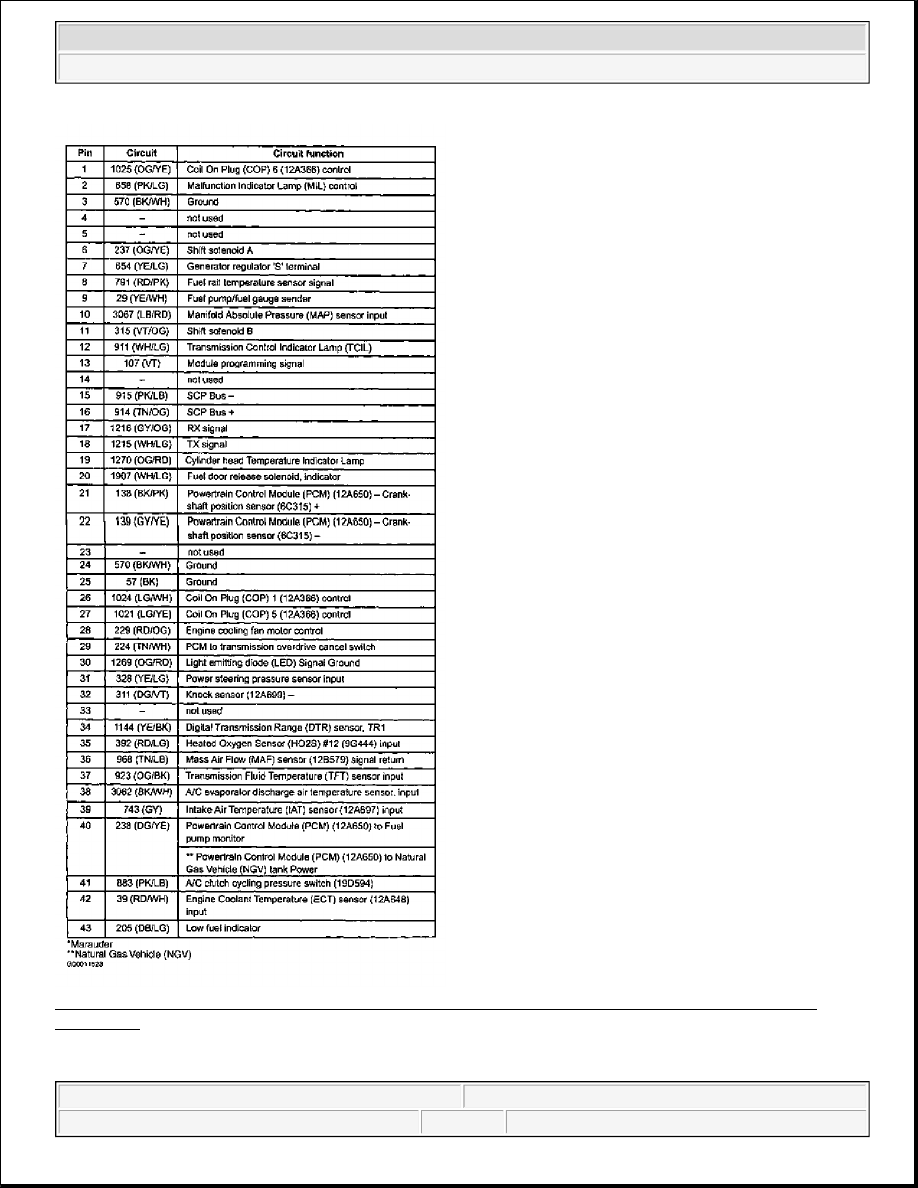

Fig. 70: Identifying PCM Connector Circuit Functions (2 Of 3 - Blackwood)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline





2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

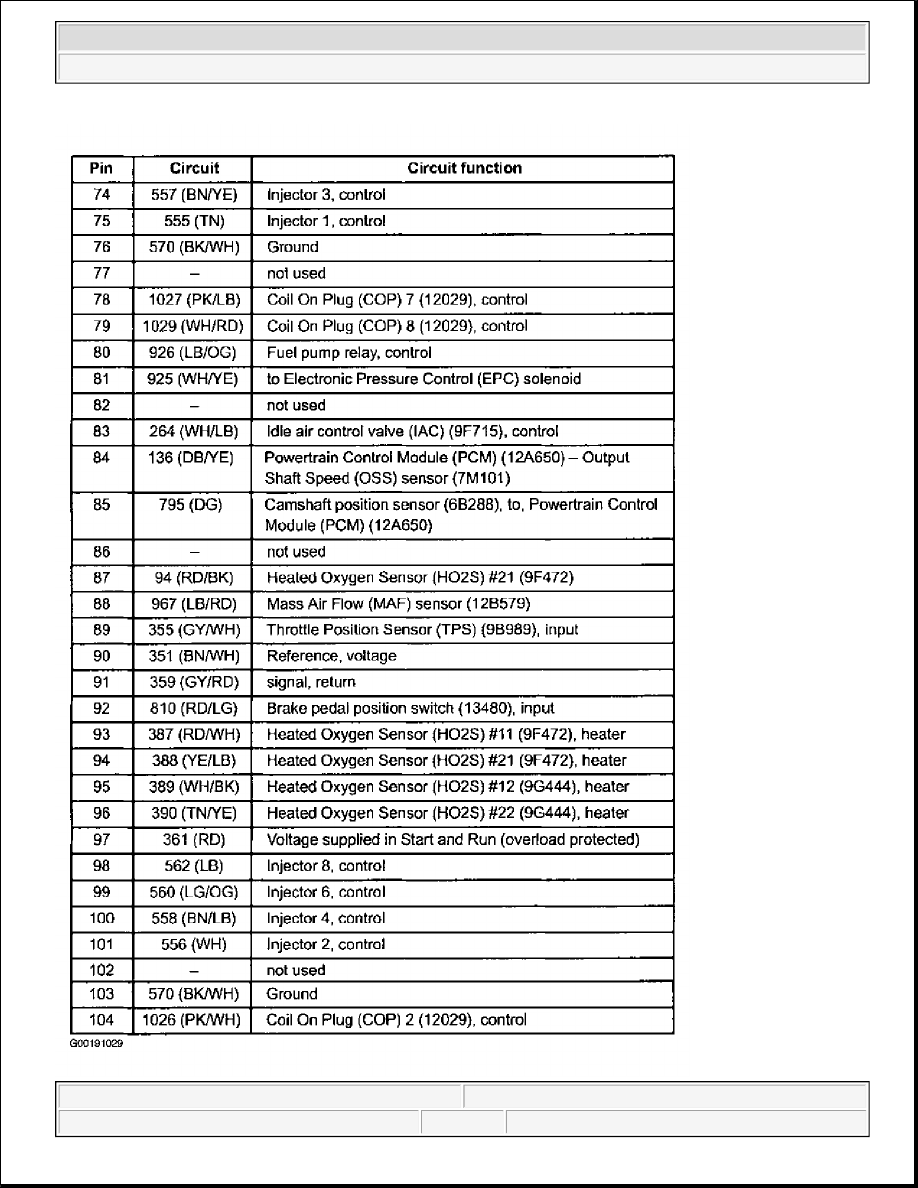

Fig. 71: Identifying PCM Connector Circuit Functions (3 Of 3 - Blackwood)
Courtesy of FORD MOTOR CO.

CROWN VICTORIA, GRAND MARQUIS & MARAUDER

CROWN VICTORIA, GRAND MARQUIS & MARAUDER PCM CONNECTOR IDENTIFICATION

Application

Terminal Identification

Circuit Function

Crown Victoria, Grand Marquis & Marauder



Fig. 72-Fig. 74



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



Fig. 72: Identifying PCM Connector Circuit Functions (1 Of 3 - Crown Victoria, Grand Marquis &
Marauder)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
