P2126 & P2127

LS & Thunderbird

For KOEO, KOER & Continuous Memory, Test

DK , Step 1)

P2128

LS & Thunderbird

For KOEO, KOER & Continuous Memory, Test

DK , Step 1)

P2131 & P2132

LS & Thunderbird

For KOEO, KOER & Continuous Memory, Test

DK , Step 1)

P2133

LS & Thunderbird

For KOEO, KOER & Continuous Memory, Test

DK , Step 1)

P2135

LS & Thunderbird

For KOEO, KOER & Continuous Memory, Test

DV , Step 4)

P2195

NGV Models

For KOER & Continuous Memory Only, Test

HA , Step 40)

All Others

For KOER & Continuous Memory Only, Test

H , Step 40)

P2196

NGV Models

For KOER & Continuous Memory Only, Test

HA , Step 40)

All Others

For KOER & Continuous Memory Only, Test

H , Step 40)

P2197

NGV Models

For KOER & Continuous Memory Only, Test

HA , Step 40)

All Others

For KOER & Continuous Memory Only, Test

H , Step 40)

P2198

NGV Models

For KOER & Continuous Memory Only, Test

HA , Step 40)

All Others

For KOER & Continuous Memory Only, Test

H , Step 40)

P2257

For KOEO, KOER & Continuous Memory, Test

HM , Step 27)

P2258

For KOEO, KOER & Continuous Memory, Test

HM , Step 4)

P2270-P2273

For Continuous Memory Only, Test H , Step 80)

(1)

DTCs apply to all models, unless otherwise indicated.

(2)

For DTC descriptions, see Fig. 4-Fig. 61 .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



(3)

Refer to WIRING DIAGRAMS to verify if model is equipped with cylinder head or engine coolant
temperature sensor.

(4)

See appropriate DIAGNOSIS article in AUTOMATIC TRANSMISSIONS.

(5)

See EVAPORATIVE EMISSIONS DIAGNOSTIC TROUBLE CODE DEFINITIONS.

(6)

Vehicle speed information is provided by the anti-lock brake system. For test procedures, see
appropriate ANTI-LOCK article in BRAKES.

(7)

Flash Vehicle Identification Block needs to be reprogrammed. See FLASH VEHICLE
IDENTIFICATION BLOCK PROCEDURE under PROGRAMMING PCM.

(8)

Ensure aftermarket performance products are not installed before replacing PCM. Replace PCM. See
PROGRAMMING PCM.

(9)

DTC P1000 is ignored in KOEO and KOER On-Demand Self-Test. If DTC P1000 is retrieved from
Continuous Memory, go to Test QC , step 1).

(10)

Perform Rear Electronics Module (REM) self-test. Go to MODULE COMMUNICATIONS
NETWORK - LS article in ACCESSORIES & EQUIPMENT for complete DTC listing and test
procedures.

(11)

See appropriate CRUISE CONTROL SYSTEMS article in ACCESSORIES & EQUIPMENT for
test procedures.

(12)

DTC P1582 indicates the PCM has data available concerning the passive restraint system, do not
replace PCM. See appropriate AIR BAG article in RESTRAINTS for diagnostic procedures.

(13)

DTC P1636 indicates PCM has lost communication with Inductive Signature Chip (ISC). Replace
PCM as necessary. See PROGRAMMING PCM.

(14)

A secondary module has requested the PCM to illuminated the MIL. See appropriate SELF-
DIAGNOSTICS - EEC-V - BI-FUEL article to diagnose Alternate Fuels Control Module (AFCM).

(15)

DTC is transfer case related. For test procedures, see appropriate DIAGNOSIS article in
TRANSFER CASES.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

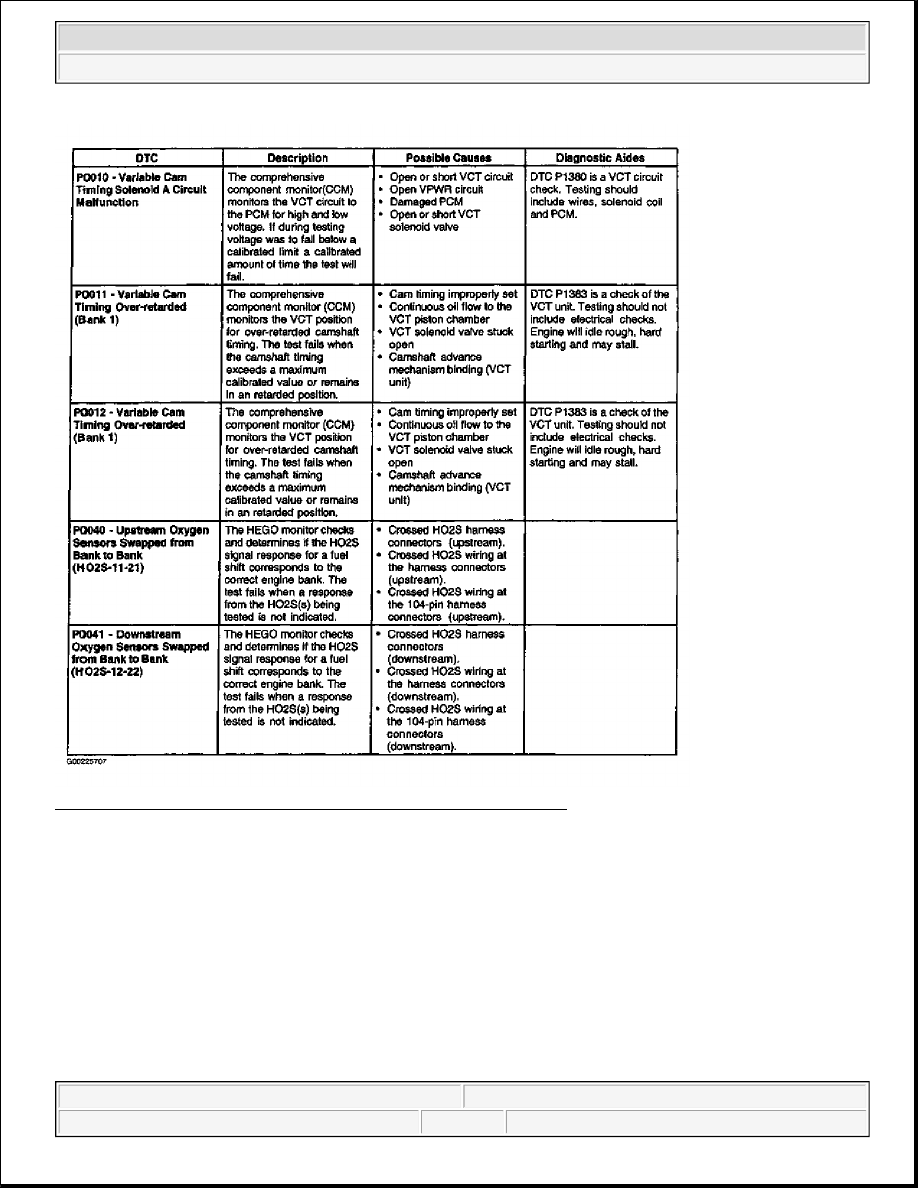

Fig. 4: Diagnostic Trouble Code Descriptions (DTCs P0010-P0041)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



Fig. 5: Diagnostic Trouble Code Descriptions (DTCs P0068-P0103)
Courtesy of FORD MOTOR CO.
