Ford F150 Pickup. Instruction - part 133

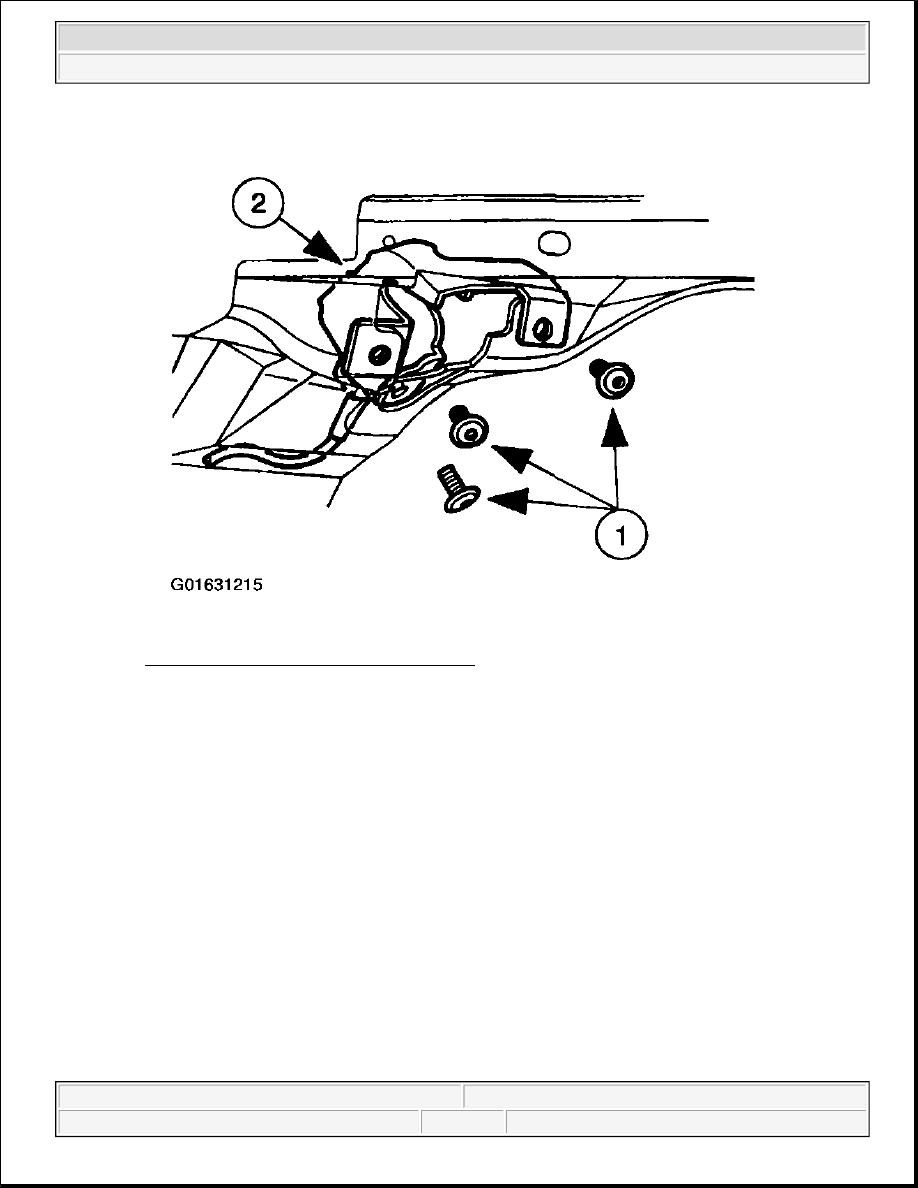

Fig. 87: Removing Upper Rear Door Latch
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

z

If necessary, use Multi-Purpose Grease Spray F5AZ-19G209-AA or equivalent meeting Ford
specification ESR-M1C159 -A to lubricate the latches.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 88: Installing Upper Rear Door Latch
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 89: Installing Rear Door Radio Speaker (Upper)
Courtesy of FORD MOTOR CO.

REAR DOOR LATCH - SUPERCREW

Removal and Installation

1. Raise the window to the closed position.

2. Disconnect the battery ground cable.

3. Remove the rear door trim panel. Refer to TRIM PANEL -- REAR DOOR .

4. Remove the bolts and the rear door brace.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 90: Removing Bolts And Rear Door Brace
Courtesy of FORD MOTOR CO.

5. Position the watershield aside.

6. Remove the bolt and the door glass top run.
