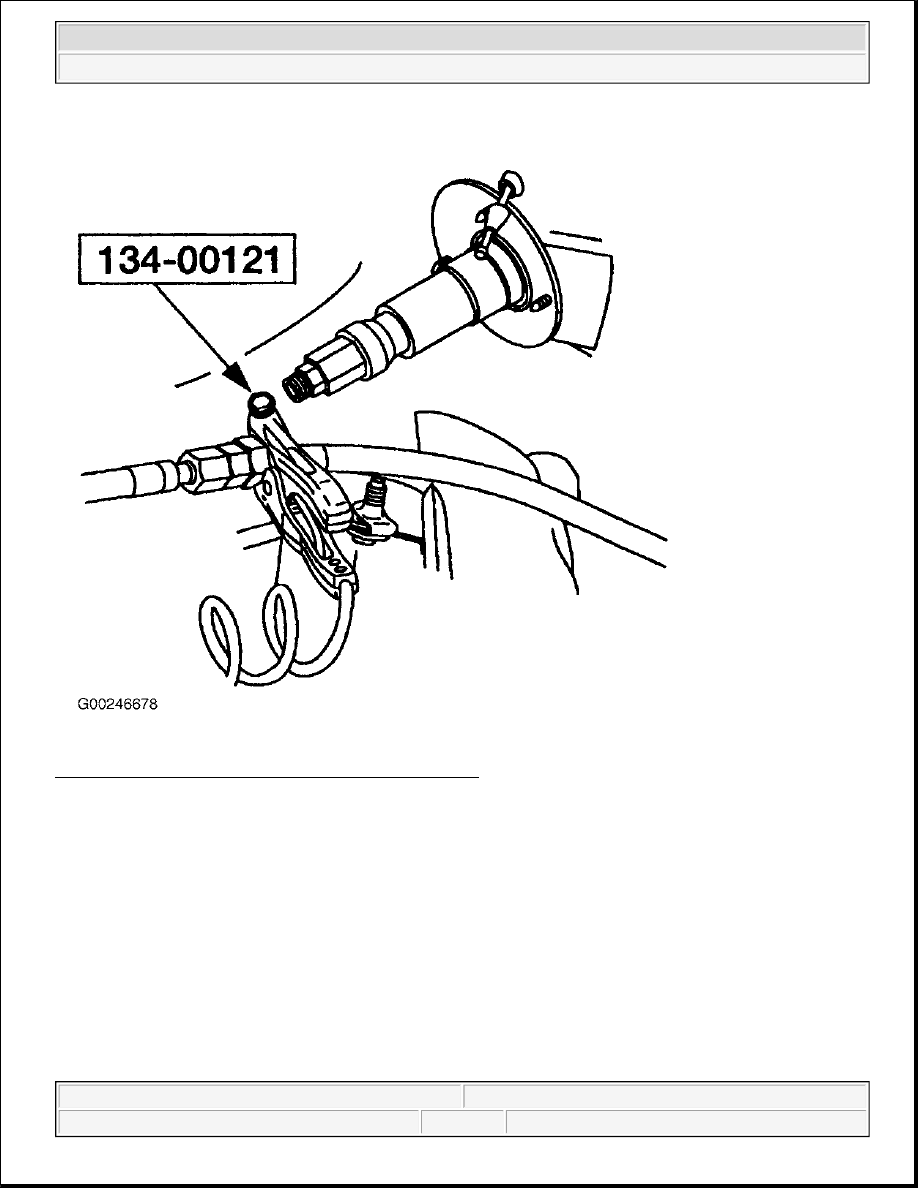

Fig. 11: Connecting Grounding Cable To Fuel Fill Line
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - CNG

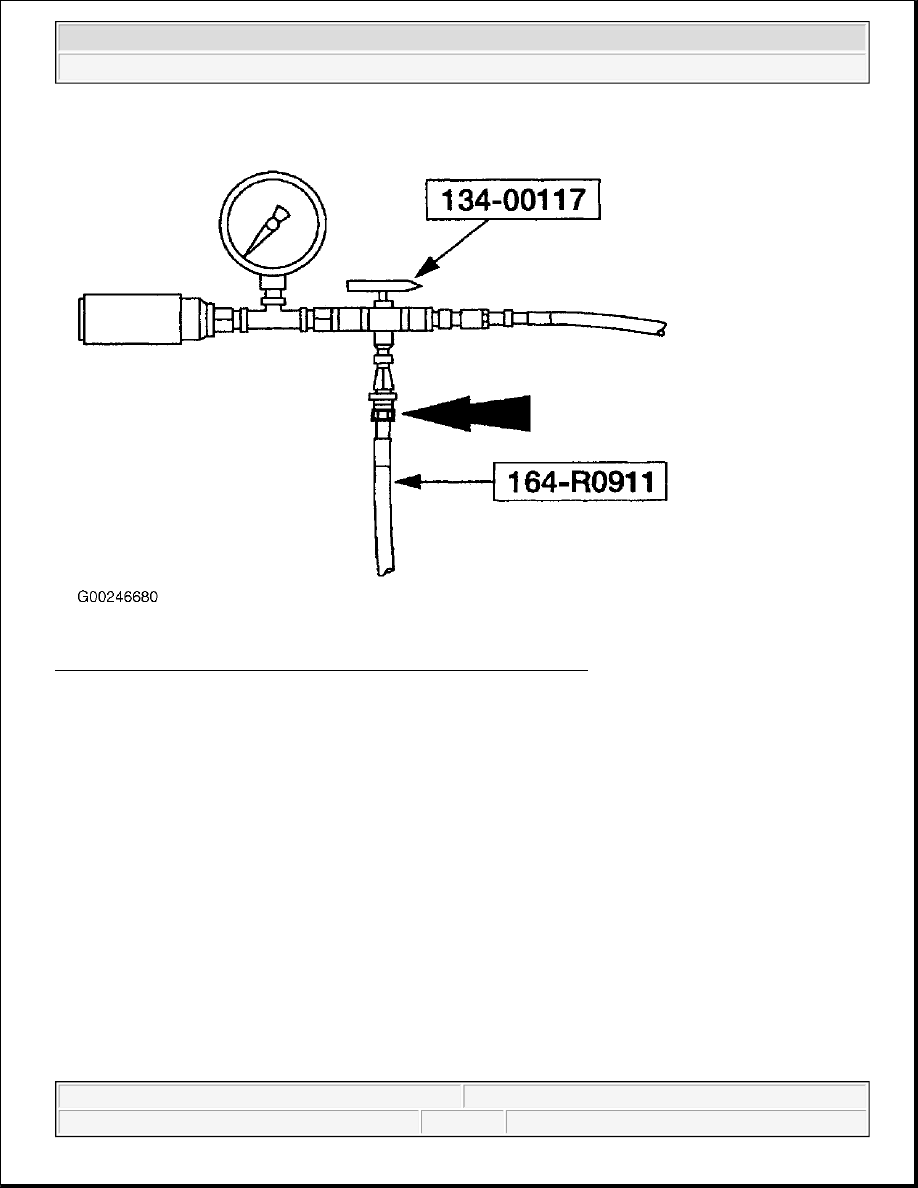

Fig. 12: Connecting Fuel Filler Neck Venting Kit To Venting Hose Assembly
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - CNG

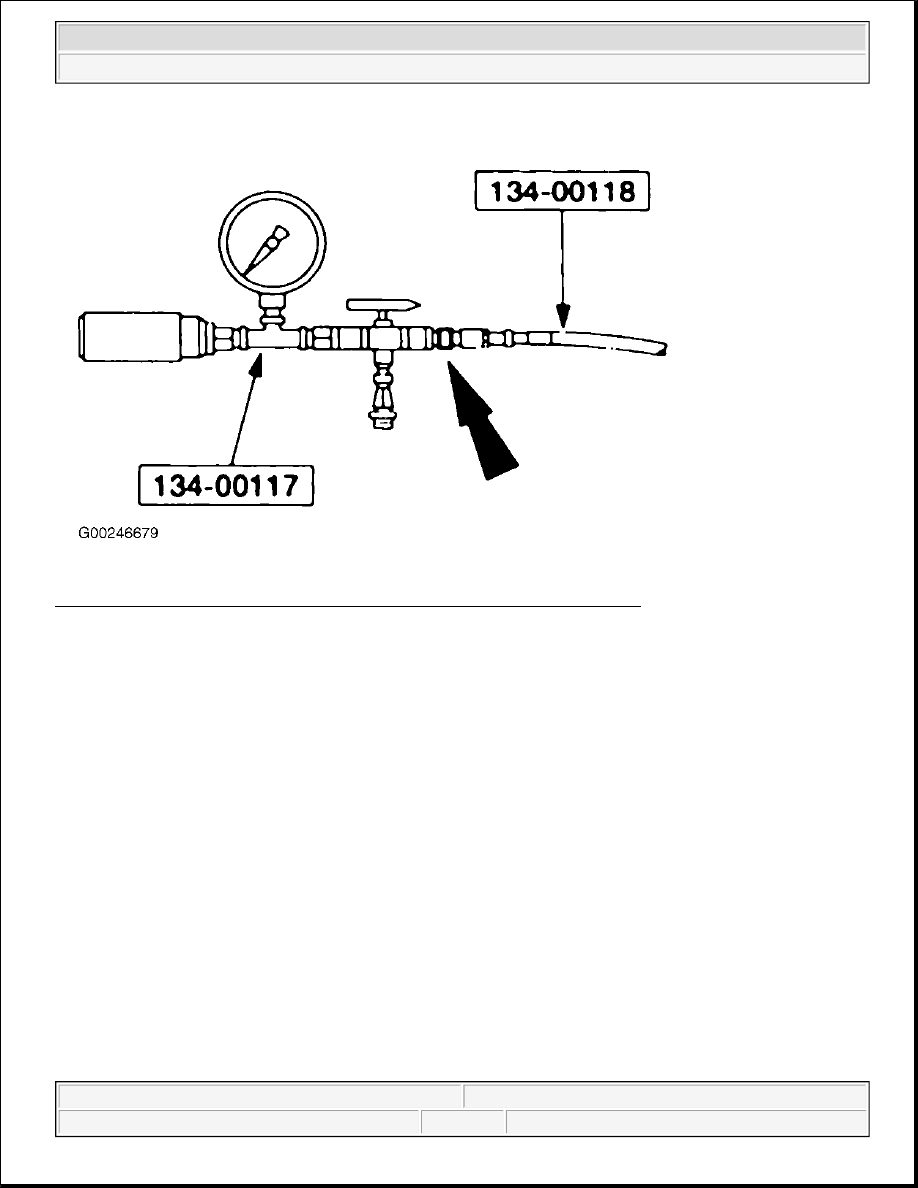

Fig. 13: Connecting Fuel Venting Kit To Fuel Filler Neck Venting Kit
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - CNG

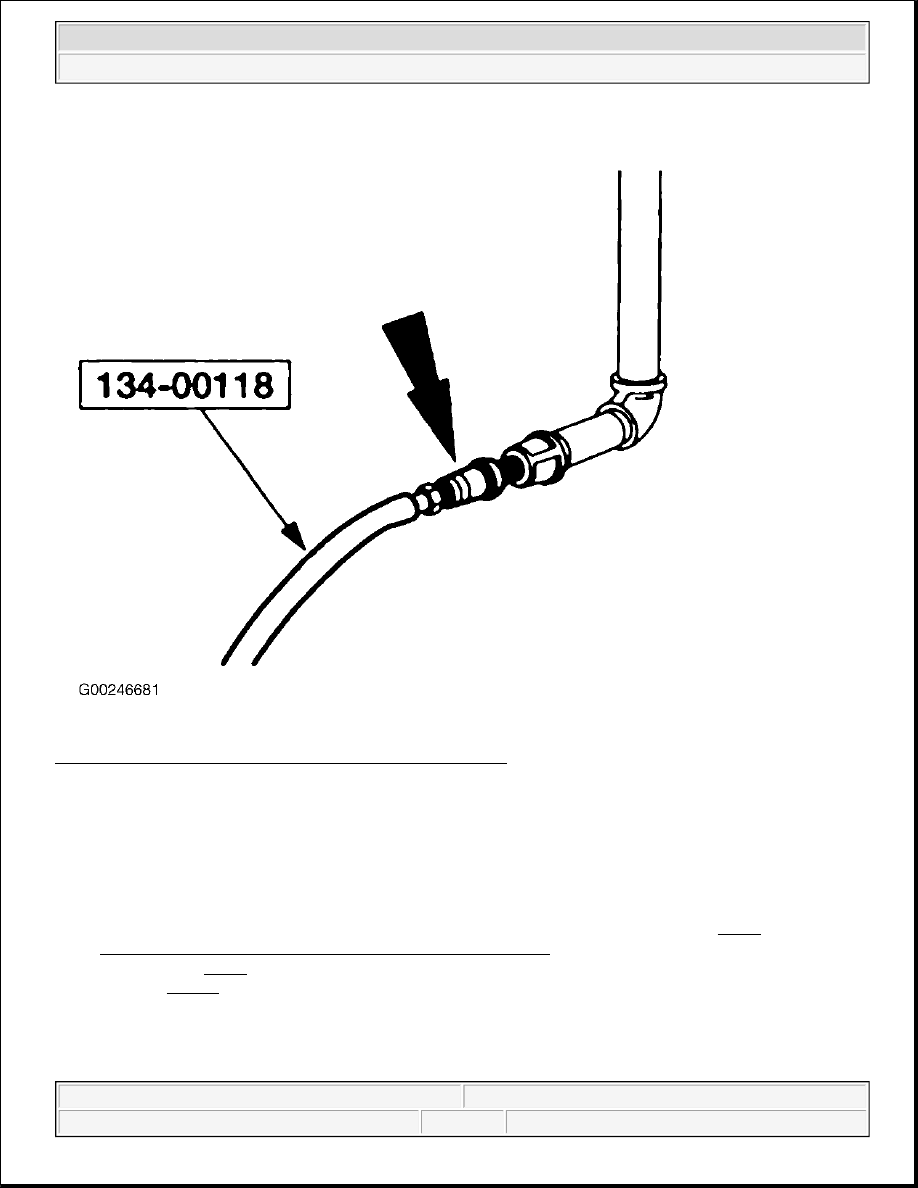

Fig. 14: Connecting Venting Hose Assembly To Vent Stack
Courtesy of FORD MOTOR CO.

Solenoid Stuck Open

1. Turn in the instruction lockdown valve jackscrew on the fuel tank solenoid valve(s). See Fig. 7 . Perform

COMPRESSED NATURAL GAS FUEL LINE VENTING . Disconnect the fuel fill line from the fuel
fill valve. See Fig. 9 . Connect the Fuel Venting Kit (164-R0911) and Adapter (134-00255) to the fuel fill
line. See Fig. 10 .

NOTE:

On vehicles equipped with an extended range fuel tank, the jackscrew can
be reached through an access hole in the vapor retaining cover.

NOTE:

Solenoid diagnostics must be completed on all tank solenoid valves prior
to venting. All fuel tank solenoid valves must be in the locked down
position.
