See Fig. 113 .

3. Position the vacuum harness aside. Remove the brake booster vacuum tube bracket nut. Disconnect and

position the vacuum tube aside. Remove the EGR vacuum regulator solenoid bracket bolt. Disconnect the
Idle Air Control (IAC) electrical connector. Disconnect the coolant hoses and the vacuum hose from the
Positive Crankcase Ventilation (PCV) heater fitting. Remove the throttle body adapter assembly. See Fig.
26 . Remove the PCV valve and hose.

4. Disconnect the fuel tube spring lock coupling. See FUEL LINE CONNECTORS . Disconnect the eight

fuel injector electrical connectors. Remove the 4 bolts and lift the fuel injection supply manifold and the
injectors upward out of the intake manifold. See Fig. 114 . To install, reverse removal procedure. Tighten
fasteners to specification. See TORQUE SPECIFICATIONS .

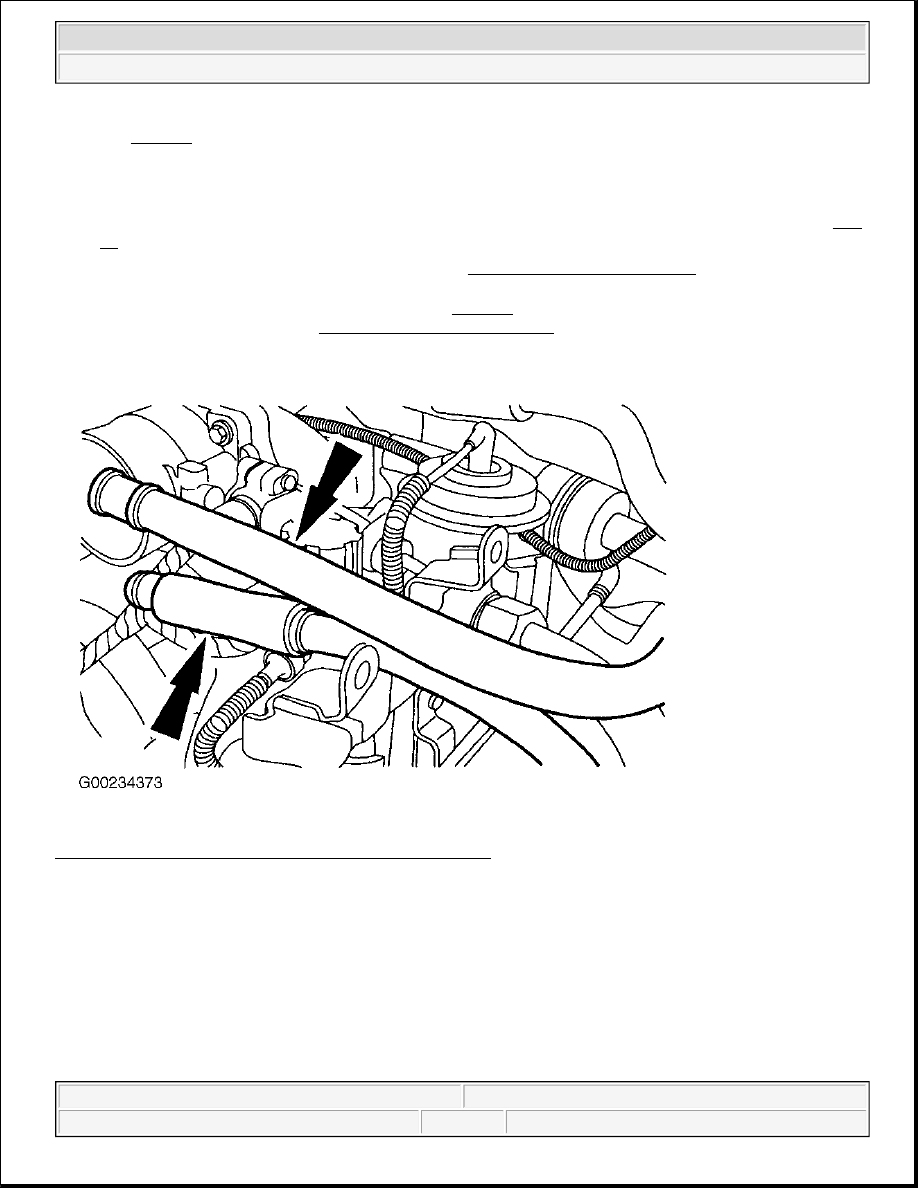

Fig. 112: Locating Air Tubes At Throttle Body (5.4L 2V)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



Fig. 113: Locating EVR Solenoid & TP Sensor Connectors, & EGR Vacuum Hose (5.4L 2V)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline

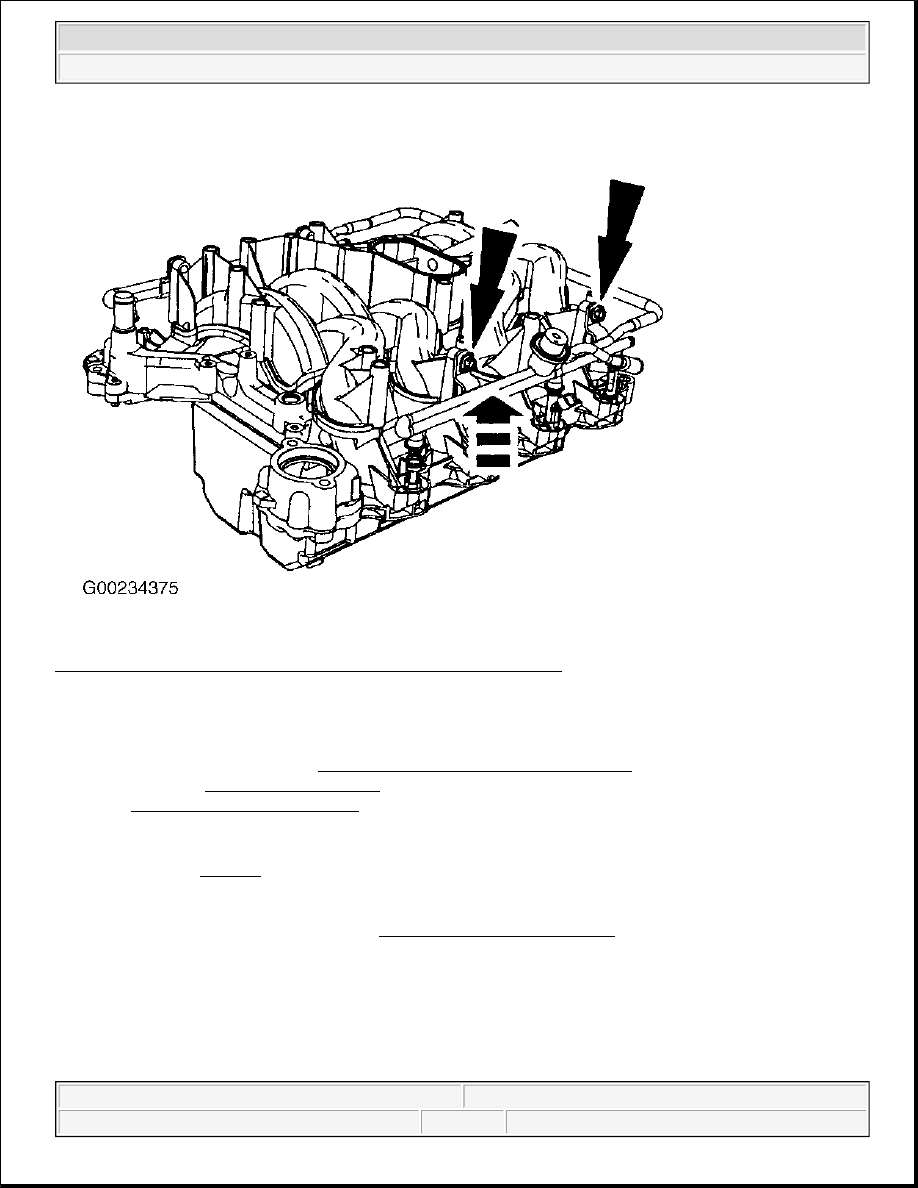

Fig. 114: Locating Fuel Injection Supply Manifold Bolts (5.4L 2V)
Courtesy of FORD MOTOR CO.

Removal & Installation (5.4L 4V)

1. Relieve the fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove the upper intake

manifold. See INTAKE MANIFOLD under AIR INDUCTION SYSTEMS. Disconnect the fuel lines.
See FUEL LINE CONNECTORS . After disconnecting, plug the fuel lines to prevent leakage.

2. Disconnect the fuel pressure regulator vacuum hose. Disconnect the eight fuel injector electrical

connectors. Remove the bolts, then remove the fuel injection supply manifold with the fuel injectors
attached. See Fig. 115 . Remove the fuel injectors from the fuel injection supply manifold. Inspect the
two "O" ring seals from each fuel injector. Install new "O" ring seals as needed. Lubricate the new "O"
rings with clean engine oil to aid installation. To complete installation, reverse the removal procedure.
Tighten fasteners to specification. See TORQUE SPECIFICATIONS .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



Fig. 115: Locating Fuel Injection Supply Manifold Bolts (5.4L 4V)
Courtesy of FORD MOTOR CO.

FUEL TANK

Removal & Installation (Blackwood & F150 Except Supercharged)

1. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Disconnect negative battery

cable. Raise and support vehicle. Remove fuel tank skid plate, if equipped. See Fig. 116 . Drain fuel from
vehicle. See FUEL TANK DRAINING .

2. Disconnect the fuel tank filler pipe vent hose from the fuel tank. Position special tool under the fuel tank.

Remove the fuel tank support straps and partially lower the fuel tank. See Fig. 117 . Disconnect the fuel
lines from the fuel pump. See FUEL LINE CONNECTORS . See Fig. 118 . Disconnect the Evaporative
(EVAP) emission hose. See Fig. 119 . Disconnect the fuel tank pressure sensor electrical connector.
Release the rear EVAP hose clamp and disconnect the hose. Disconnect the fuel pump electrical
connector. Lower and remove the fuel tank.

3. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE

SPECIFICATIONS . Perform after repair procedure. See AFTER REPAIR PROCEDURE under

WARNING:

On Blackwood and Navigator models, the air suspension system must be
shut off prior to hoisting or jacking vehicle. Turn off the air suspension
switch, located below the glove box in the lower right side of the
passenger foot well.
