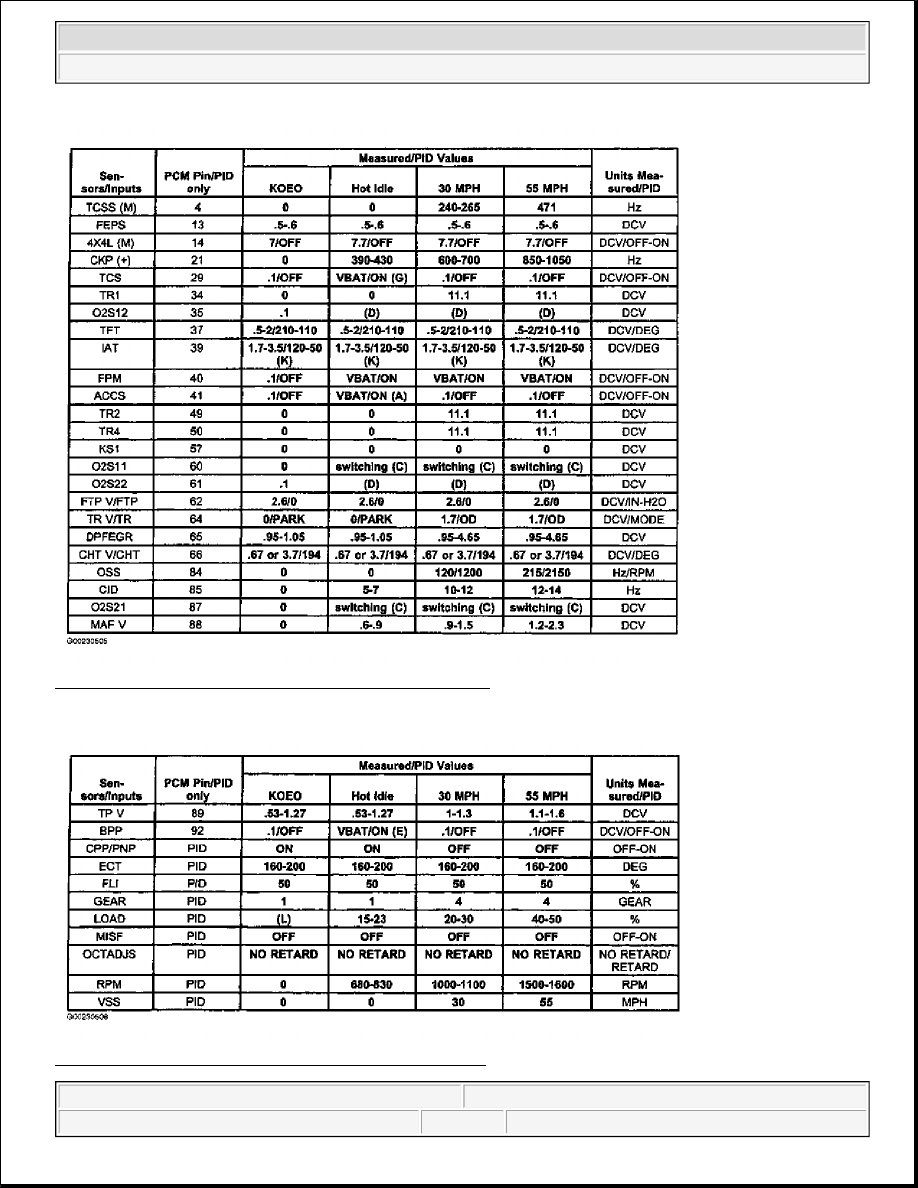

Fig. 23: 4.6L Econoline & Pickup (M/T) - Inputs (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 24: 4.6L Econoline & Pickup (A/T) - Inputs (2 Of 2)

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Courtesy of FORD MOTOR CO.

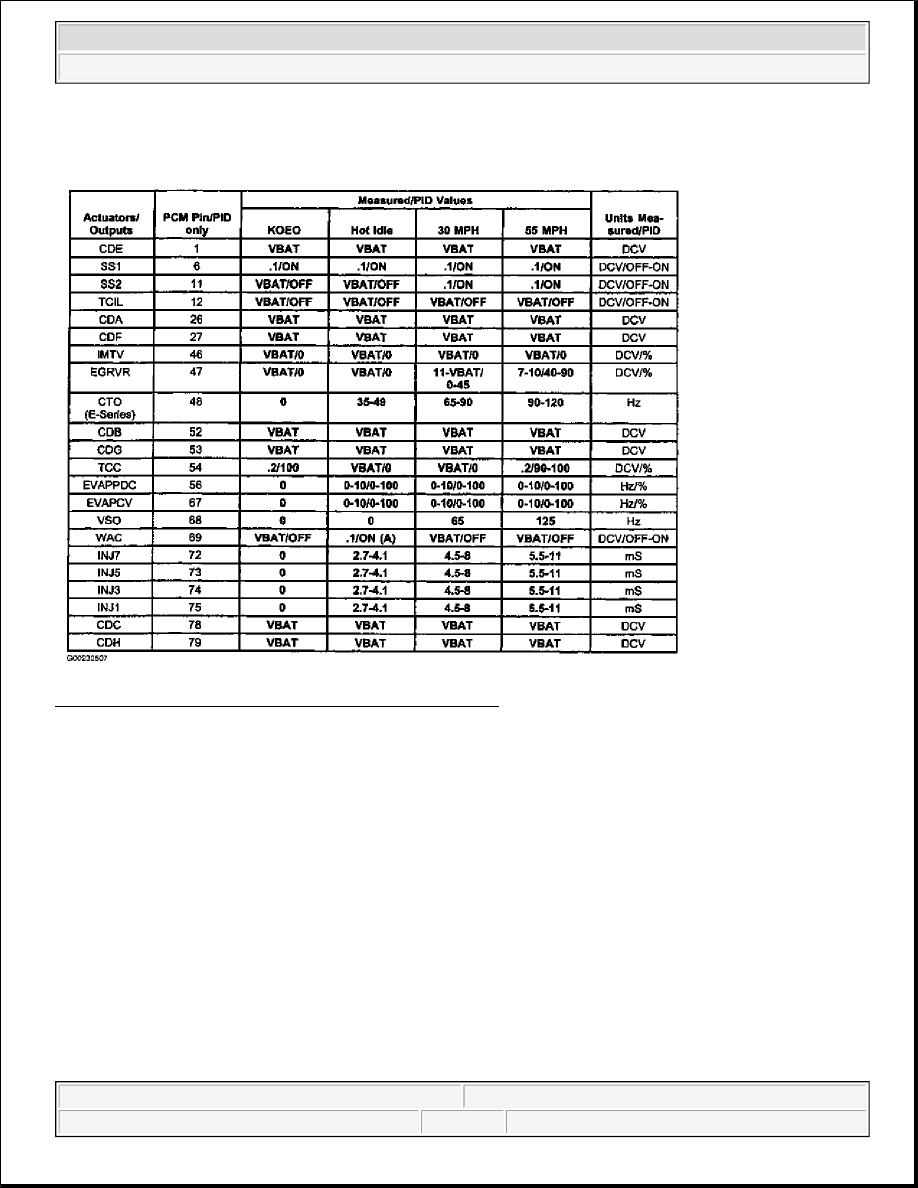

Fig. 25: 4.6L Econoline & Pickup (A/T) - Outputs (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

Fig. 26: 4.6L Econoline & Pickup (A/T) - Outputs (2 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 27: 4.6L Econoline & Pickup (A/T) - Other
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

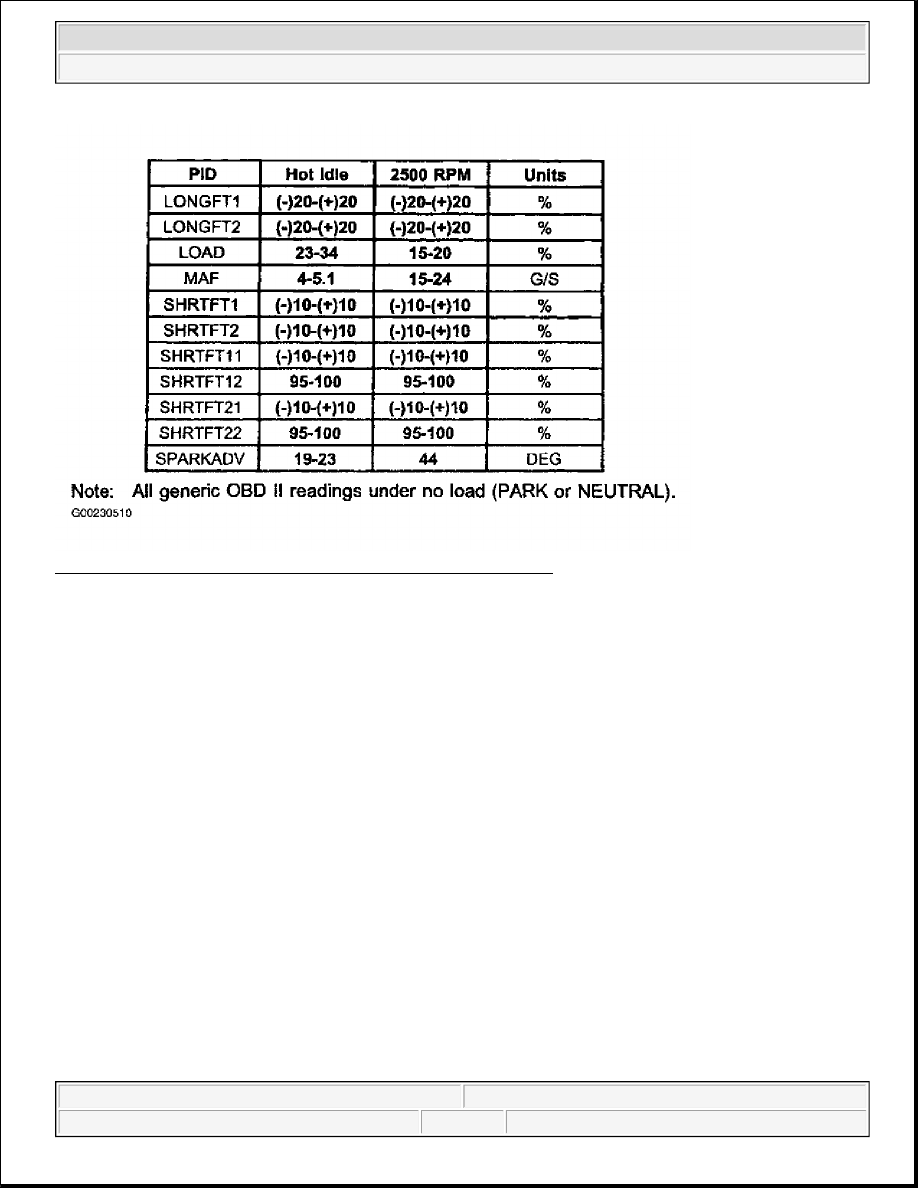

Fig. 28: 4.6L Econoline & Pickup (A/T) - Generic OBD-II Values
Courtesy of FORD MOTOR CO.

Typical Diagnostic Reference Value Charts - 4.6L Pickup (M/T)
