Fig. 93: Removing Fuel Line O-Rings
Courtesy of FORD MOTOR CO.

10. Disconnect the fuel pressure regulator coolant supply line.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

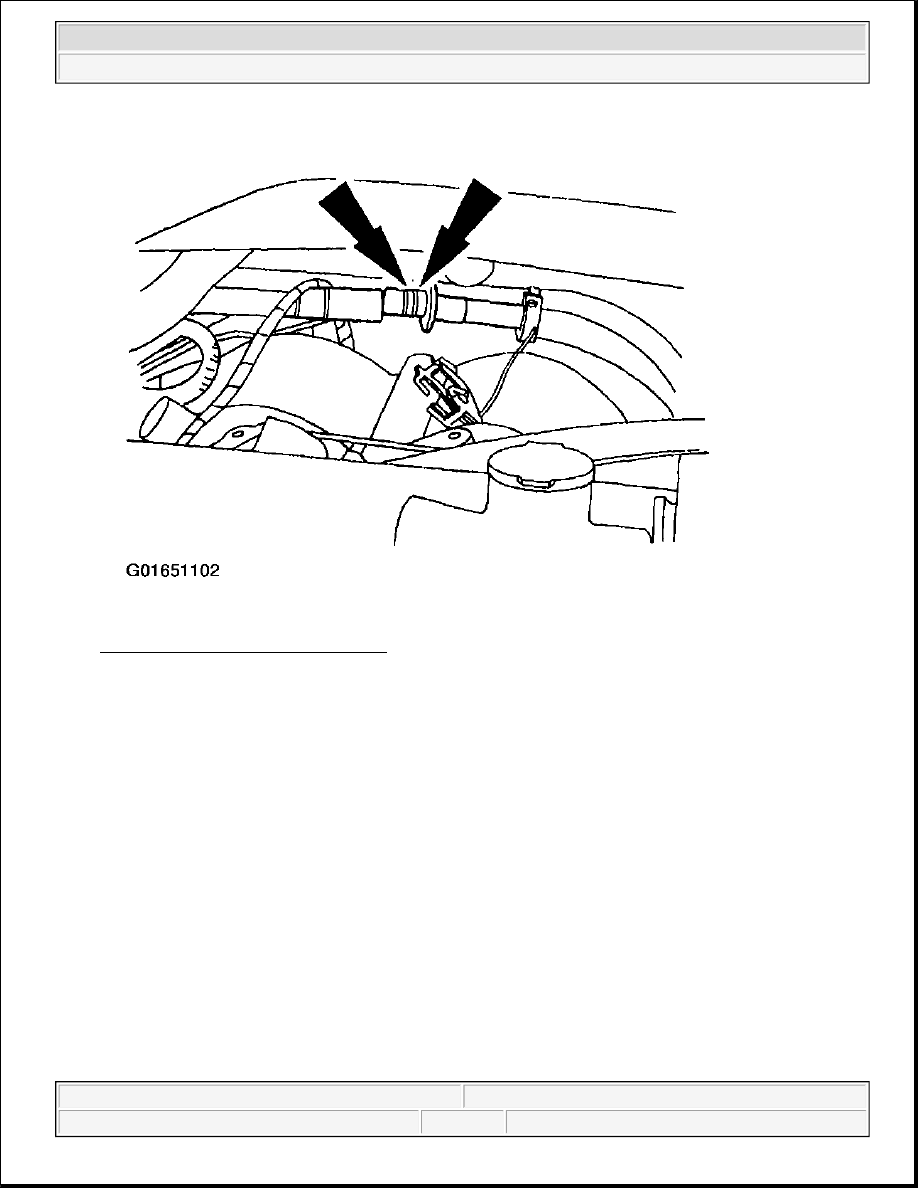

Fig. 94: Disconnecting Fuel Pressure Regulator Coolant Supply Line
Courtesy of FORD MOTOR CO.

11. Disconnect the fuel pressure regulator coolant return line.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

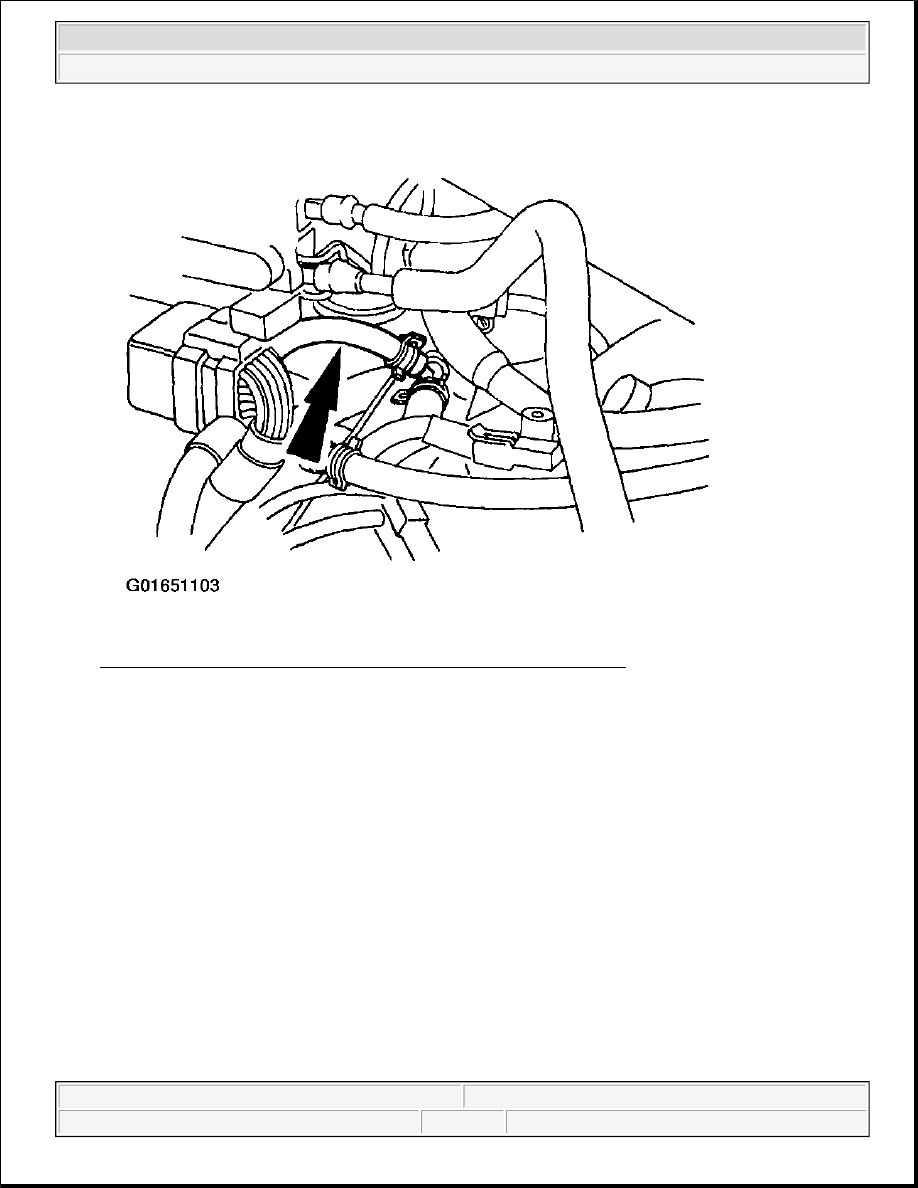

Fig. 95: Disconnecting Fuel Pressure Regulator Coolant Return Line
Courtesy of FORD MOTOR CO.

12. Remove the low-pressure fuel and fuel pressure regulator coolant line assembly.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

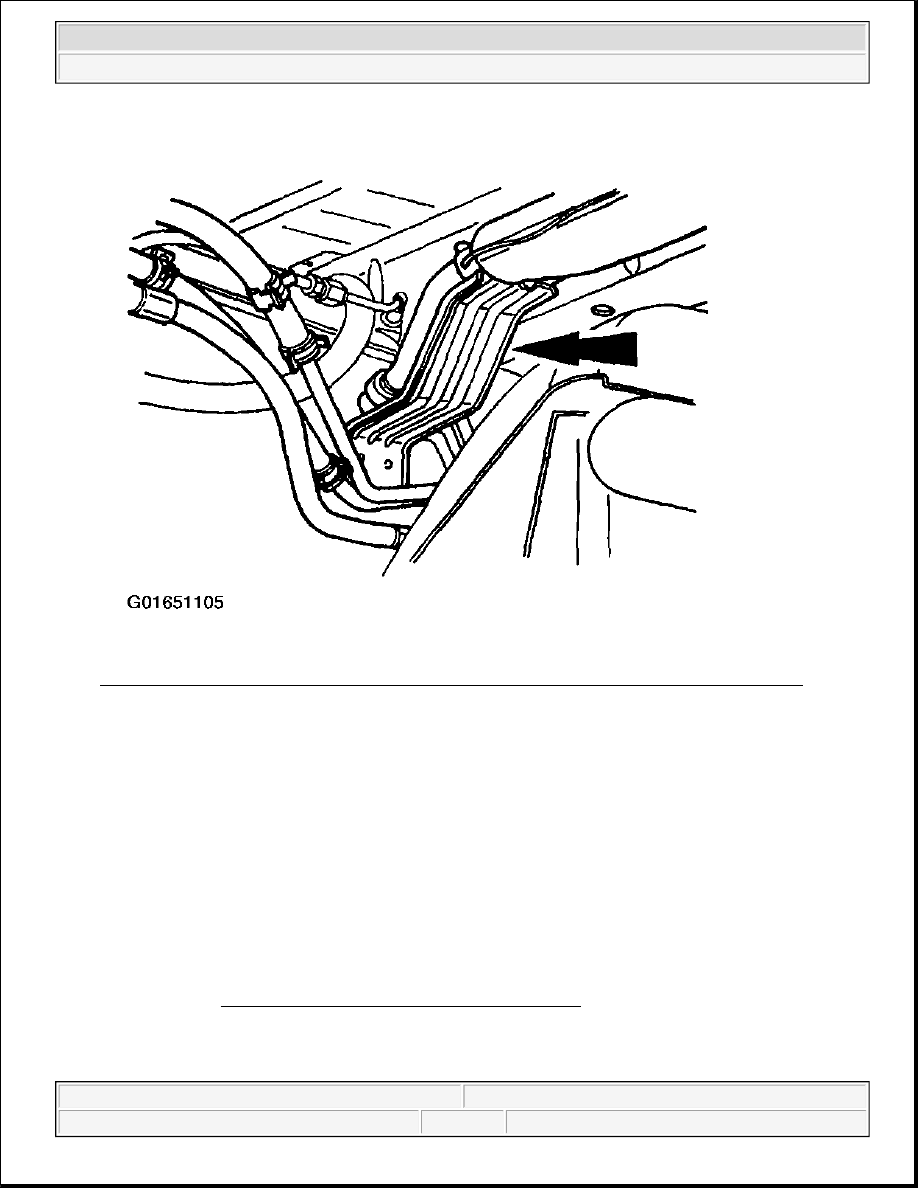

Fig. 96: Removing Low-Pressure Fuel And Fuel Pressure Regulator Coolant Line Assembly
Courtesy of FORD MOTOR CO.

Installation

NOTE:

Replace the fuel line O-ring seals.

NOTE:

Lubricate the fuel line O-ring seals with 5W3O engine oil meeting Ford
specification WSS-M2C153-G or equivalent prior to installation, to help
seal and ease the installation.

NOTE:

When tightening the fuel lines, a torque wrench adapter must be used with
the torque wrench. The use of a torque wrench adapter will alter the
effective torque of the torque wrench being used. To correct the effective
torque, a torque multiplication conversion must be used; Refer to
TORQUE MULTIPLICATION CONVERSION .
