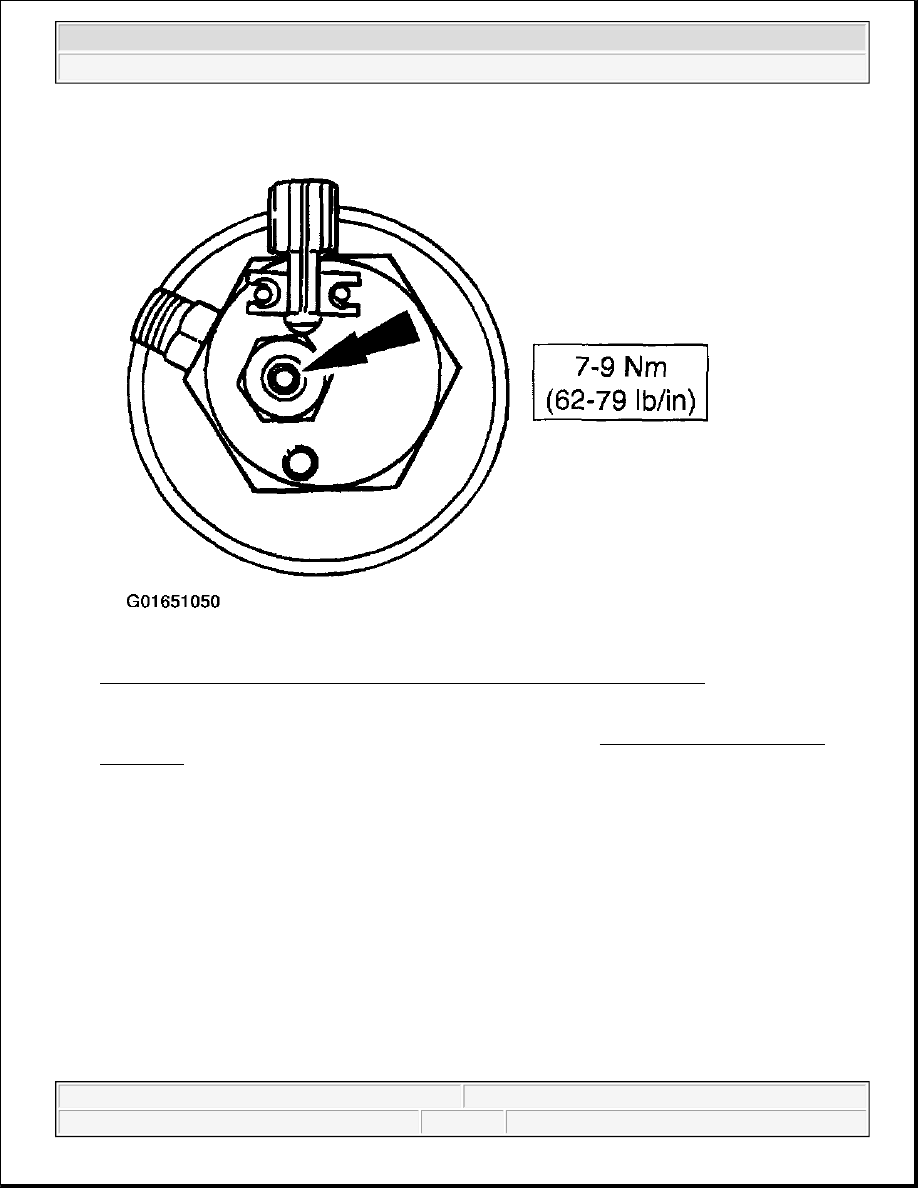

Fig. 41: Identifying Tightening Torque Of Instruction Lockdown Valve Jackscrew
Courtesy of FORD MOTOR CO.

2. Perform the Pressure Relief - Fuel Tank Venting procedure; Refer to FUEL SYSTEM PRESSURE

RELEASE .

3. Disconnect the battery ground cable.

4. Remove the in-bed tank assembly cover.

1. Remove the retaining bolts.

2. Remove the in-bed tank assembly cover.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

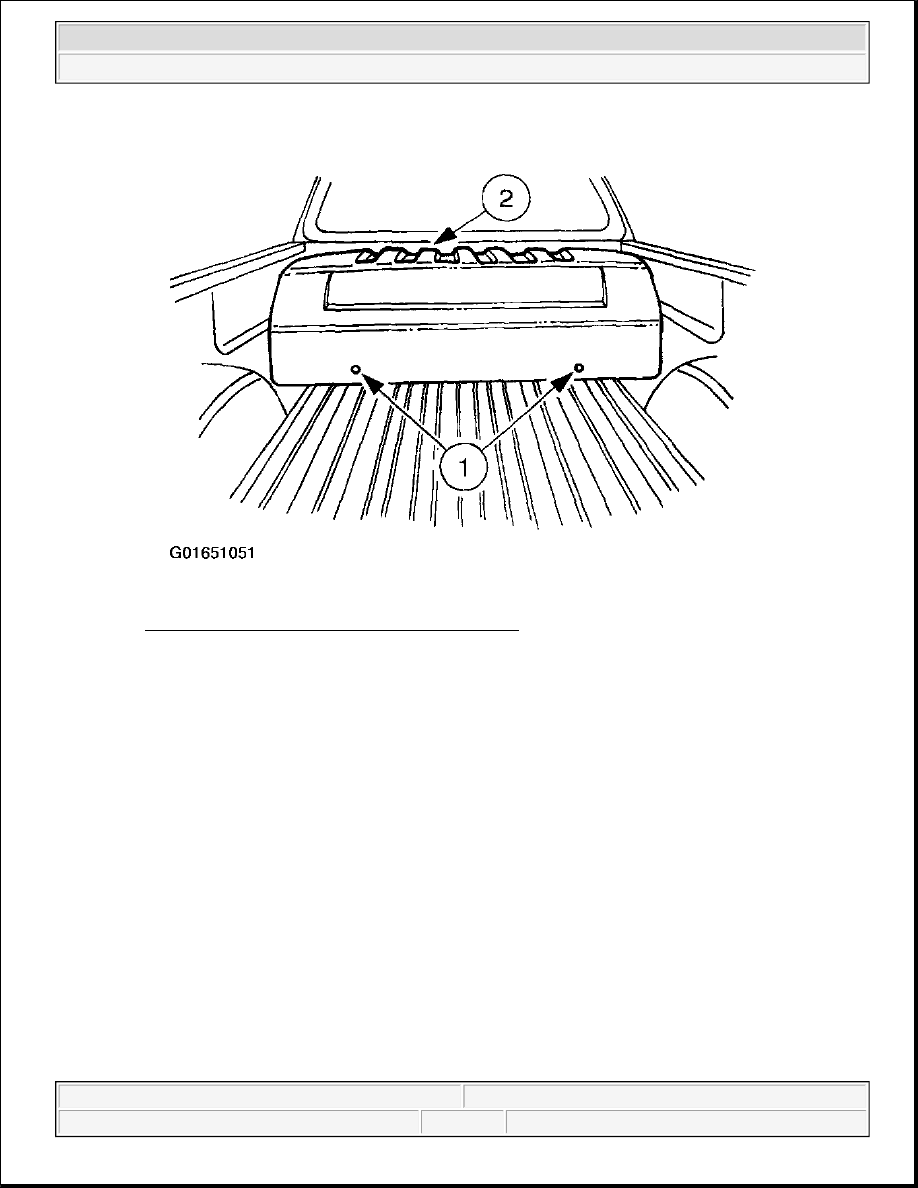

Fig. 42: Removing In-Bed Tank Assembly Cover
Courtesy of FORD MOTOR CO.

5. Disconnect the fuel tank assembly solenoid valves.

1. Disconnect the electrical connectors from the rear in-bed fuel tank solenoid valve.

2. Disconnect the jumper fuel line from the rear in-bed fuel tank solenoid valve.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

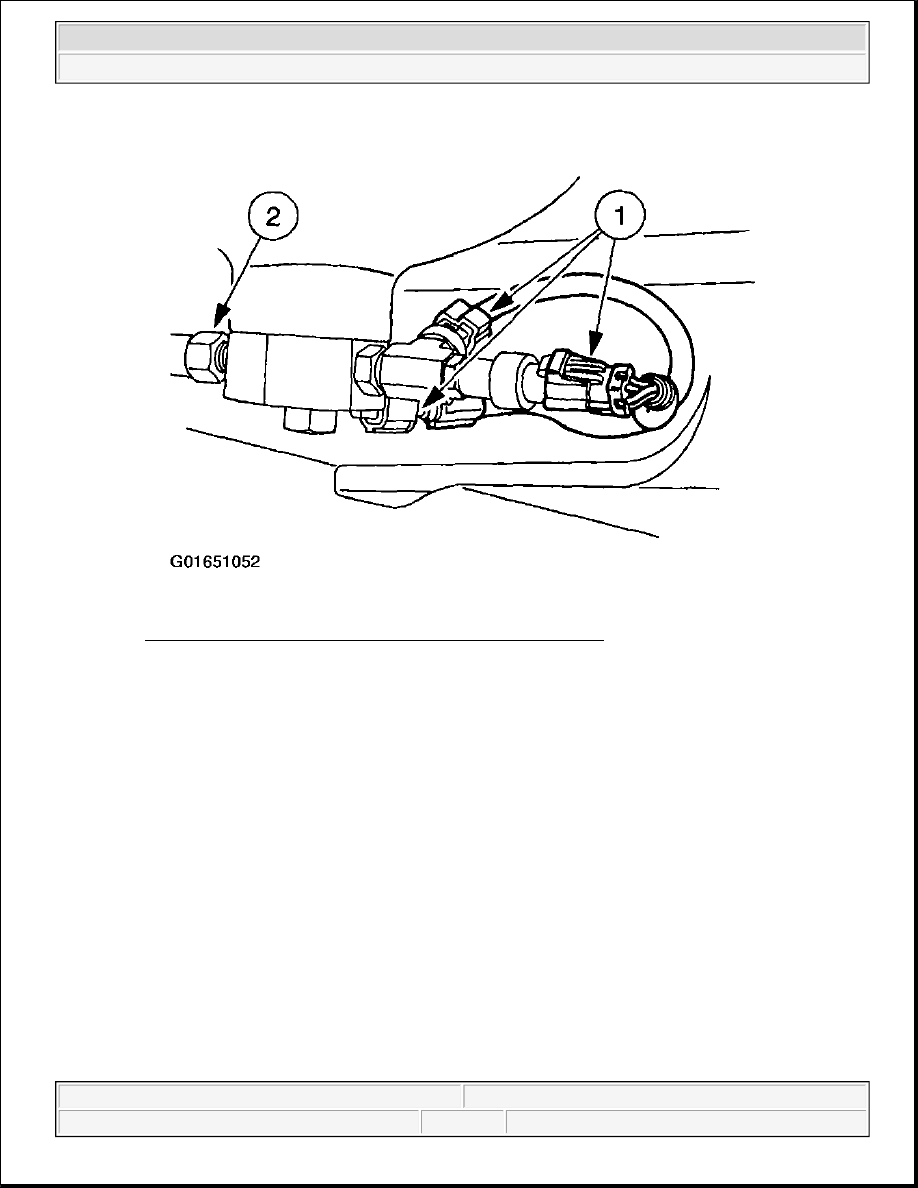

Fig. 43: Disconnecting Fuel Tank Assembly Solenoid Valves
Courtesy of FORD MOTOR CO.

6. Place identification marks on the upper in-bed fuel tank straps and tank.

7. Remove the upper in-bed fuel tank straps.

1. Remove the retaining bolts.

2. Remove the upper in-bed fuel tank straps.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

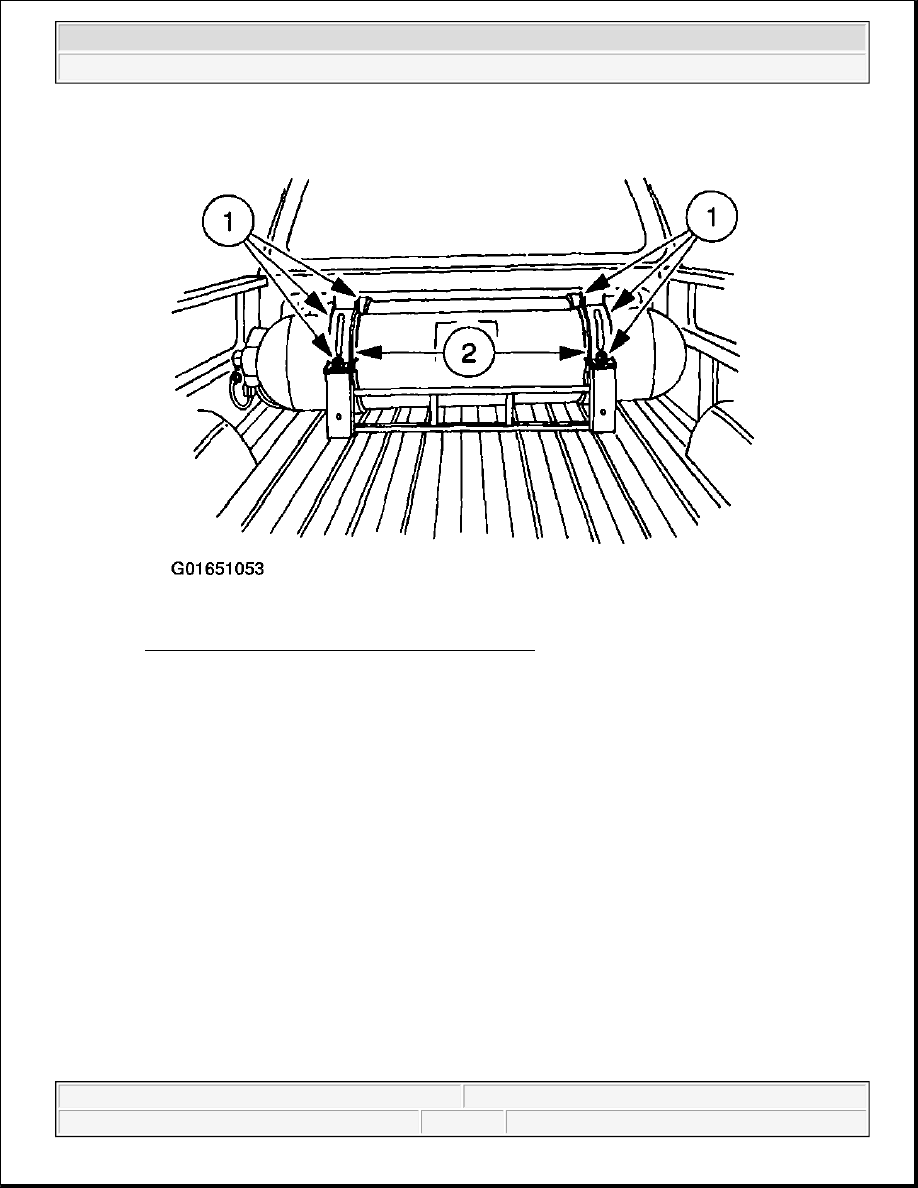

Fig. 44: Removing Upper In-Bed Fuel Tank Straps
Courtesy of FORD MOTOR CO.

8. Position the heavy duty floor crane, separator lift bar and endless lifting slings.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup
