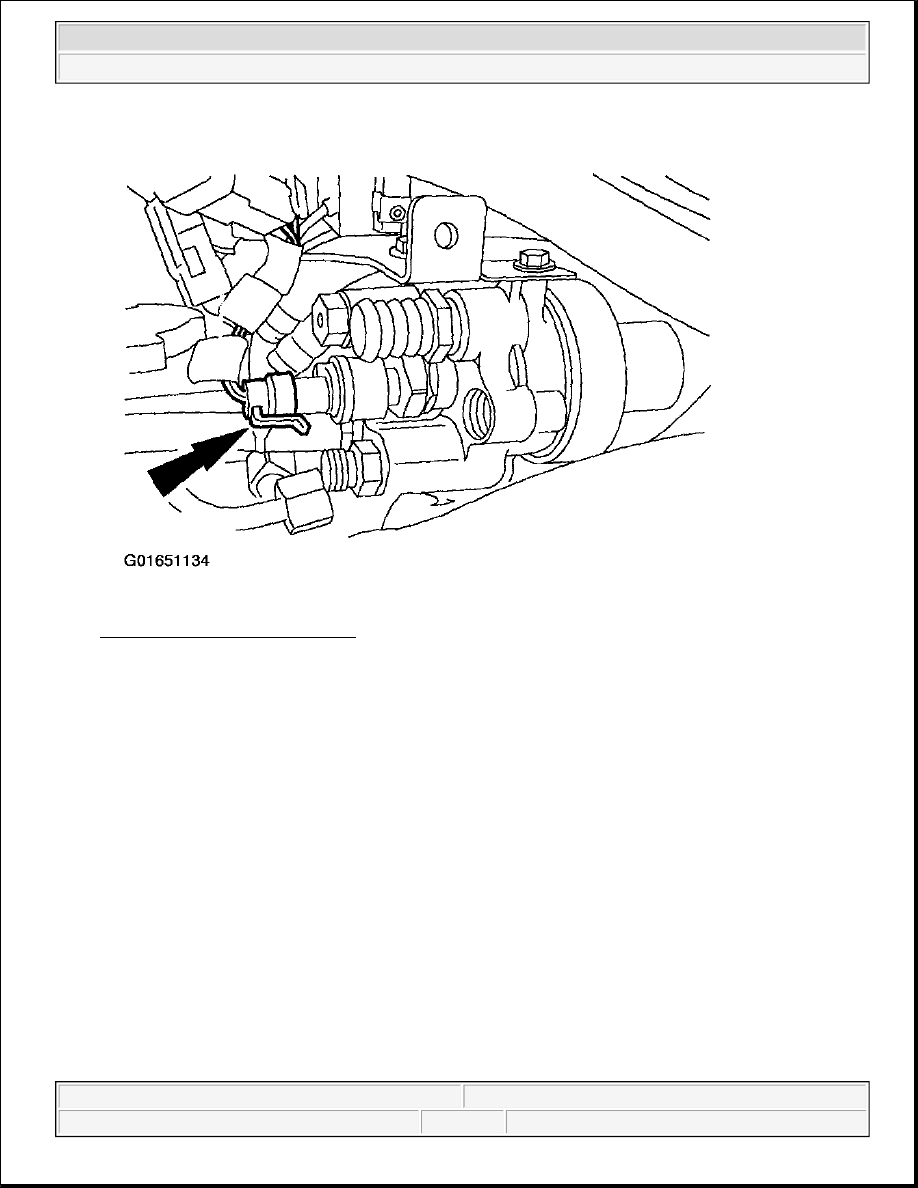

Fig. 22: Disconnecting Connector
Courtesy of FORD MOTOR CO.

7. Disconnect the coolant hoses.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Bi-Fuel - F150 Pickup

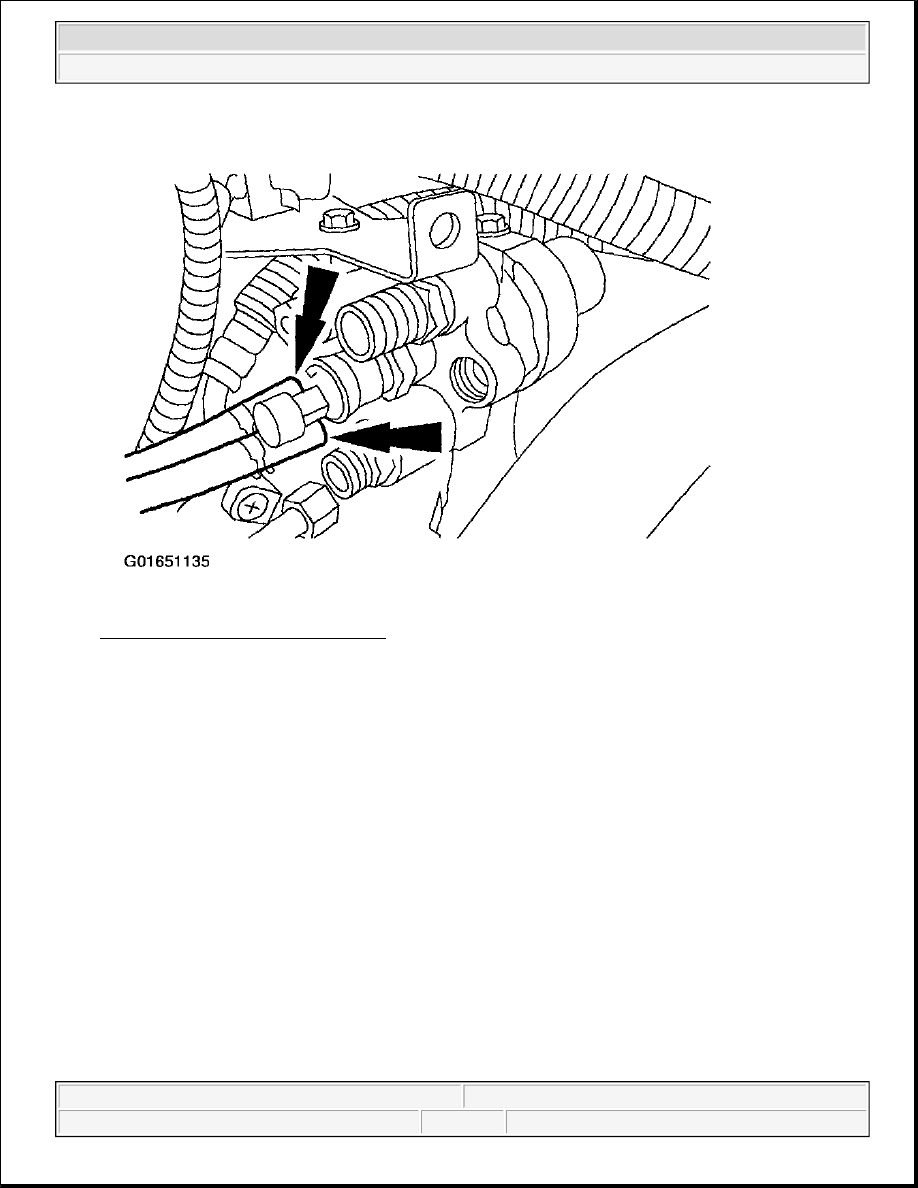

Fig. 23: Disconnecting Coolant Hoses
Courtesy of FORD MOTOR CO.

8. Remove the fuel pressure regulator.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Bi-Fuel - F150 Pickup



Fig. 24: Removing Fuel Pressure Regulator
Courtesy of FORD MOTOR CO.

9. To install, reverse the removal procedure.

FUEL TANK TEMPERATURE SENSOR - NATURAL GAS

Removal and Installation

1. Disconnect the electrical connector.

NOTE:

All fuel lines must be leak tested. Refer to LEAK TEST -- BI-FUEL
SYSTEM .



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Bi-Fuel - F150 Pickup



Fig. 25: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

2. Remove the fuel tank temperature sensor.

1. Remove the epoxy coating.

2. Remove the fuel tank temperature sensor.

CAUTION: Make sure not to increase the exposed metal surface area when

removing the epoxy coating.
