Ford F150 Pickup. Instruction - part 1179

2003 ENGINE

Fuel Tank And Lines-Bi-Fuel - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

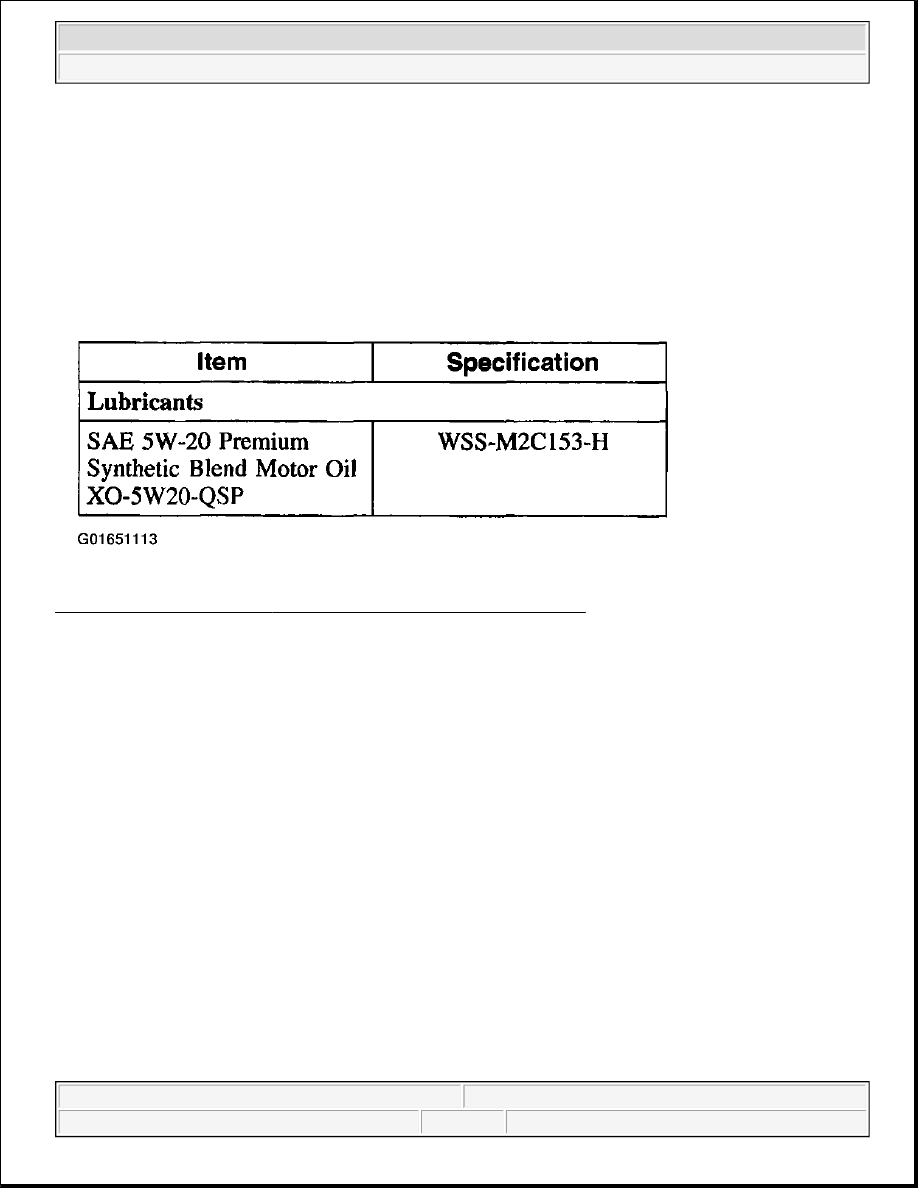

Fig. 1: Fuel Tank and Lines - Bi-Fuel Vehicles General Specifications
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Bi-Fuel - F150 Pickup





2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Bi-Fuel - F150 Pickup



Fig. 2: Fuel Tank And Lines - Bi-Fuel Vehicles Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Bi-Fuel - F150 Pickup





2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Bi-Fuel - F150 Pickup

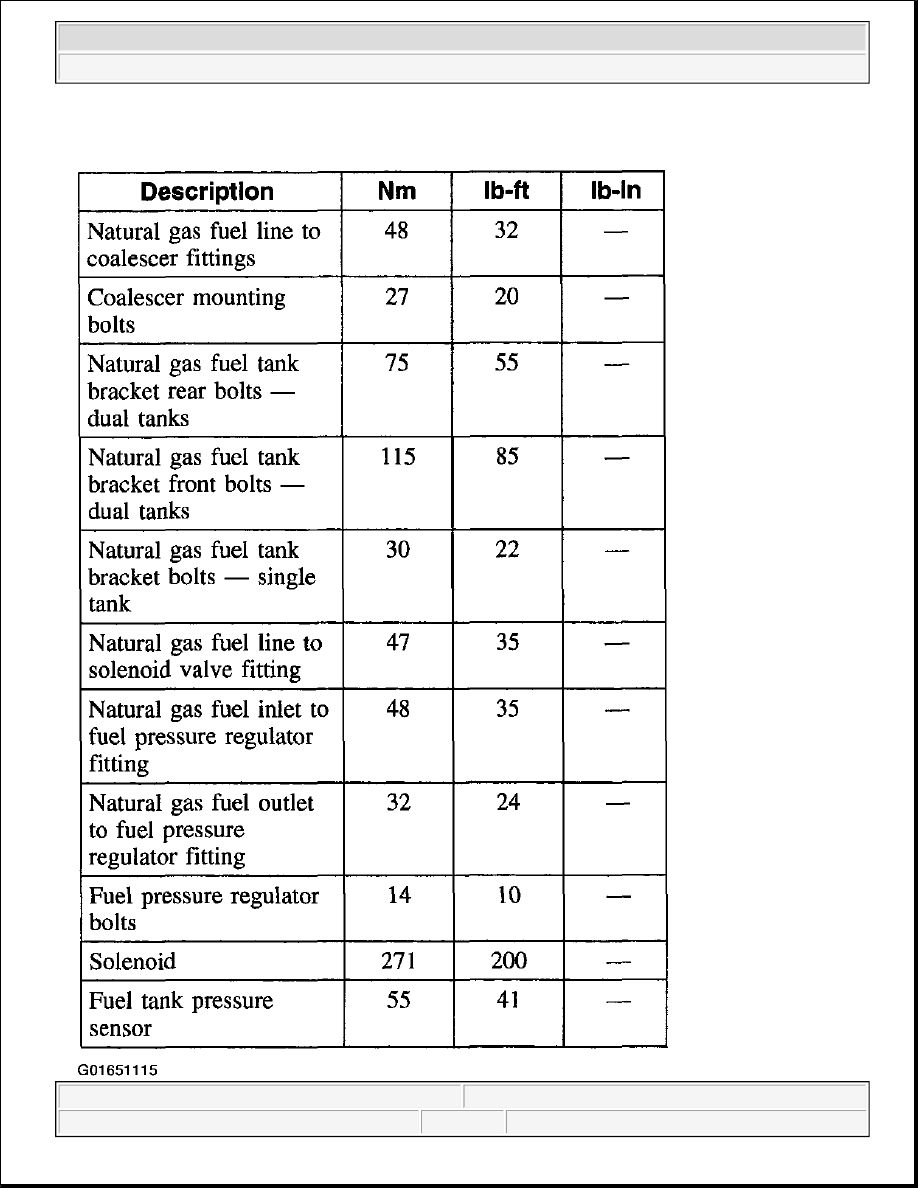

Fig. 3: Fuel Tank And Lines - Bi-Fuel Vehicles Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

FUEL TANK AND LINES

Liquid Propane Gas

The liquid propane gas fuel system consists of:

z

liquid propane fuel tanks

z

fuel fill valve

z

liquid fuel lines

z

inline fuel filter

z

related fuel lines

DIAGNOSIS AND TESTING

FUEL TANK AND LINES

Natural Gas

The natural gas fuel consists of:

z

natural gas fuel tanks

z

fuel fill valve

z

fuel pressure regulator

z

coalescer filter

z

related fuel lines

REMOVAL AND INSTALLATION

TANK - LIQUEFIED PETROLEUM GAS (LPG)

Removal and Installation

All Tank Configurations

WARNING:

Avoid inhaling propane gas or occupying confined areas containing
propane. Propane is heavier than air. The heavier gas can displace or
push fresh air out of an area. In large quantities, propane can displace
enough oxygen to make the surrounding air unfit to breathe and possibly
cause illness. If a person breathes propane gas or air that lacks oxygen
