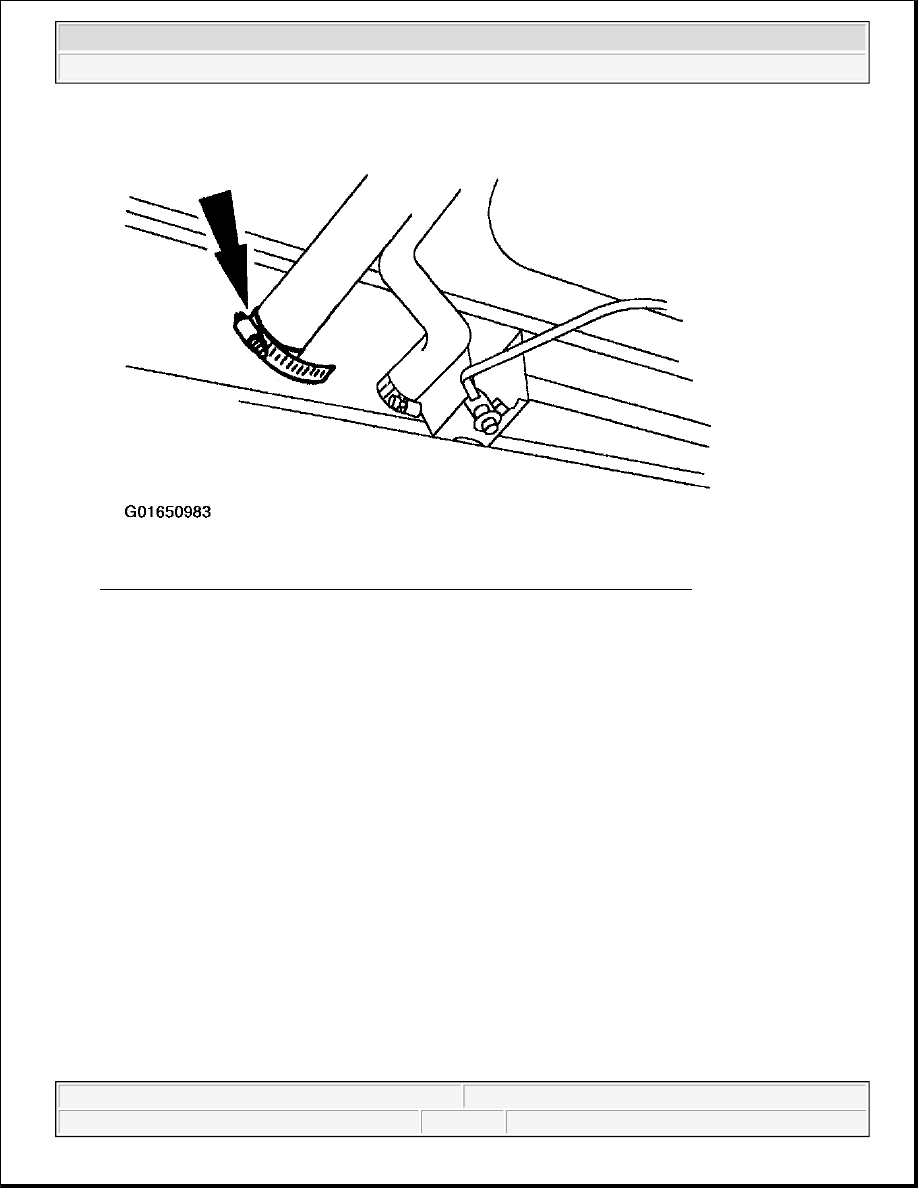

Fig. 17: Removing Hose Clamp On Fuel Tank Filler Pipe Support
Courtesy of FORD MOTOR CO.

6. Disconnect the fuel tank to filler pipe hose (9047) from the fuel tank.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



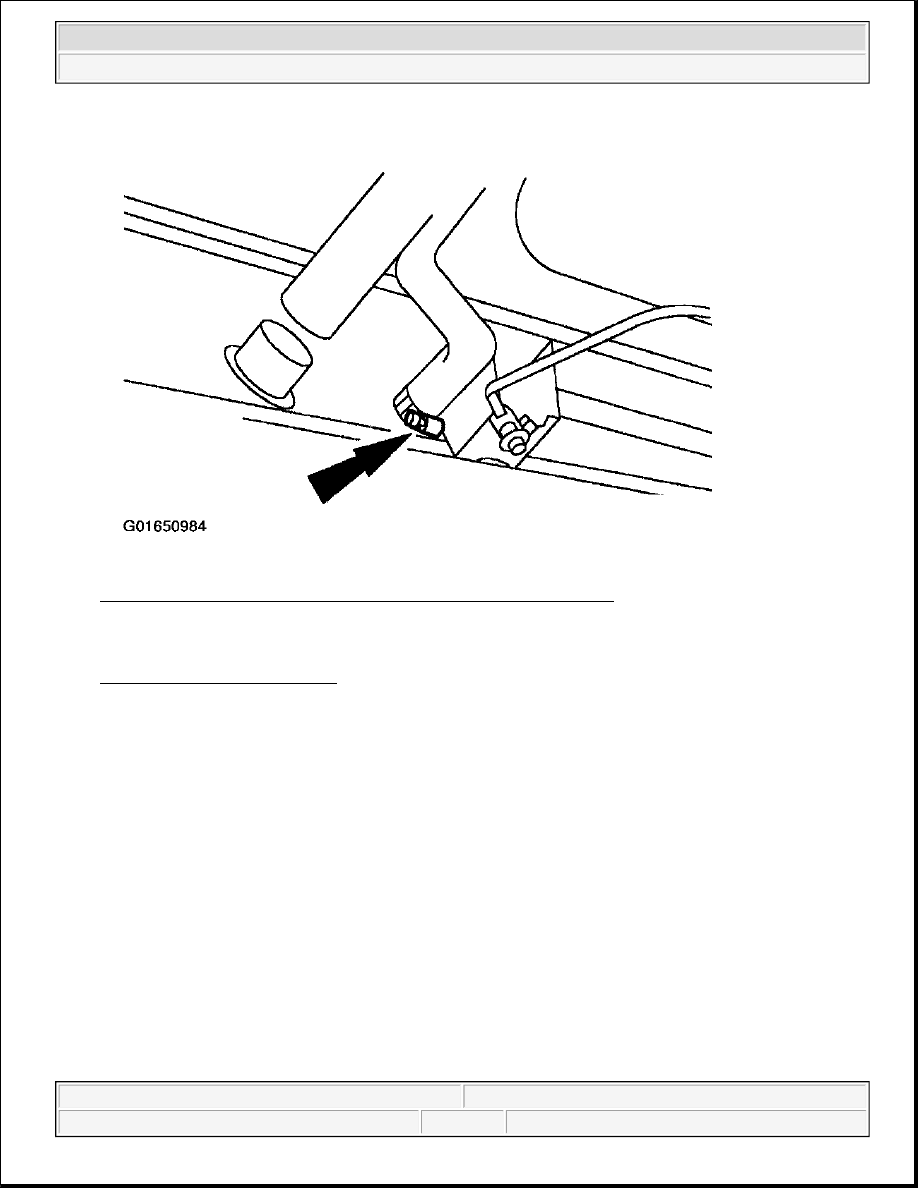

Fig. 18: Disconnecting Fuel Tank To Filler Pipe Hose (9047) From Fuel Tank
Courtesy of FORD MOTOR CO.

7. Disconnect the fuel tank filler pipe vent hose from the fuel tank.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



Fig. 19: Disconnecting fuel tank filler pipe vent hose from fuel tank
Courtesy of FORD MOTOR CO.

8. Use the Fuel Line Disconnect Tool to disconnect the fuel lines from the fuel pump (9350). Refer to

SPRING LOCK COUPLINGS .



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines - F150 Pickup



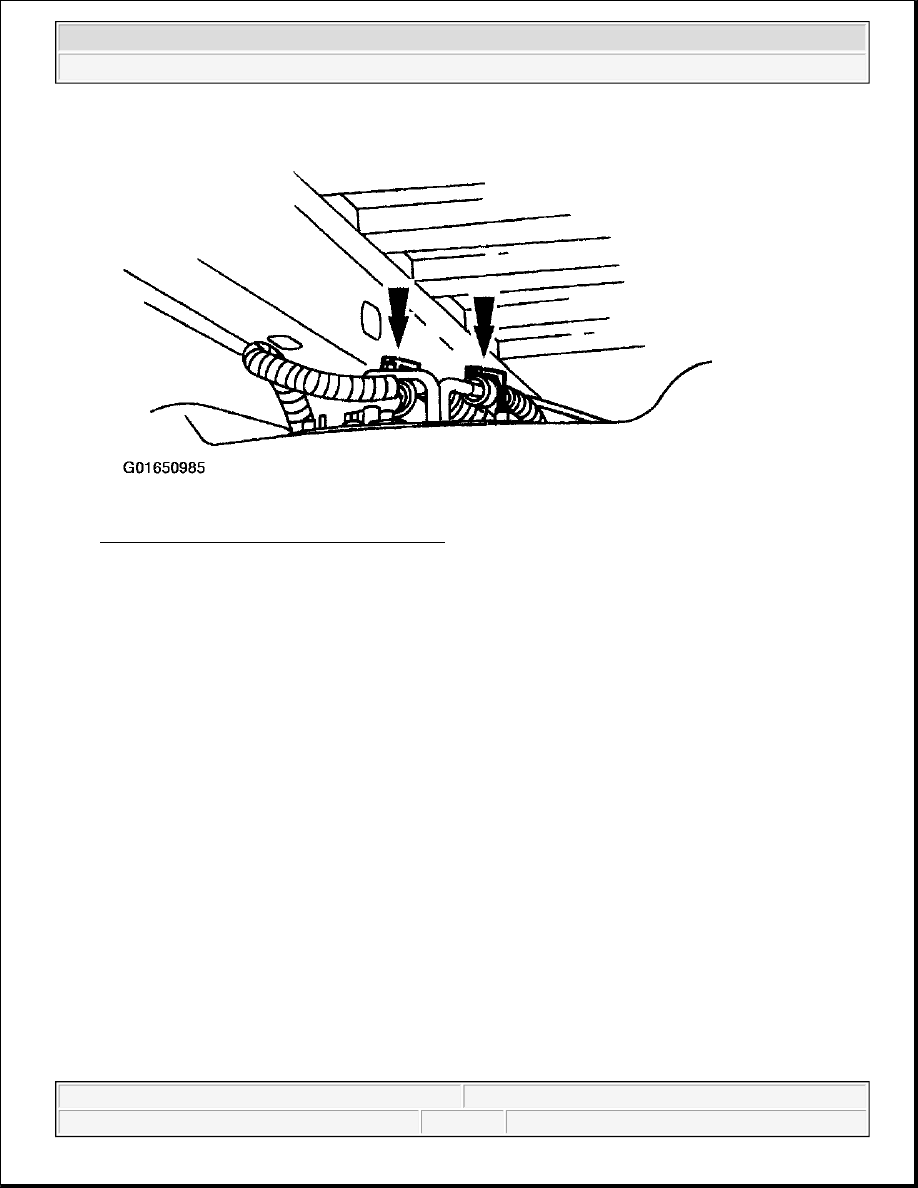

Fig. 20: Identifying Fuel Lines At Fuel Pump
Courtesy of FORD MOTOR CO.

9. Disconnect the fuel tank front connections.

z

Disconnect the evaporative emission (EVAP) hose (A).

z

Disconnect the fuel tank pressure transducer electrical connector (B).
